AFAM chain kit for SYM Wolf SB250Ni 13-16 520 MR2G chain kit

AFAM chain kit for SYM Wolf SB250Ni 13-16 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for SYM Wolf SB250Ni PD25A 2013-2016

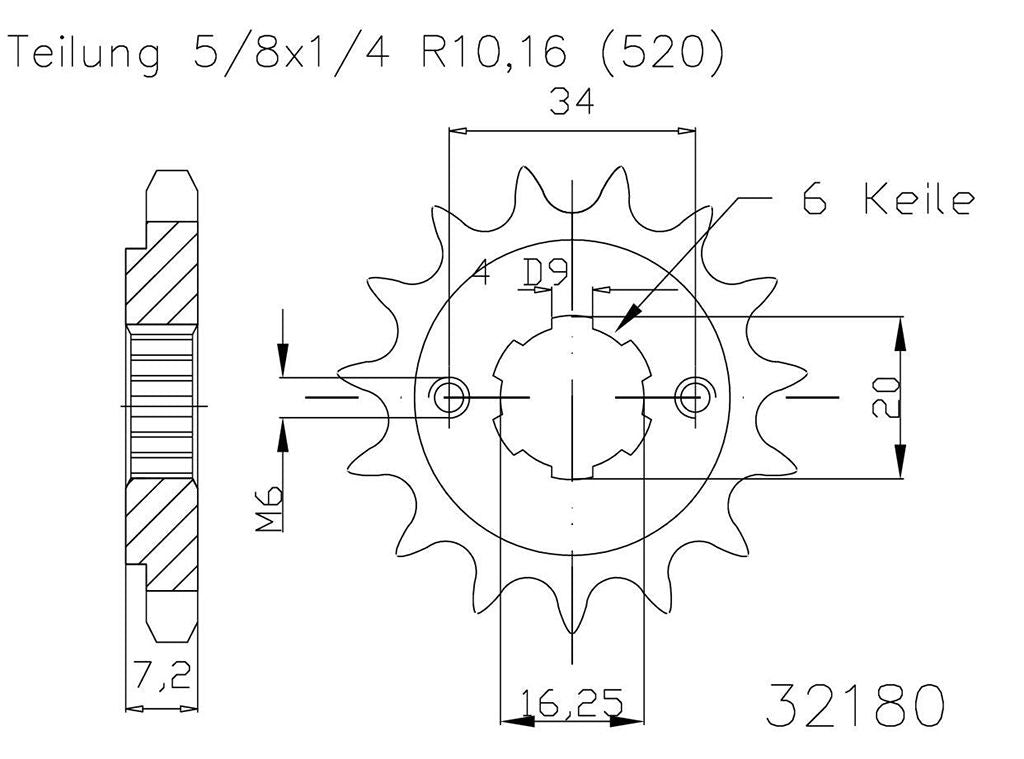

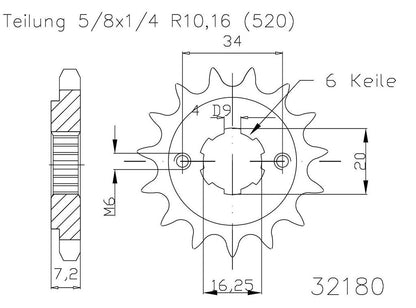

• Front sprocket: Esjot sprocket #520 13 teeth - e5032180.13
• Chain: AFAM chain 520 MR2-G with clip link - a520mr2.g.102

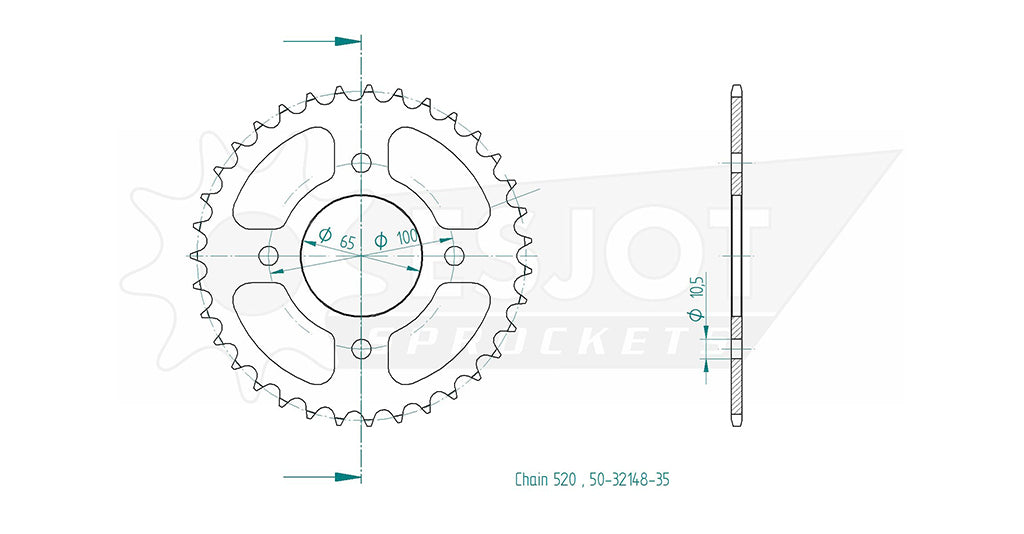

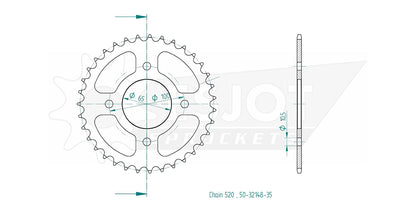

• Rear sprocket: Esjot rear sprocket STEEL #520 35 teeth - e5032148.35
• Gear ratio sprocket-chain-rear sprocket: 13-102-35

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51071

Suitable for

SYM 126 - 250 cc Wolf SB250Ni PD25A 2013
SYM 126 - 250 cc Wolf SB250Ni PD25A 2014
SYM 126 - 250 cc Wolf SB250Ni PD25A 2015
SYM 126 - 250 cc Wolf SB250Ni PD25A 2016
