AFAM chain kit for TGB Target 325 08-09 520 XLR2 chain kit

AFAM chain kit for TGB Target 325 08-09 520 XLR2 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit TGB Target 325 2008-2009

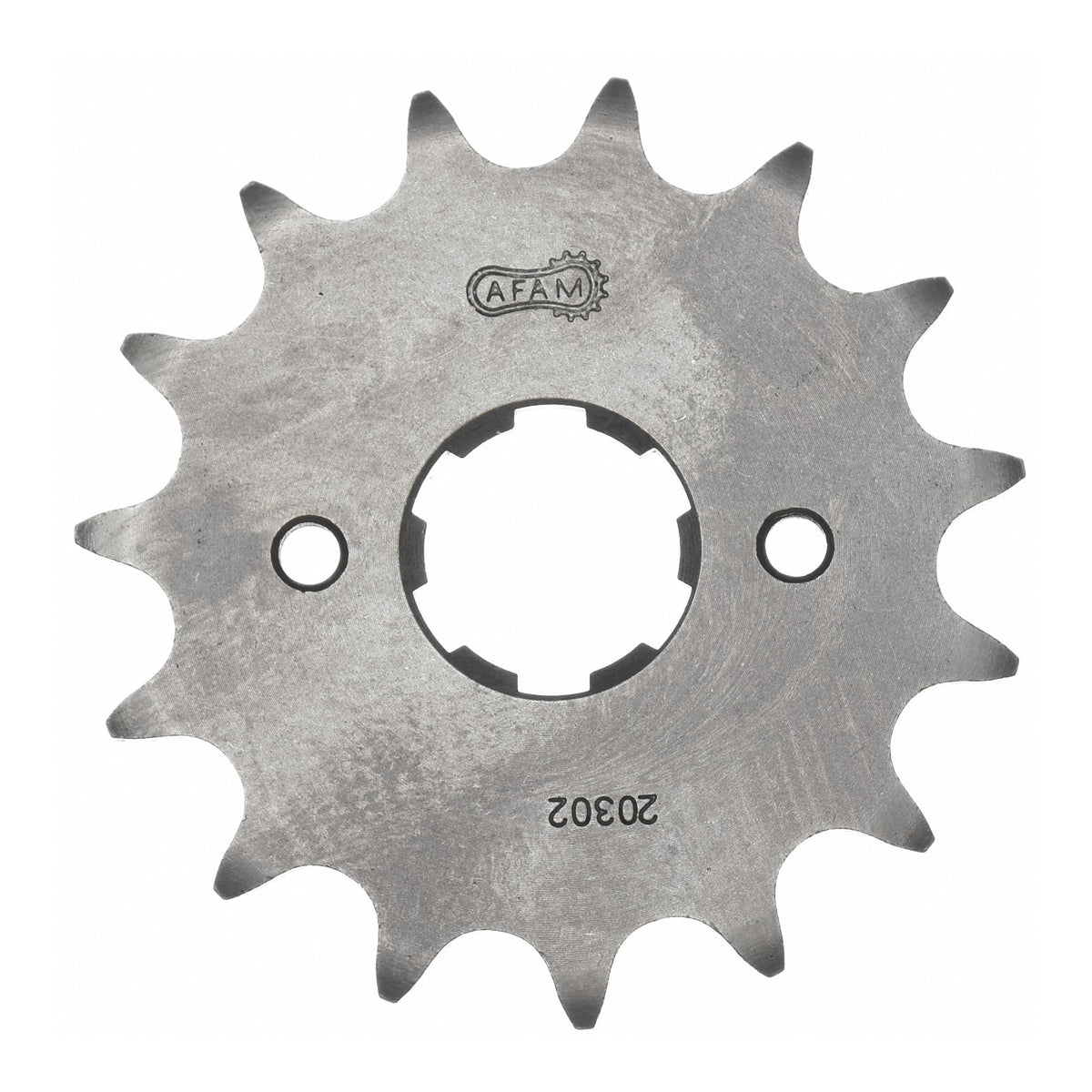

• Sprocket: AFAM sprocket #520 15 teeth - a20302.15
• Chain: AFAM chain 520 XLR2 Xs-ring 92 with rivet link - a520xlr2.92

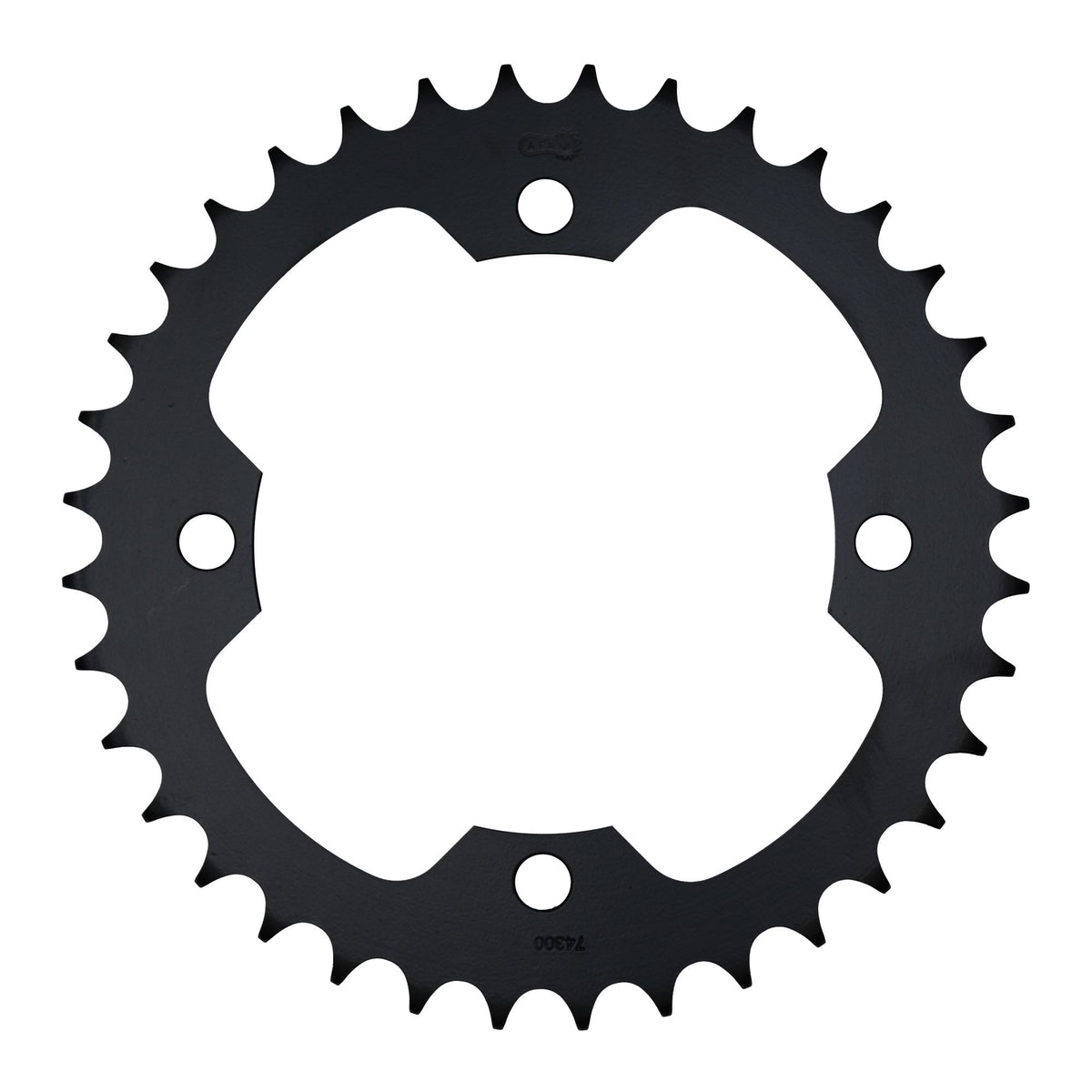

• Rear sprocket: AFAM rear sprocket STEEL #520 36 teeth - a74300.36
• Transmission ratio sprocket-chain-rear sprocket: 15-92-36

AFAM 520 XLR2

Standard chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 400 cc / road and off-road

Technical data:
Pitch: 520
Pin length: 19.90 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 33.00 kN
Weight per 100 links: 1.66 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-48842

Fits

TGB 251 - 500 cc Target 325 2008
TGB 251 - 500 cc Target 325 2009
