AFAM chain kit for tm Racing EN 450 FES 05-09 520 XSRG chain kit

AFAM chain kit for tm Racing EN 450 FES 05-09 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit tm Racing EN 450 FES 2005-2009

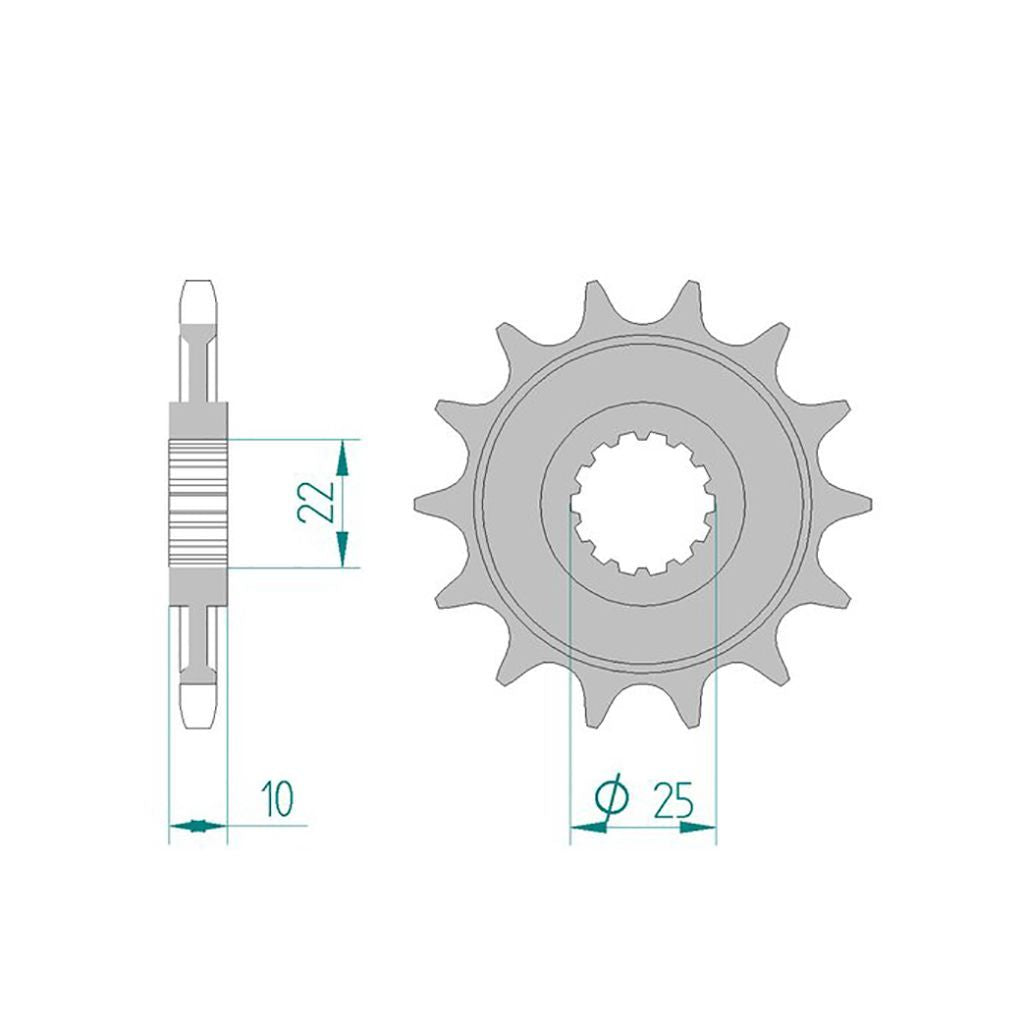

• Sprocket: AFAM sprocket #520 13 teeth - a94312.13
• Chain: AFAM chain 520 XSR-G Xs-ring 116 with rivet link - a520xsr.g.116
• Rear sprocket: AFAM rear sprocket ALU #520 for TM 51 teeth - a93314.51
• Gear ratio sprocket-chain-rear sprocket: 13-116-51

AFAM 520 XSR-G

Super-reinforced chain with smooth-running properties
Xs-ring chain
Colour: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-16497

Suitable for

tm Racing 251 - 500 cc EN 450 FES 2005
tm Racing 251 - 500 cc EN 450 FES 2006
tm Racing 251 - 500 cc EN 450 FES 2007
tm Racing 251 - 500 cc EN 450 FES 2008
tm Racing 251 - 500 cc EN 450 FES 2009
