AFAM chain kit for Triumph America 865 2007 525 XSR2G chain kit

AFAM chain kit for Triumph America 865 2007 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph America 865 986MK 2007-2007

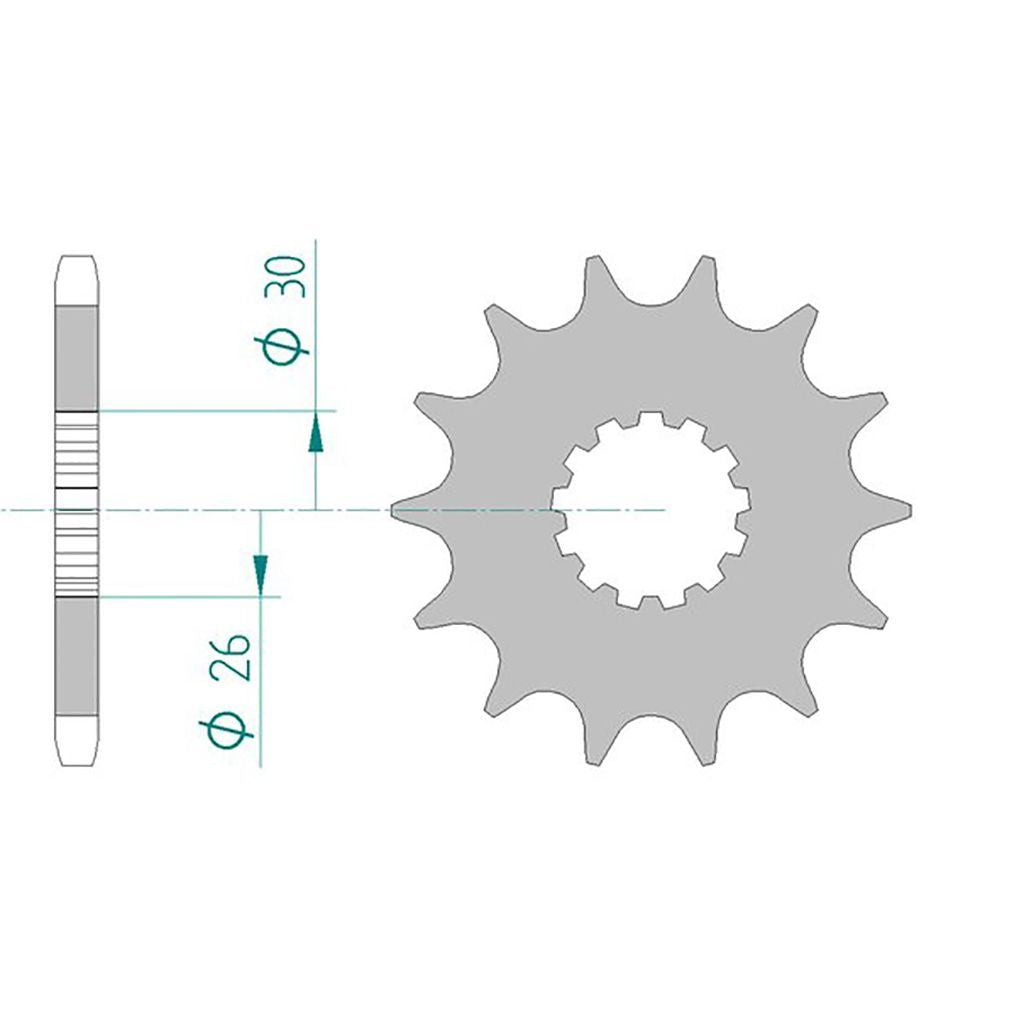

• Front sprocket: AFAM sprocket #525 TRI 800/865 17 teeth - a88600.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 112 with rivet link - a525xsr2.g.112

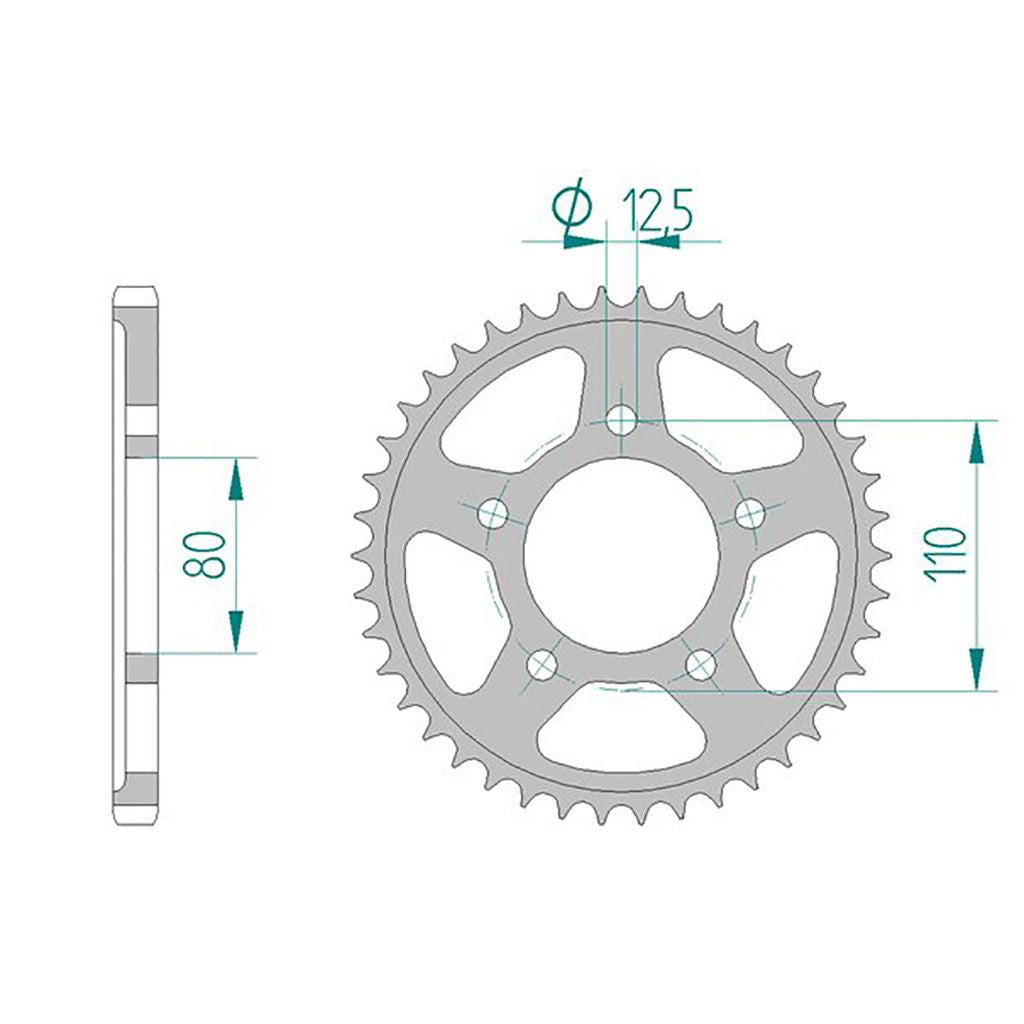

• Rear sprocket: AFAM steel rear sprocket #525 42 teeth - a86604.42
• Transmission ratio sprocket-chain-rear sprocket: 17-112-42

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The use of the brand name is solely for the purpose of indicating compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-37953

Suitable for

Triumph 751 - 1000 cc America 865 986MK 2007
