AFAM chain kit for Triumph America 865 2017 520 XSRG chain kit

AFAM Chain kit for Triumph America 865 2017 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Triumph America 865 986MK2 2017-2017

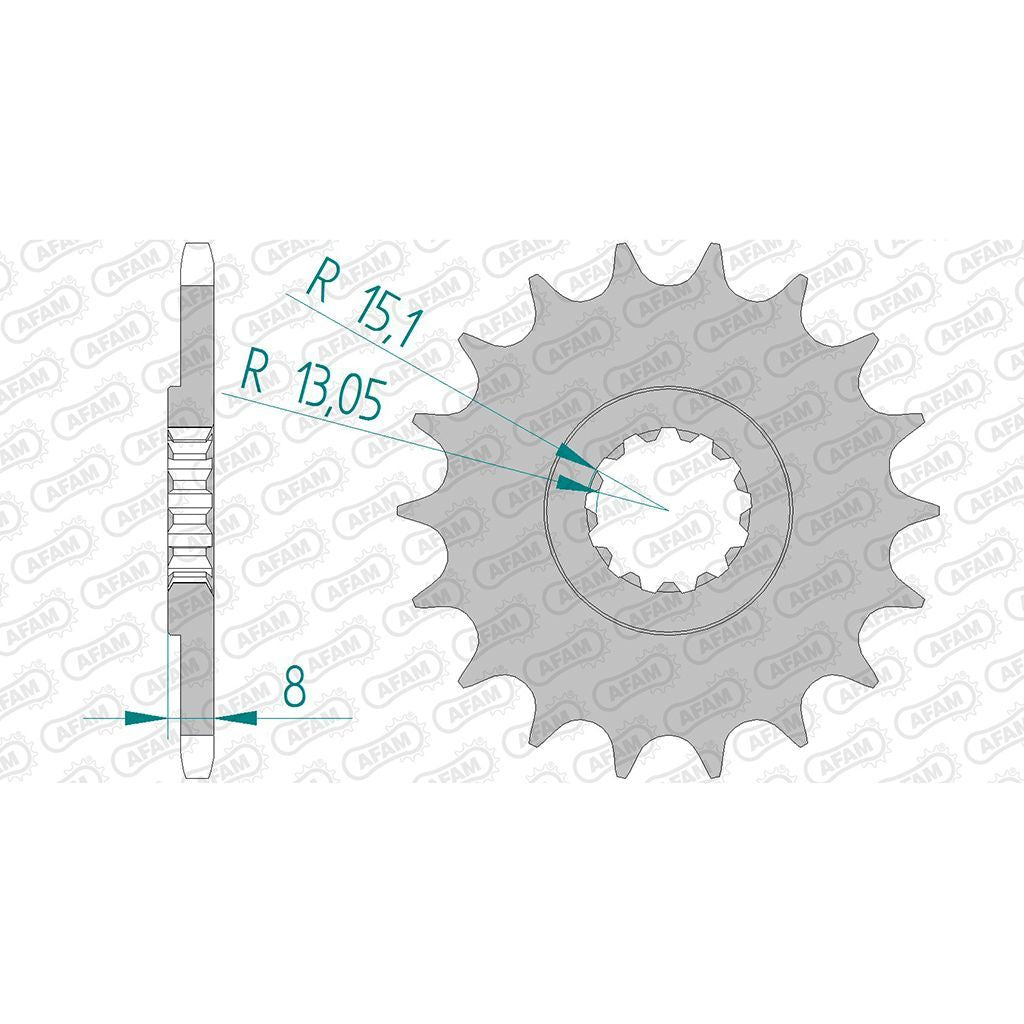

• Front sprocket: AFAM front sprocket #520 18 teeth - a88802.18
• Chain: AFAM chain 520 XSR-G Xs-Ring 112 with rivet link - a520xsr.g.112

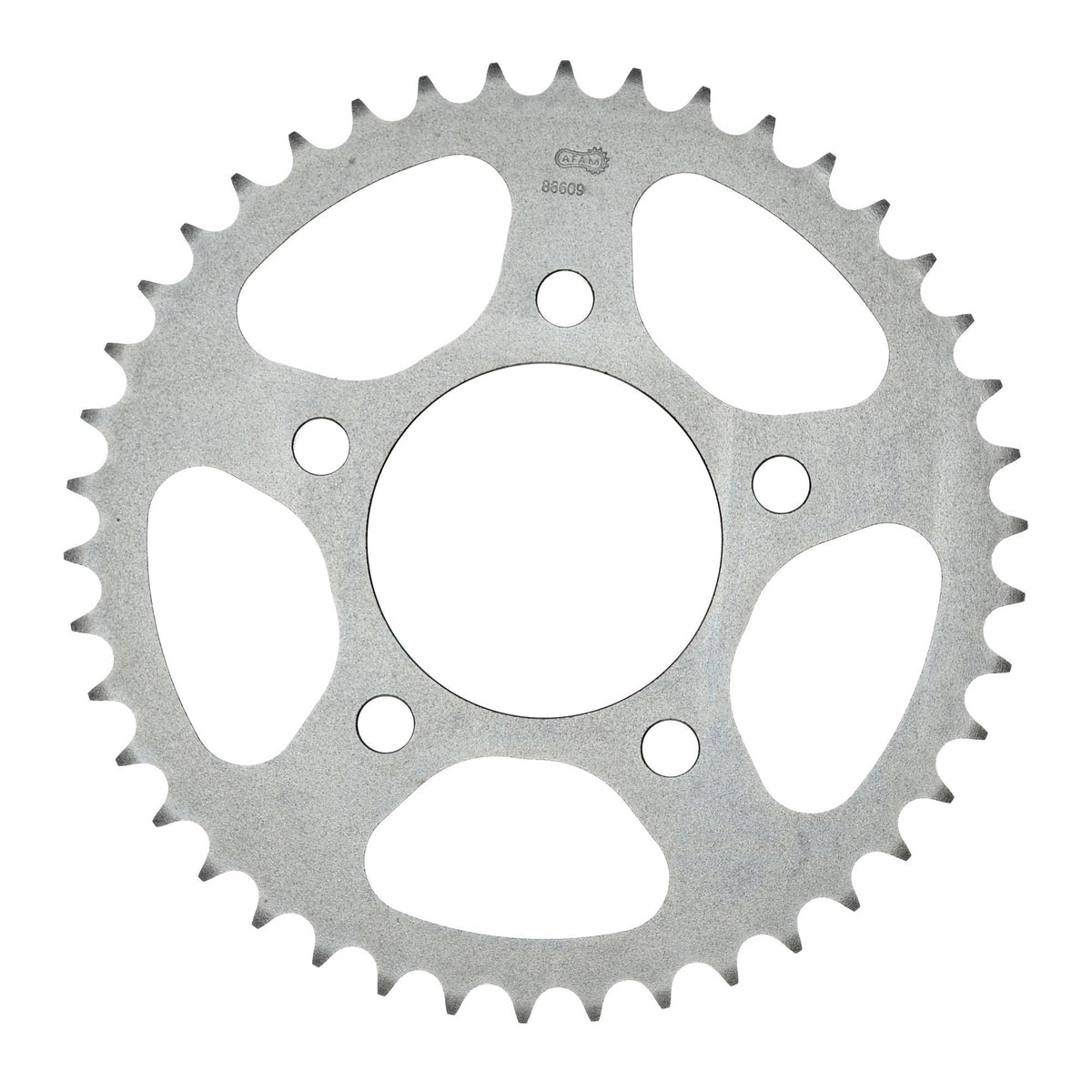

• Rear sprocket: AFAM rear sprocket STEEL #520 42 teeth - a86609.42
• Transmission ratio front sprocket-chain-rear sprocket: 18-112-42

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by engine displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51244

Suitable for

Triumph 751 - 1000 cc America 865 986MK2 2017
