AFAM chain kit for Triumph America 865 LT 2014 525 XSR2G chain kit

AFAM Chain Kit for Triumph America 865 LT 2014 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer name is for compatibility reference only!

Components of the chain kit Triumph America 865 LT 986MK2 2014-2014

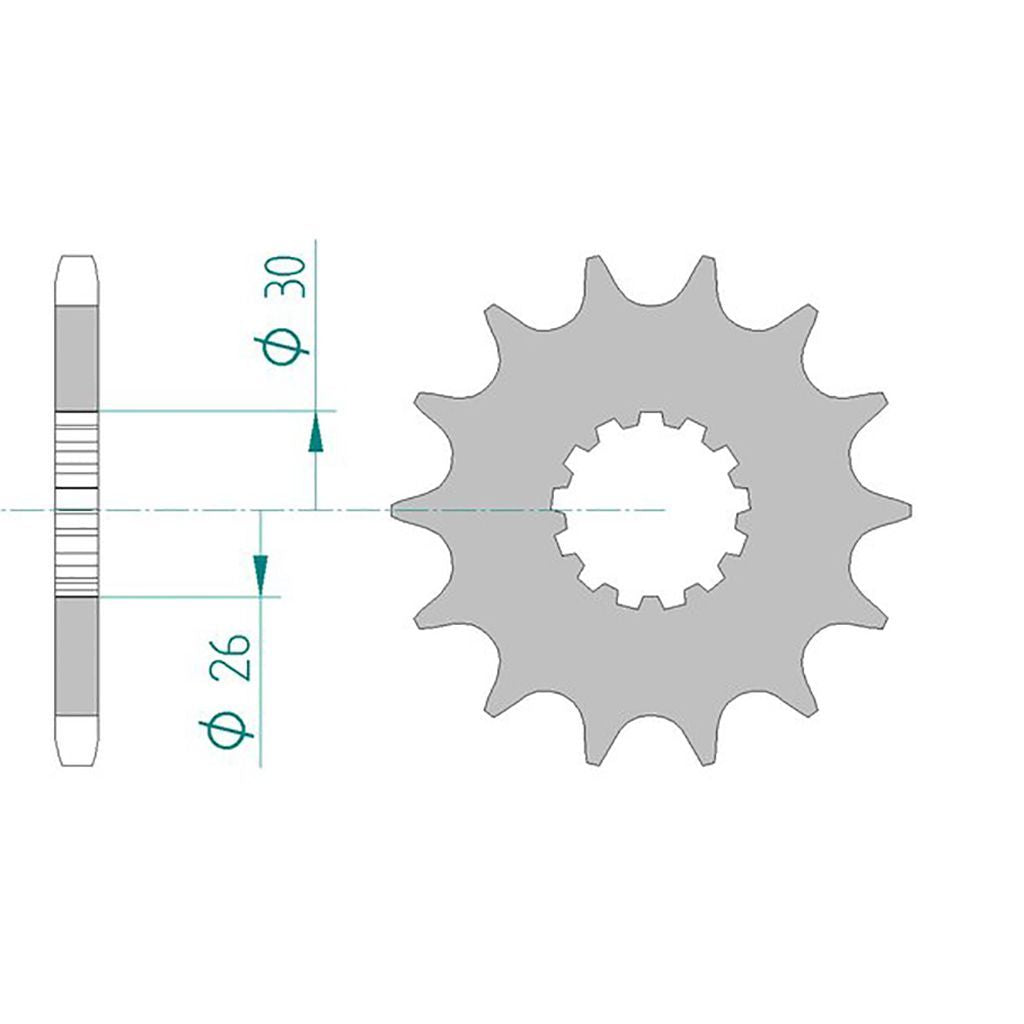

• Front sprocket: AFAM front sprocket #525 TRI 800/865 17 teeth - a88600.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 112 with rivet link - a525xsr2.g.112

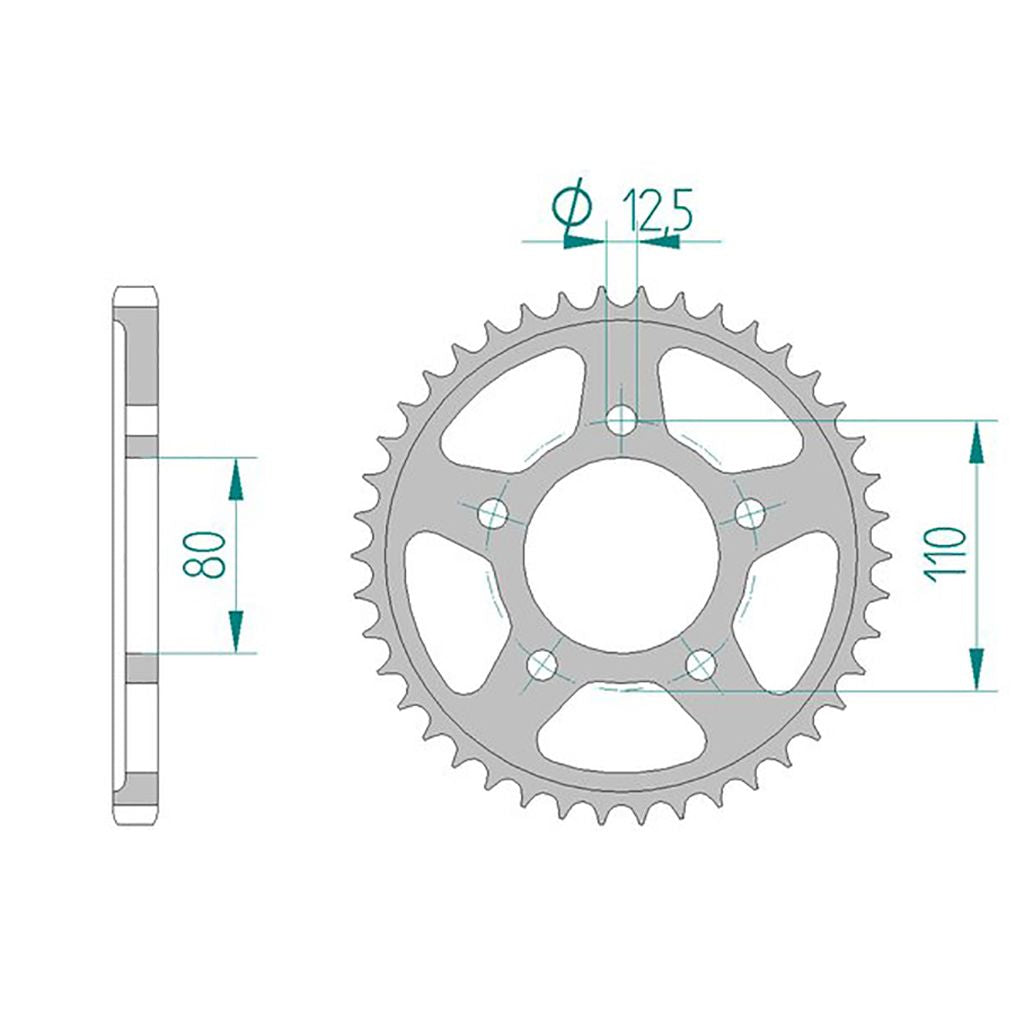

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a86604.42
• Gear ratio front sprocket-chain-rear sprocket: 17-112-42

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-51247

Fits

Triumph 751 - 1000 cc America 865 LT 986MK2 2014
