AFAM chain kit for Triumph America 865 LT 2015 520 XHR2G chain kit

AFAM Chain Kit for Triumph America 865 LT 2015 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Triumph America 865 LT 986MK2 2015-2015 check vehicle series with 520 chain pitch

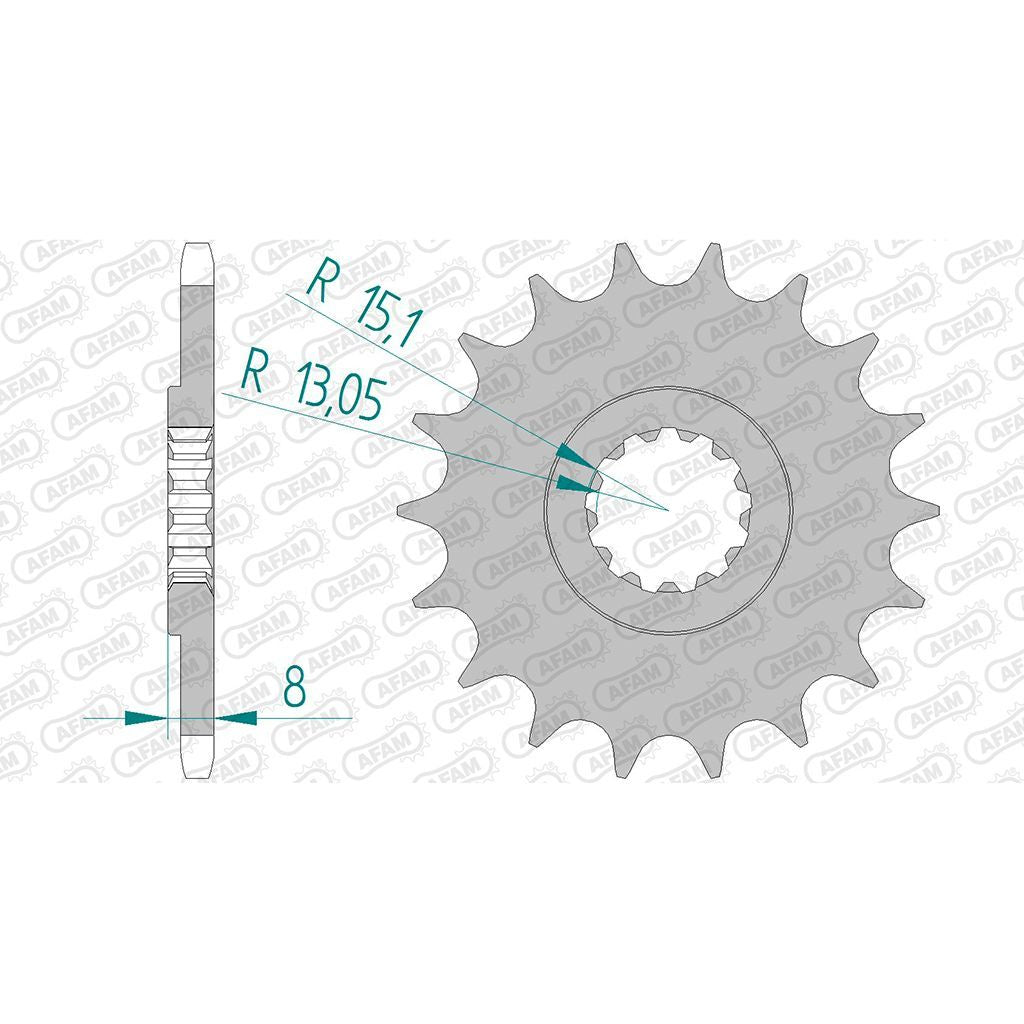

• Front sprocket: AFAM sprocket #520 18 teeth - a88802.18
• Chain: AFAM chain 520 XHR2-G Xs-Ring 112 with rivet link - a520xhr2.g.112

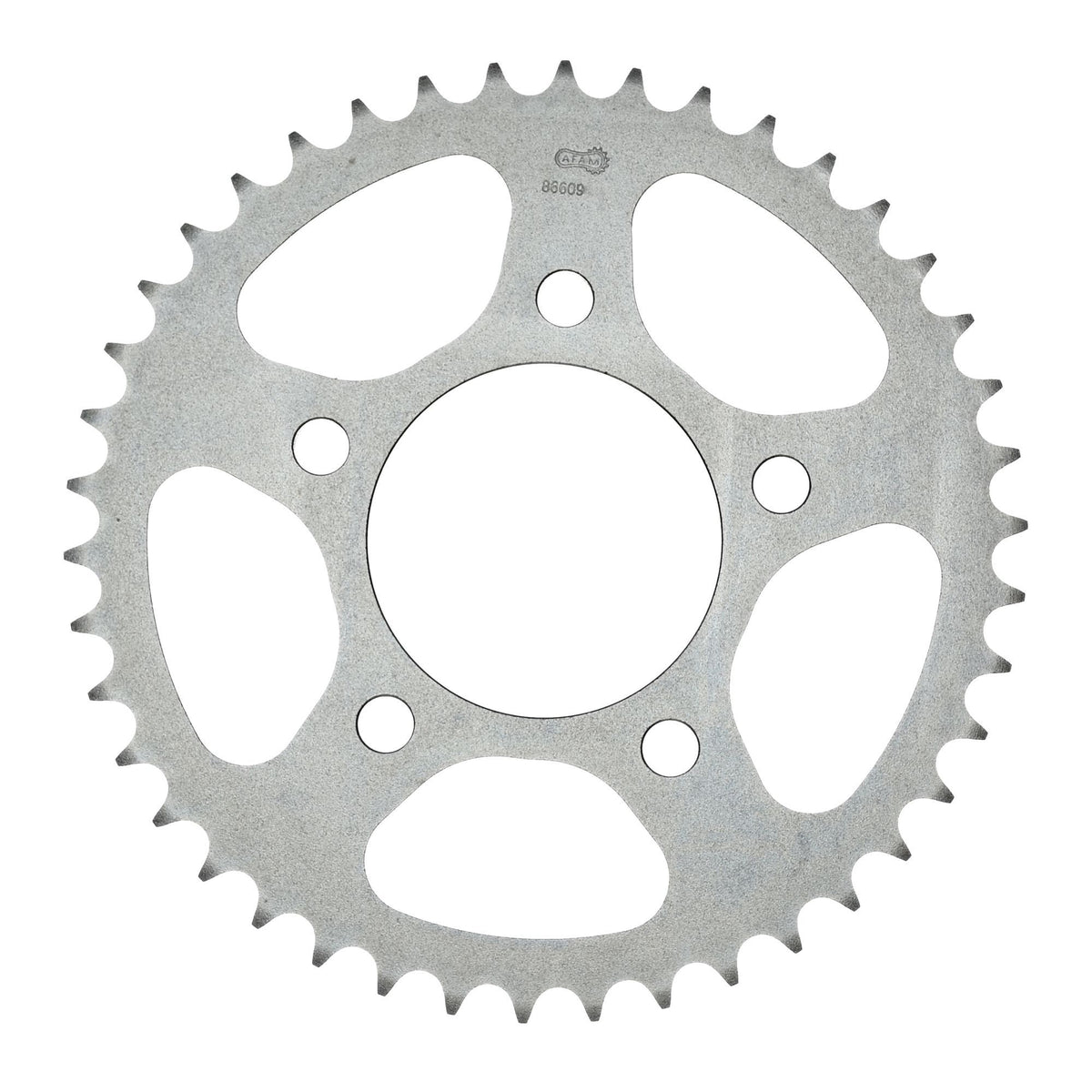

• Rear sprocket: AFAM sprocket STEEL #520 42 teeth - a86609.42
• Gear ratio sprocket-chain-rear sprocket: 18-112-42 check vehicle series with 520 chain pitch

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-52831

Suitable for

Triumph 751 - 1000 cc America 865 LT 986MK2 2015
