AFAM chain kit for Triumph America 865 LT 2015 520 XMR3 chain kit

AFAM Chain Kit for Triumph America 865 LT 2015 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Triumph America 865 LT 986MK2 2015-2015 - check vehicle for standard 520 chain pitch

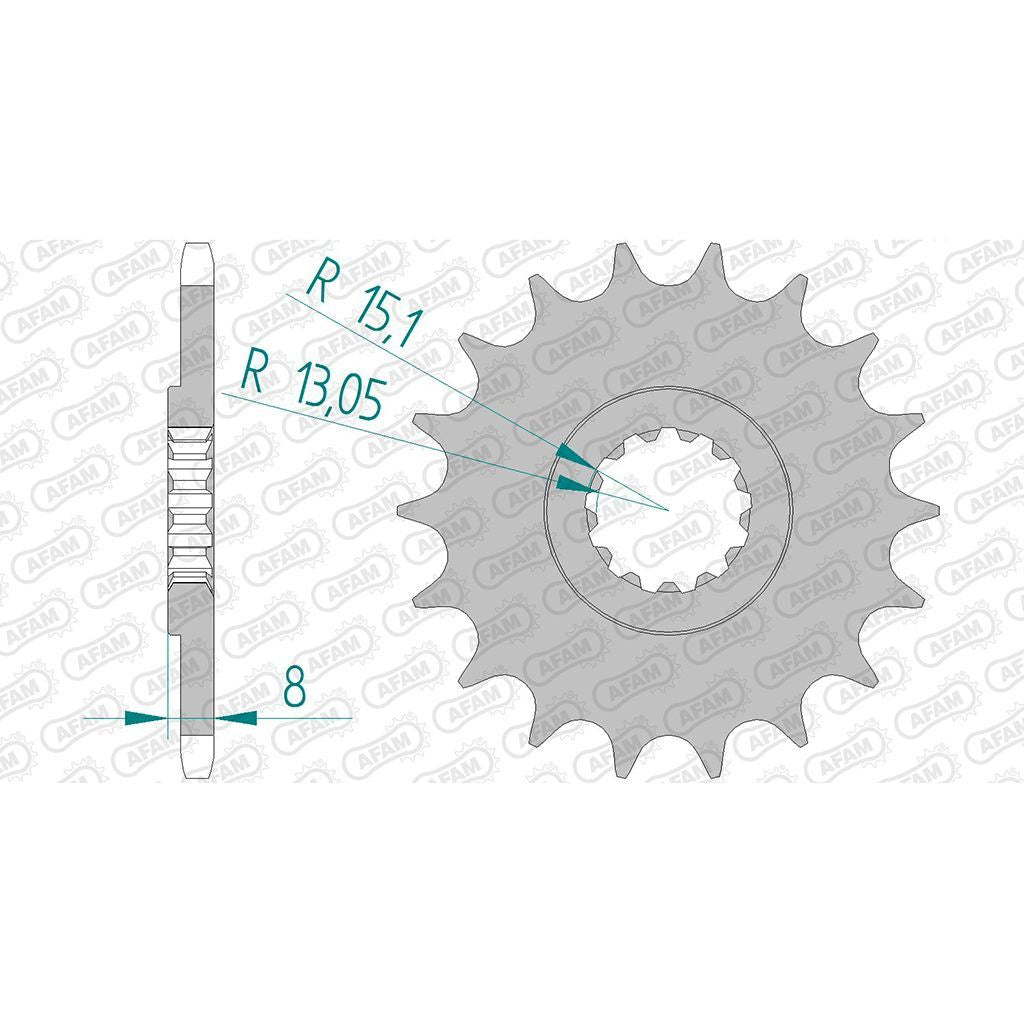

• Sprocket: AFAM sprocket #520 18 teeth - a88802.18
• Chain: AFAM chain 520 XMR3 Xs-ring 112 with rivet link - a520xmr3.112

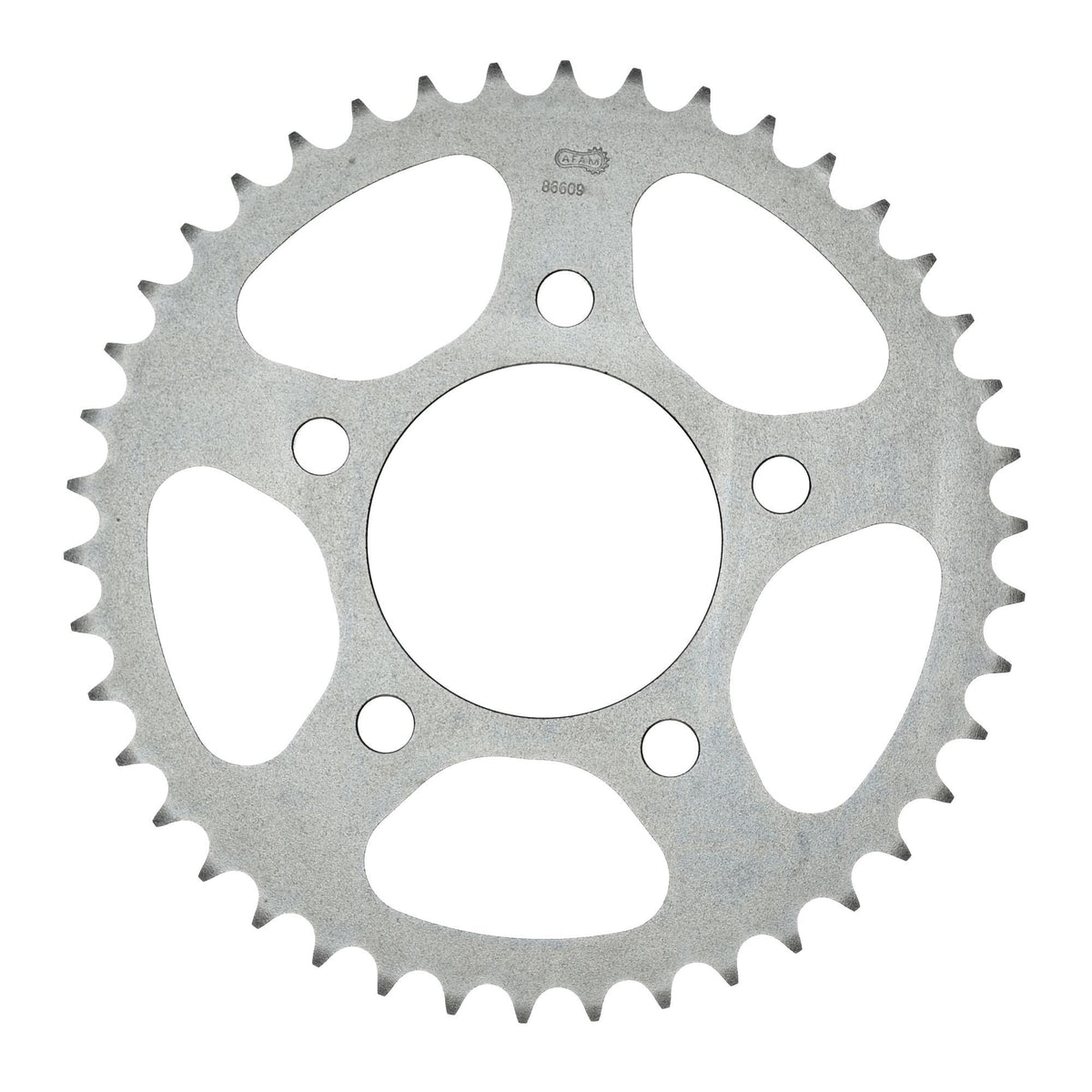

• Rear sprocket: AFAM STEEL rear sprocket #520 42 teeth - a86609.42
• Gear ratio sprocket-chain-rear sprocket: 18-112-42 check vehicle for standard 520 chain pitch

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52832

Suitable for

Triumph 751 - 1000 cc America 865 LT 986MK2 2015
