AFAM chain kit for Triumph America Bonneville 800 02-06 525 XSR2G chain kit

AFAM chain kit for Triumph America Bonneville 800 02-06 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph America Bonneville 800 T908M 2002-2006

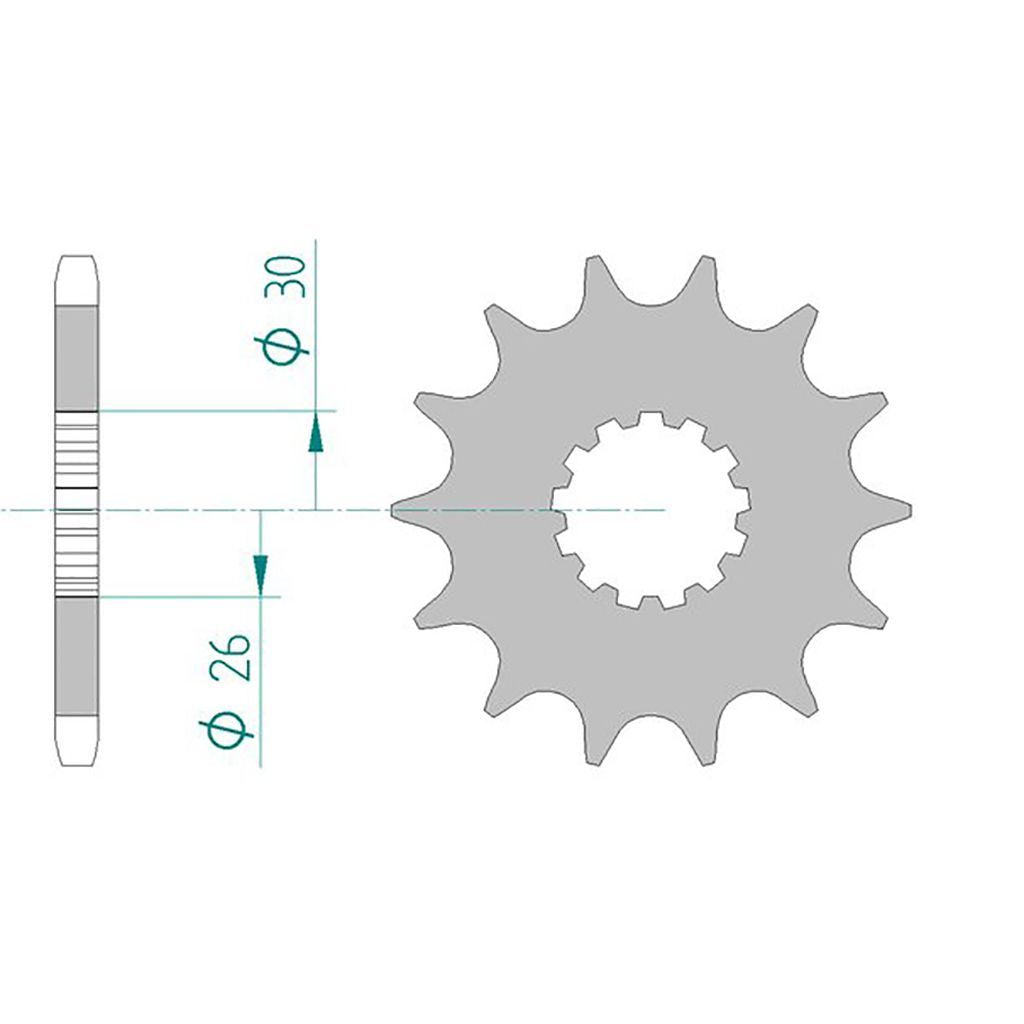

• Front sprocket: AFAM front sprocket #525 TRI 800/865 17 teeth - a88600.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 112 links w. rivet link - a525xsr2.g.112

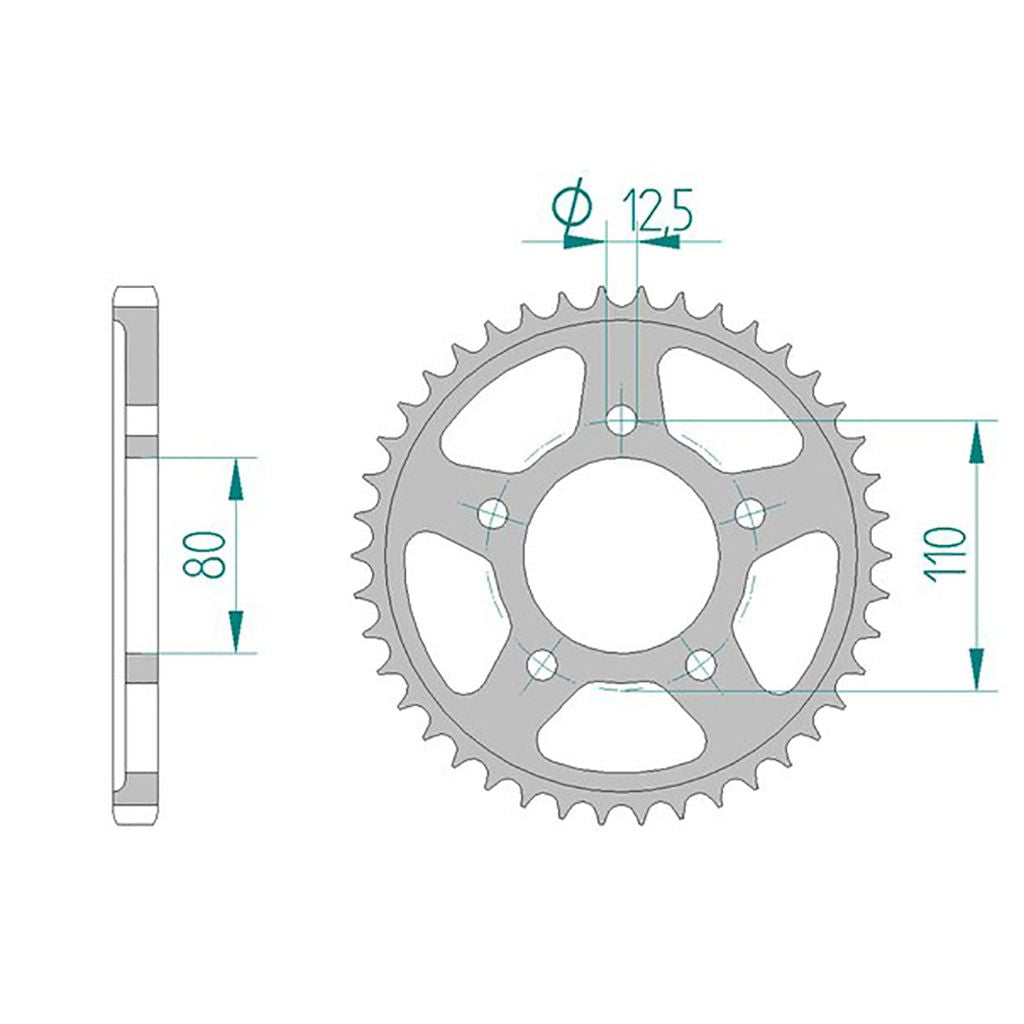

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a86604.42
• Gear ratio sprocket-chain-rear sprocket: 17-112-42

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-38839

Suitable for

Triumph 751 - 1000 cc America Bonneville 800 T908M 2002
Triumph 751 - 1000 cc America Bonneville 800 T908M 2003
Triumph 751 - 1000 cc America Bonneville 800 T908M 2004
Triumph 751 - 1000 cc America Bonneville 800 T908M 2005
Triumph 751 - 1000 cc America Bonneville 800 T908M 2006
