AFAM chain kit for Triumph Bonneville 800 00-06 525 XHR3G chain kit

AFAM chain kit for Triumph Bonneville 800 00-06 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Bonneville 800 T908MD 2000-2006

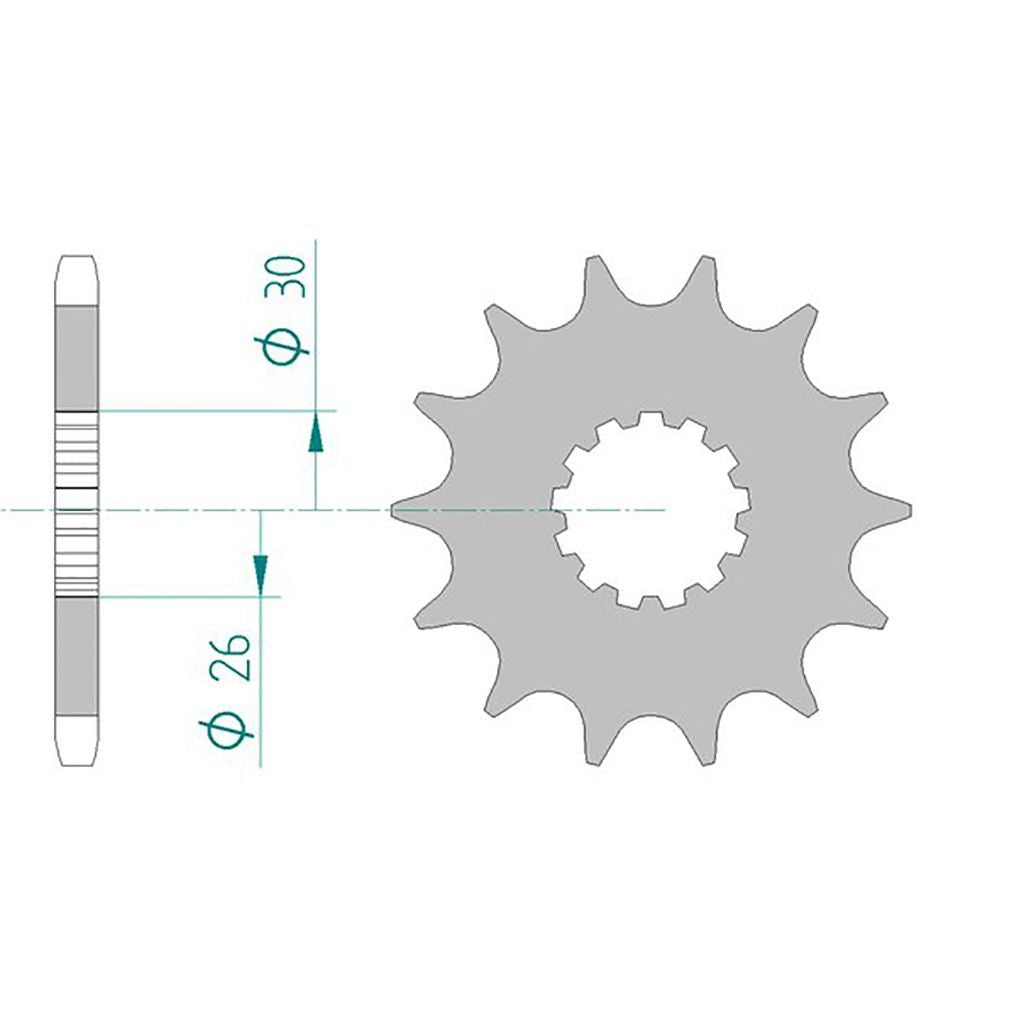

• Sprocket: AFAM sprocket #525 TRI 800/865 17 teeth - a88600.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 104 w. rivet link - a525xhr3.g.104

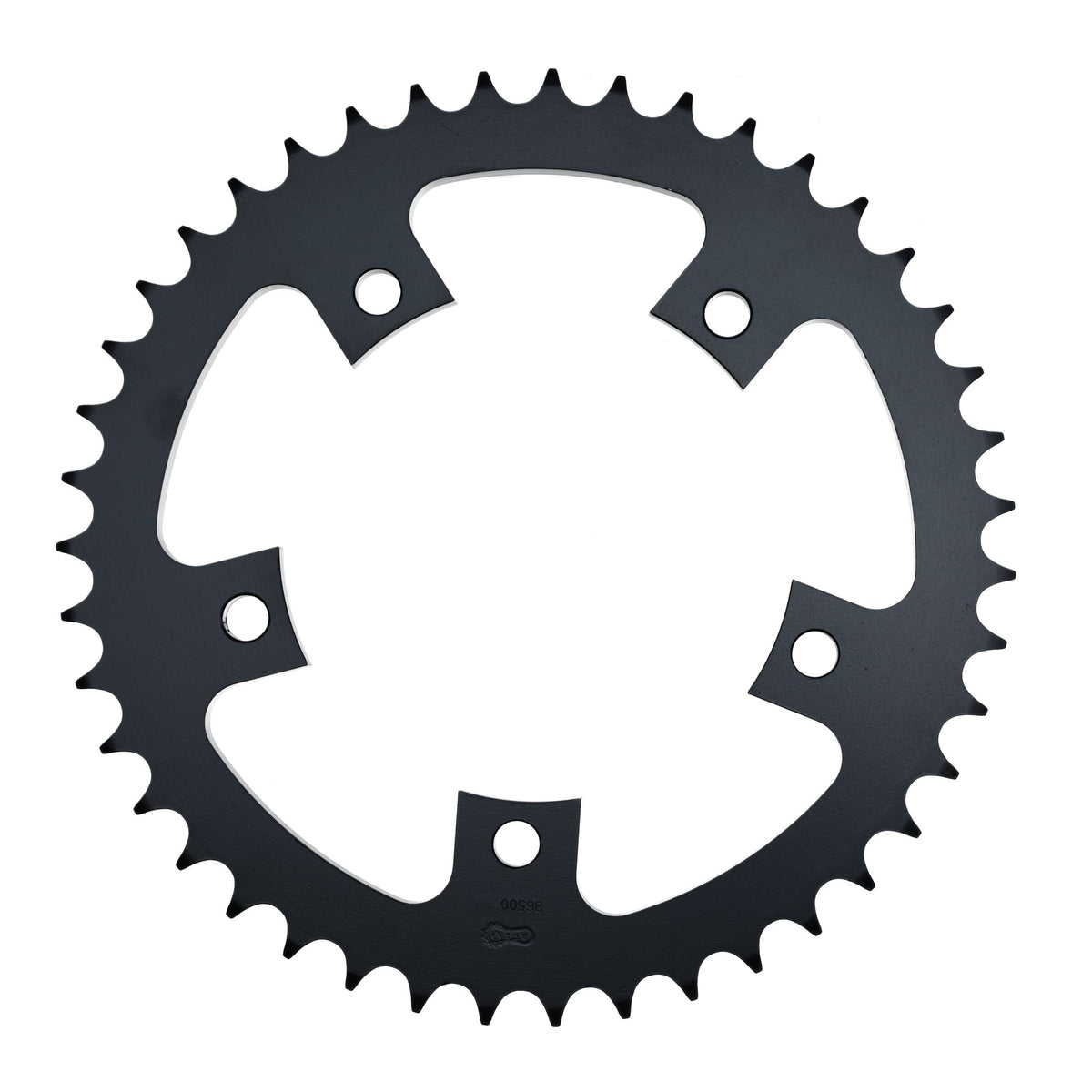

• Chain wheel: AFAM chain wheel STEEL #525 43 teeth - a86500.43
• Gear ratio sprocket-chain-chain wheel: 17-104-43

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-51190

Suitable for

Triumph 751 - 1000 cc Bonneville 800 T908MD 2000
Triumph 751 - 1000 cc Bonneville 800 T908MD 2001
Triumph 751 - 1000 cc Bonneville 800 T908MD 2002
Triumph 751 - 1000 cc Bonneville 800 T908MD 2003
Triumph 751 - 1000 cc Bonneville 800 T908MD 2004
Triumph 751 - 1000 cc Bonneville 800 T908MD 2005
Triumph 751 - 1000 cc Bonneville 800 T908MD 2006
