AFAM chain kit for Triumph Bonneville 800 00-06 525 XSR2G chain kit

AFAM chain kit for Triumph Bonneville 800 00-06 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Bonneville 800 T908MD 2000-2006

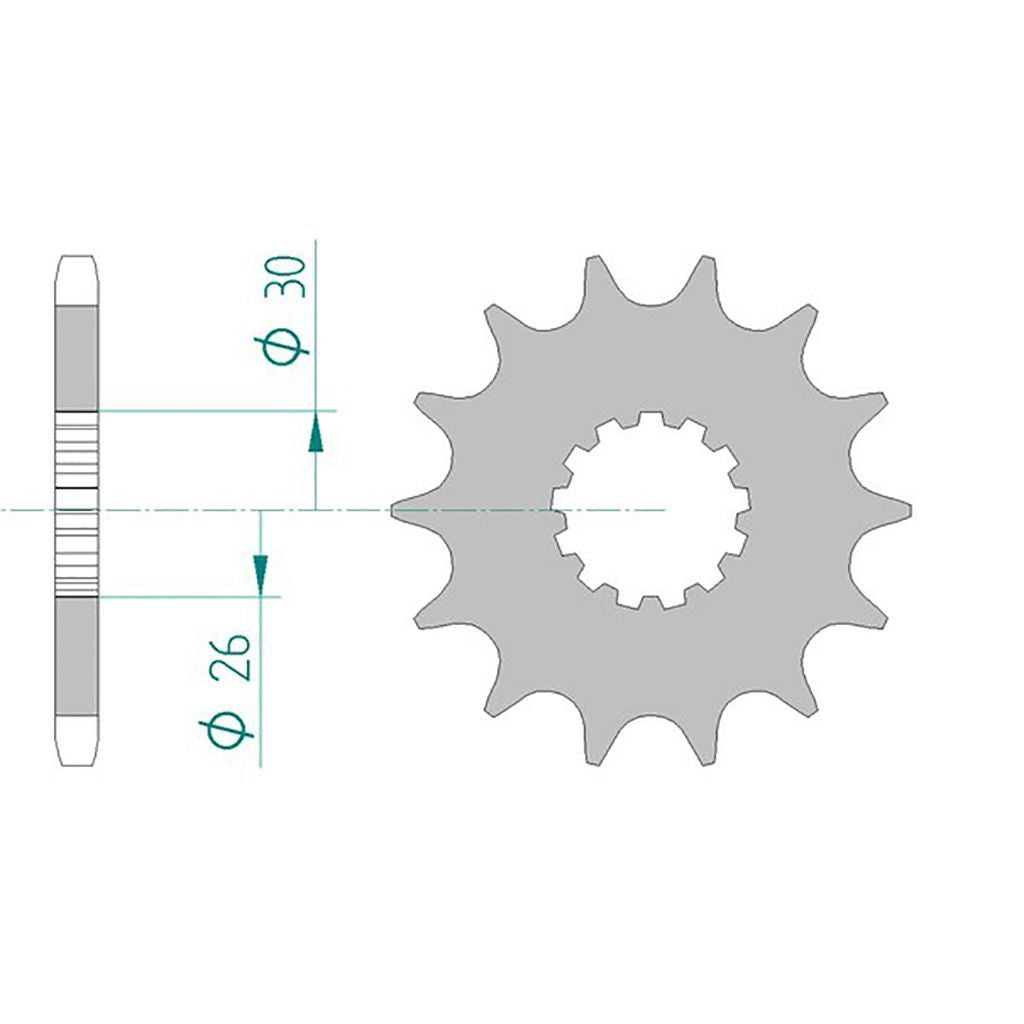

• Sprocket: AFAM sprocket #525 TRI 800/865 17 teeth - a88600.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 104 with rivet link - a525xsr2.g.104

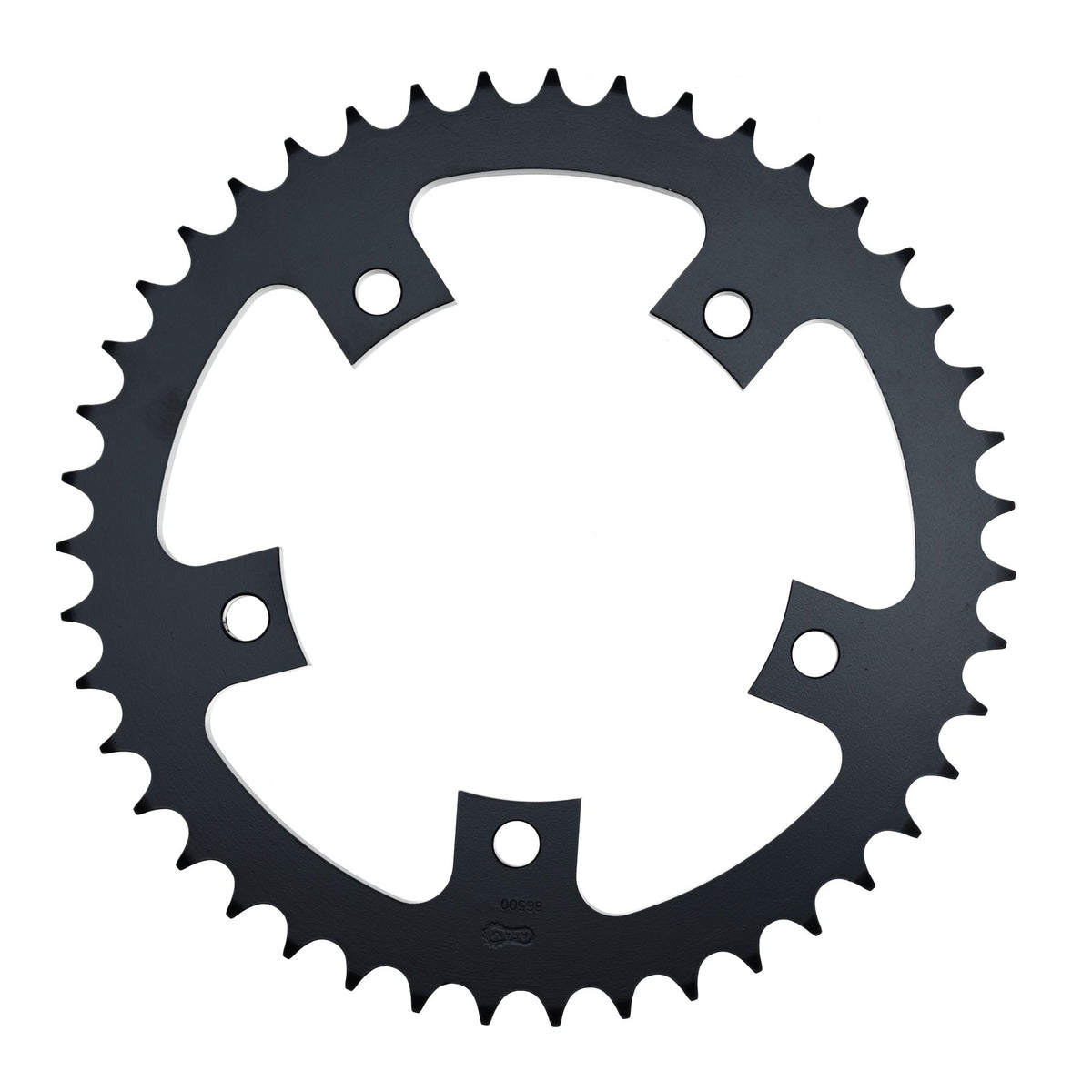

• Chain wheel: AFAM steel chain wheel #525 43 teeth - a86500.43
• Gear ratio sprocket-chain-chain wheel: 17-104-43

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51191

Suitable for

Triumph 751 - 1000 cc Bonneville 800 T908MD 2000
Triumph 751 - 1000 cc Bonneville 800 T908MD 2001
Triumph 751 - 1000 cc Bonneville 800 T908MD 2002
Triumph 751 - 1000 cc Bonneville 800 T908MD 2003
Triumph 751 - 1000 cc Bonneville 800 T908MD 2004
Triumph 751 - 1000 cc Bonneville 800 T908MD 2005
Triumph 751 - 1000 cc Bonneville 800 T908MD 2006
