AFAM chain kit for Triumph Bonneville 865 2015 525 XSR2G chain kit

AFAM chain kit for Triumph Bonneville 865 2015 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Bonneville 865 986MF 2015-2015 check on vehicle standard with 525 chain pitch

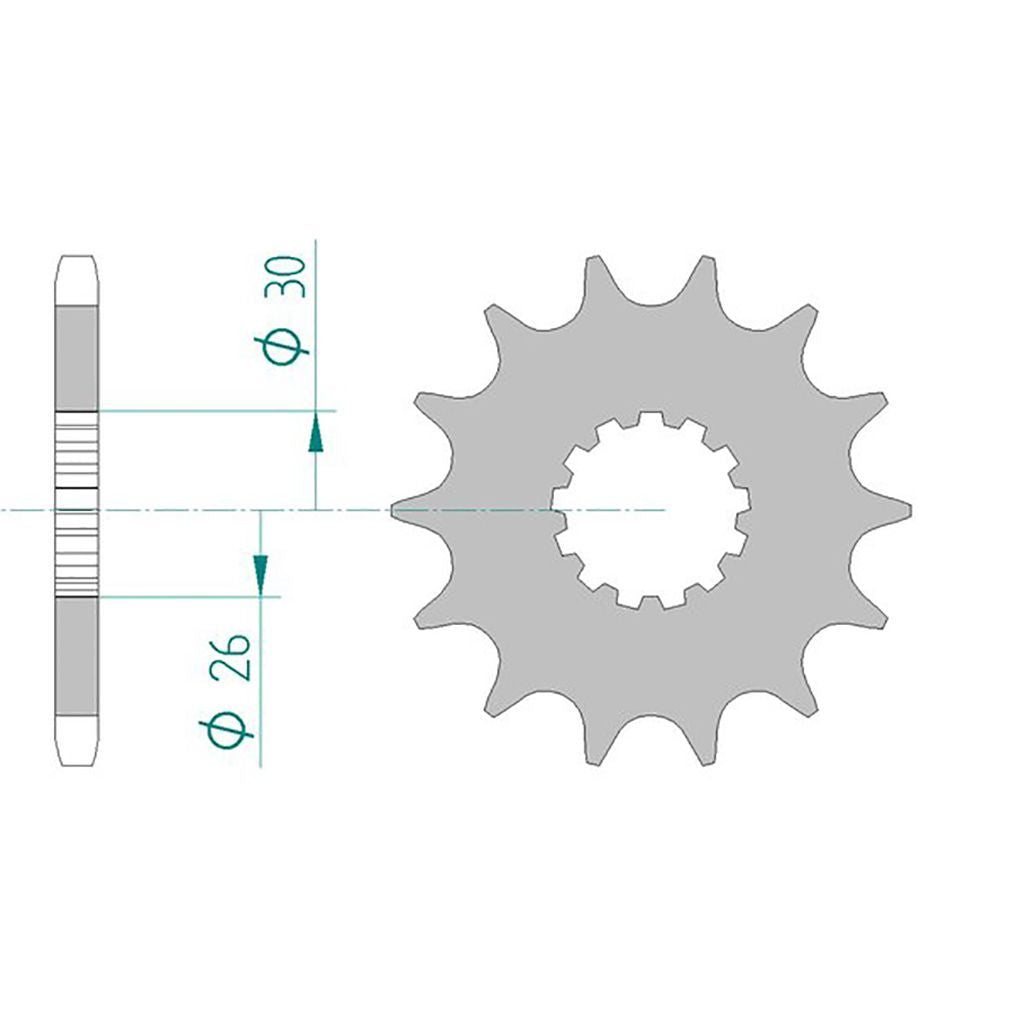

• Front sprocket: AFAM front sprocket #525 TRI 800/865 18 teeth - a88600.18
• Chain: AFAM chain 525 XSR2-G Xs-ring 104 with rivet link - a525xsr2.g.104

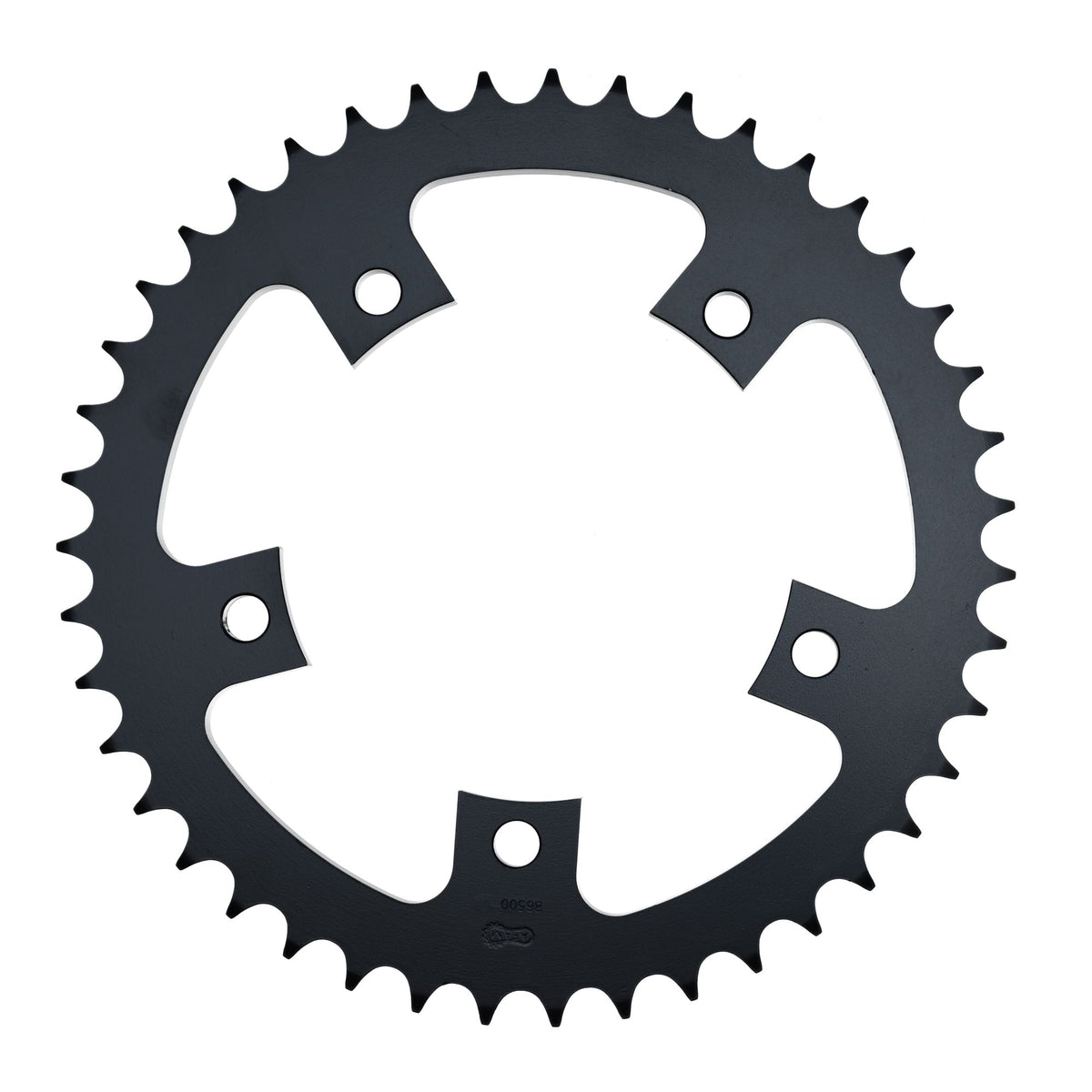

• Rear sprocket: AFAM rear sprocket STEEL #525 43 teeth - a86500.43
• Gear ratio front sprocket-chain-rear sprocket: 18-104-43 check on vehicle standard with 525 chain pitch

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-17250

Fits

Triumph 751 - 1000 cc Bonneville 865 986MF 2015
