AFAM chain kit for Triumph Bonneville 865 SE 09-11 525 XSR2G chain kit

AFAM chain kit for Triumph Bonneville 865 SE 09-11 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Triumph Bonneville 865 SE 986MF 2009-2011 chain kit

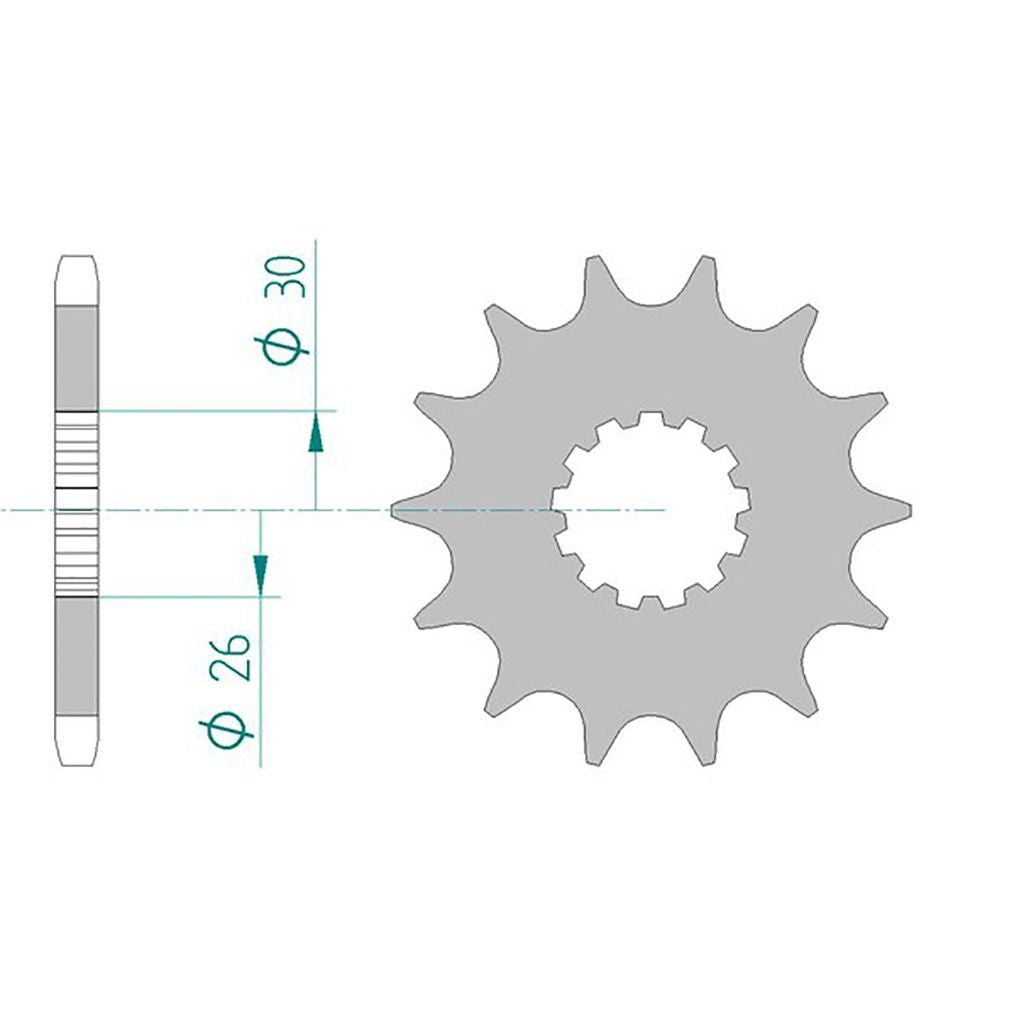

• Front sprocket: AFAM sprocket #525 TRI 800/865 18 teeth - a88600.18
• Chain: AFAM chain 525 XSR2-G Xs-ring 104 w/ rivet link - a525xsr2.g.104

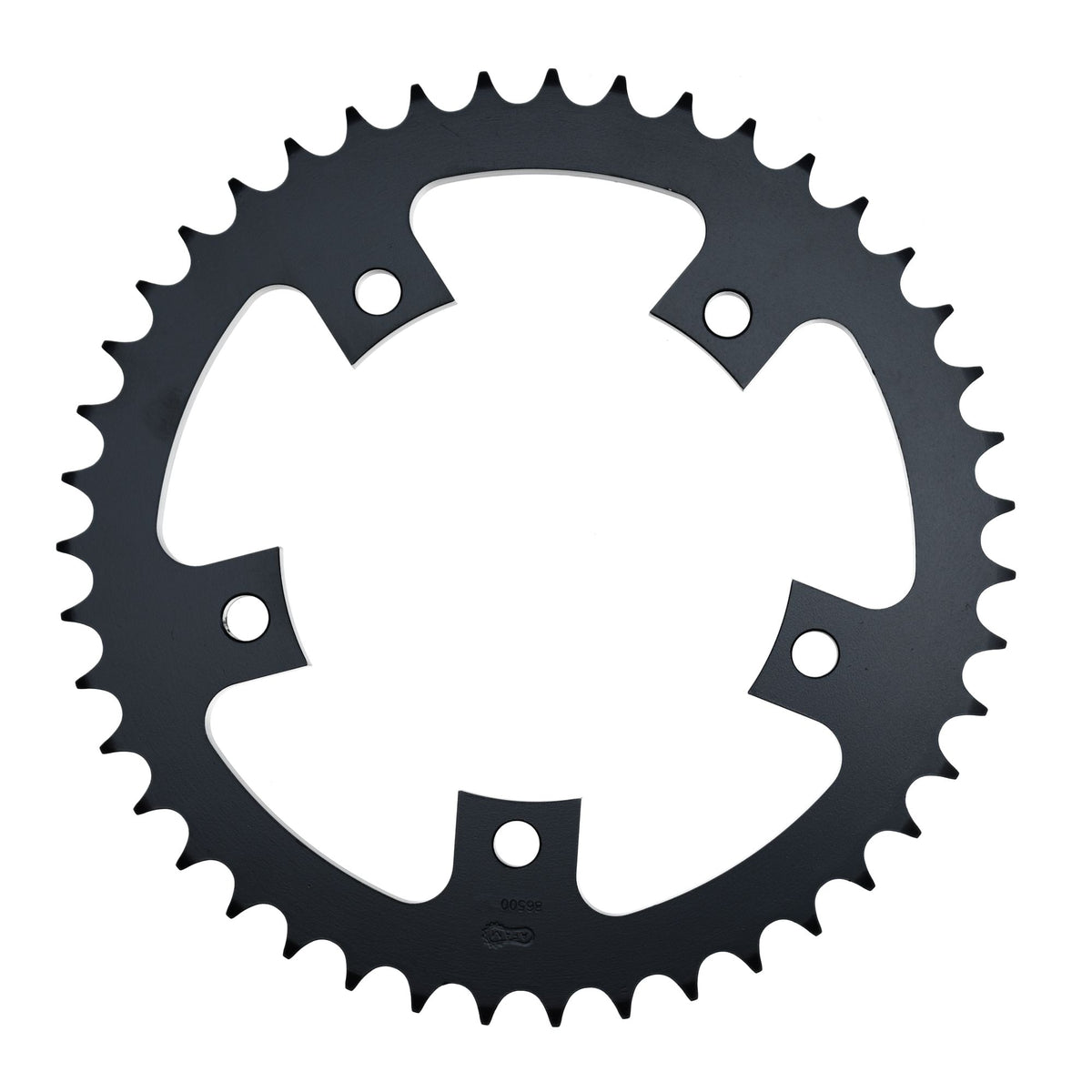

• Rear sprocket: AFAM rear sprocket STEEL #525 43 teeth - a86500.43
• Transmission ratio sprocket-chain-rear sprocket: 18-104-43

AFAM 525 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-39008

Fits

Triumph 751 - 1000 cc Bonneville 865 SE 986MF 2009
Triumph 751 - 1000 cc Bonneville 865 SE 986MF 2010
Triumph 751 - 1000 cc Bonneville 865 SE 986MF 2011
