AFAM chain kit for Triumph Bonneville 865 T100 05-14 525 XSR2G chain kit

AFAM chain kit for Triumph Bonneville 865 T100 05-14 525 XSR2G chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Bonneville 865 T100 986MF 2005-2014

• Front sprocket: AFAM front sprocket #525 TRI 800/865 18 teeth - a88600.18
• Chain: AFAM chain 525 XSR2-G Xs-ring 104 with rivet link - a525xsr2.g.104

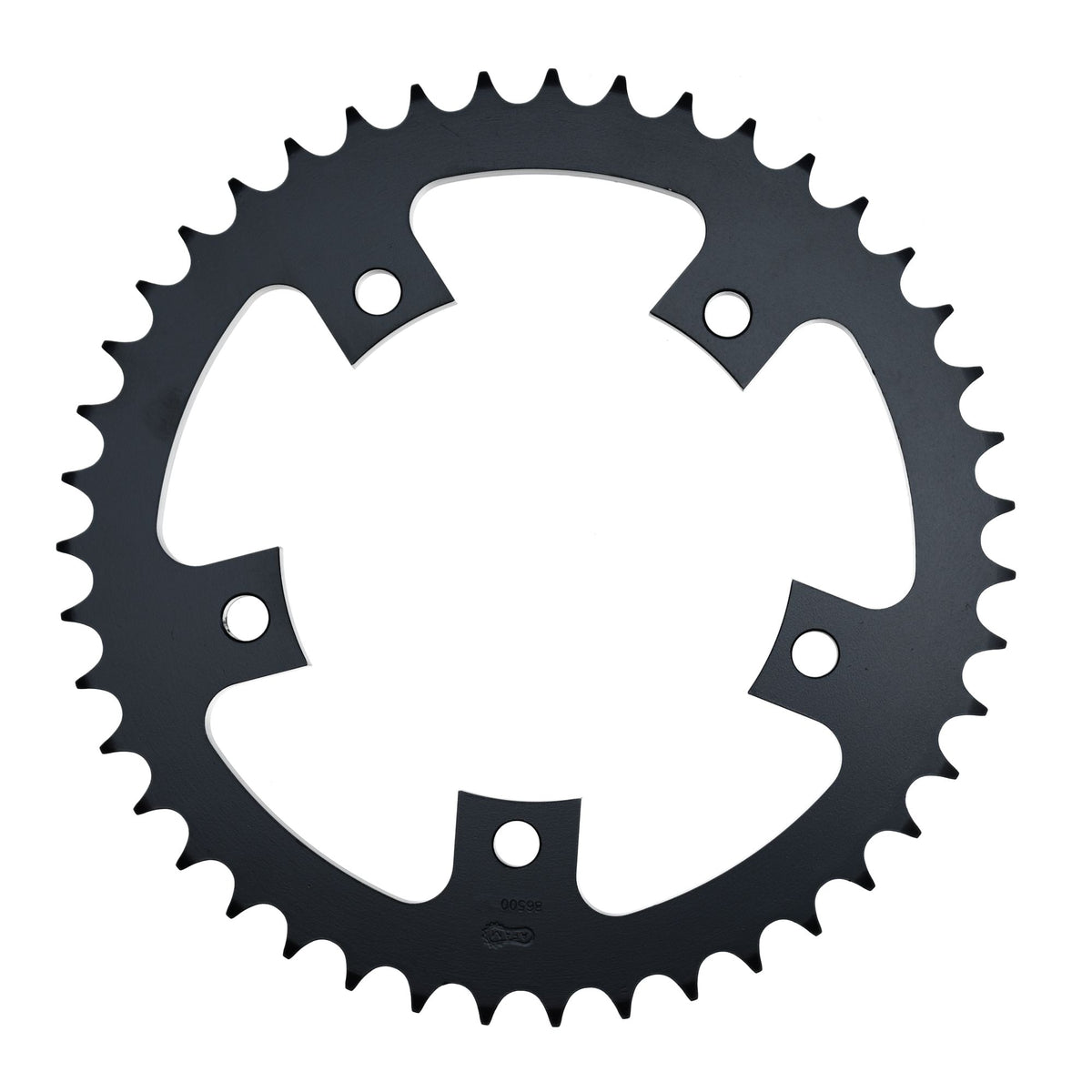

• Rear sprocket: AFAM rear sprocket STEEL #525 43 teeth - a86500.43
• Gear ratio front sprocket-chain-rear sprocket: 18-104-43

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-17506

Suitable for

Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2005
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2006
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2007
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2008
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2009
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2010
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2011
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2012
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2013
Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2014
