AFAM chain kit for Triumph Bonneville 865 T100 2015 520 XHR2G chain kit

AFAM Chain Kit for Triumph Bonneville 865 T100 2015 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Triumph Bonneville 865 T100 986MF 2015-2015 verify series with 520 chain pitch on the vehicle

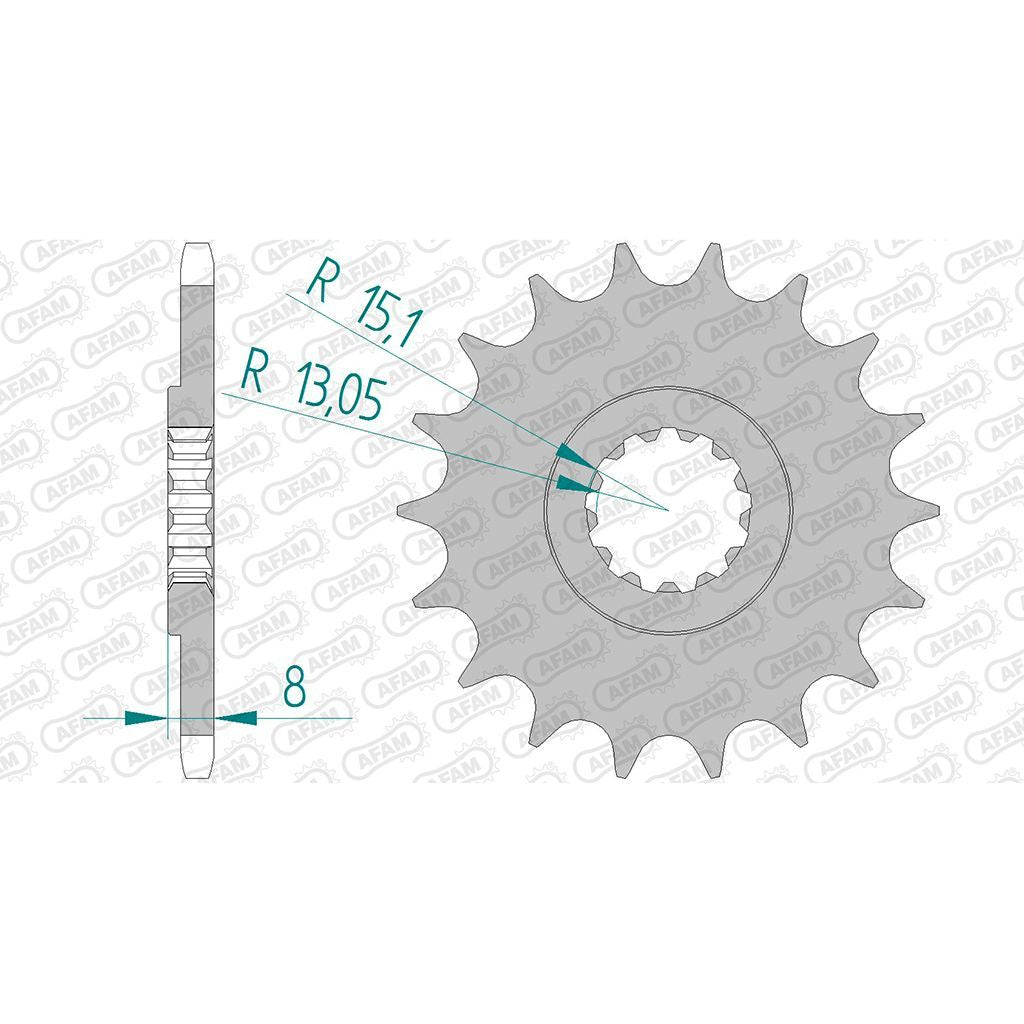

• Sprocket: AFAM sprocket #520 18 teeth - a88802.18
• Chain: AFAM chain 520 XHR2-G Xs-Ring 104 with rivet link - a520xhr2.g.104

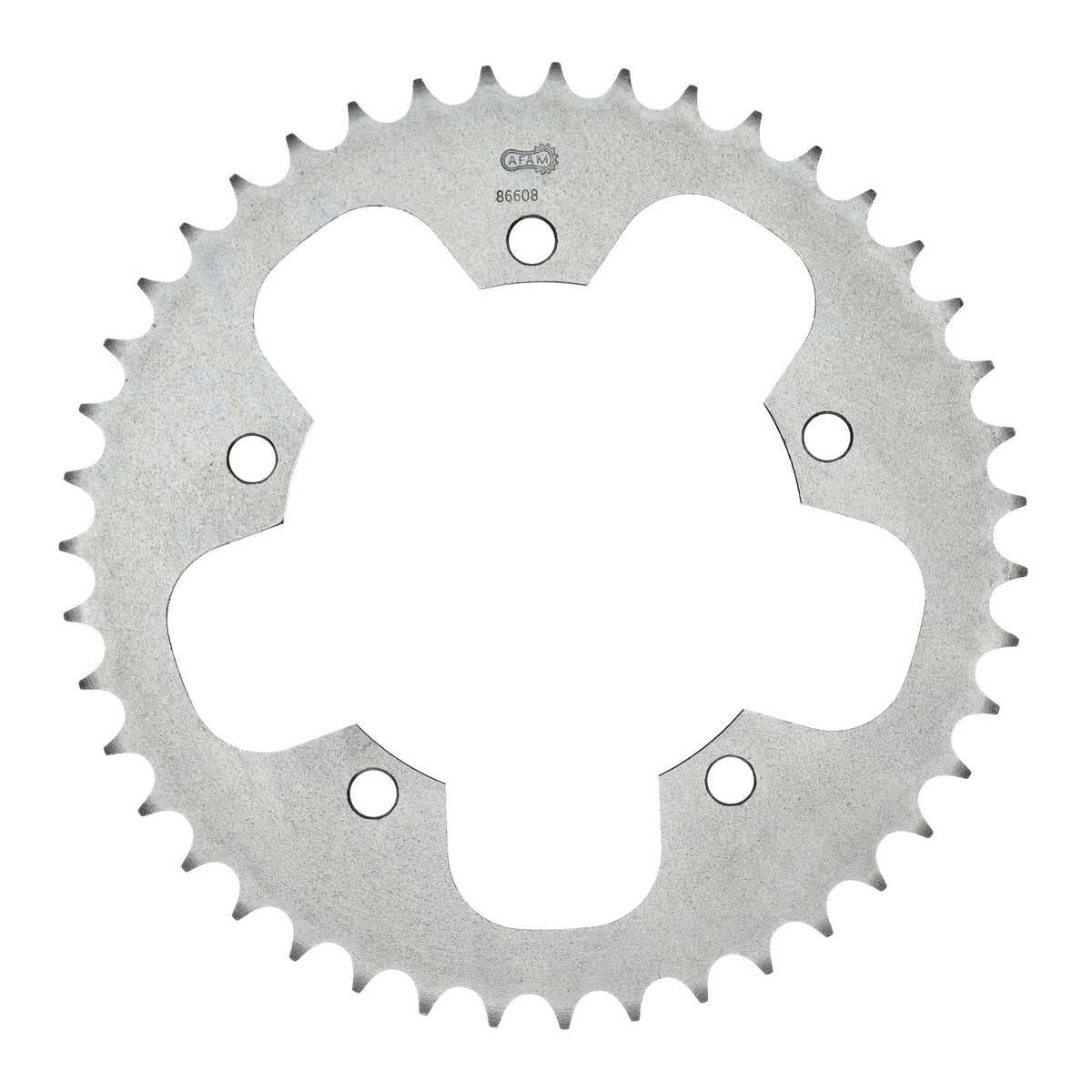

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a86608.43
• Gear ratio sprocket-chain-rear sprocket: 18-104-43 verify series with 520 chain pitch on the vehicle

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-17507

Suitable for

Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2015
