AFAM chain kit for Triumph Bonneville 865 T100 2015 525 XSR2G chain kit

AFAM Chain Kit for Triumph Bonneville 865 T100 2015 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Check components of the Triumph Bonneville 865 T100 986MF 2015-2015 chain kit on the vehicle; standard with 525 chain pitch

• Sprocket: AFAM sprocket #525 TRI 800/865 18 teeth - a88600.18
• Chain: AFAM chain 525 XSR2-G Xs-Ring 104 with rivet link - a525xsr2.g.104

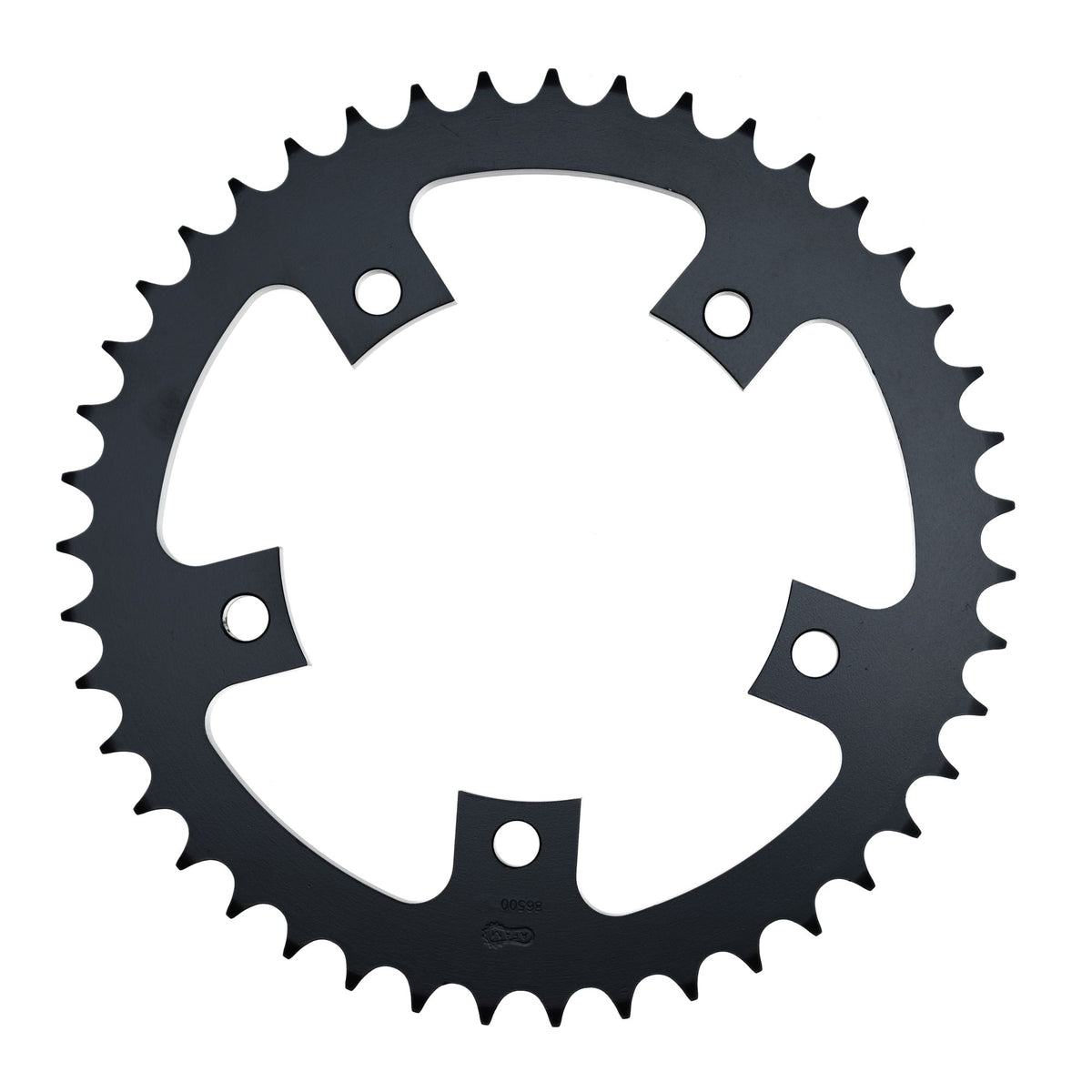

• Rear sprocket: AFAM steel sprocket #525 43 teeth - a86500.43
• Gear ratio sprocket-chain-rear sprocket: 18-104-43, check on vehicle; standard with 525 chain pitch

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A, 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-29644

Suitable for

Triumph 751 - 1000 cc Bonneville 865 T100 986MF 2015
