AFAM chain kit for Triumph Bonneville 900 T100 ABS 21-24 520 XHR2G chain kit

AFAM Chain Kit for Triumph Bonneville 900 T100 ABS 21-24 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only for compatibility representation!

Components of the Triumph Bonneville 900 T100 ABS DB04 2021-2024 chain kit

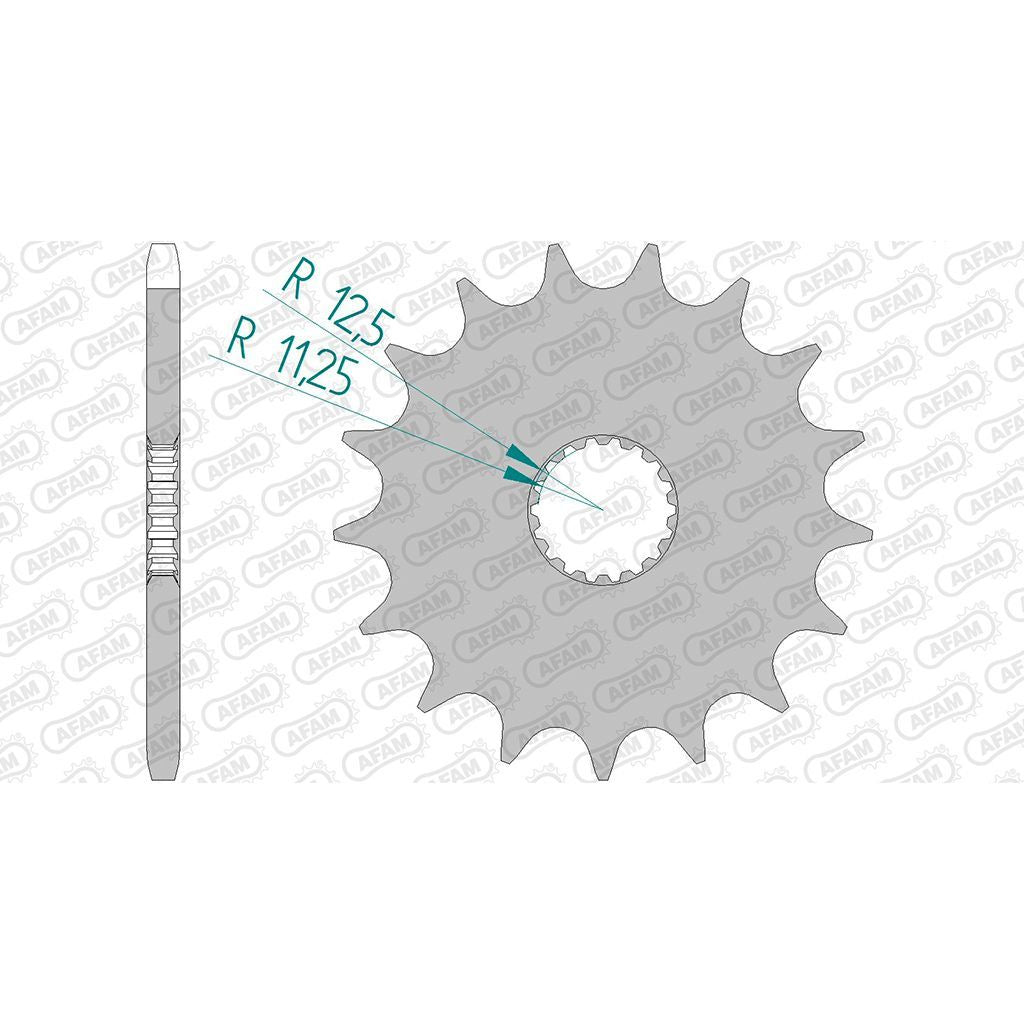

• Sprocket: AFAM sprocket #520 17 teeth - a88803.17
• Chain: AFAM chain 520 XHR2-G Xs-ring 102 with rivet link - a520xhr2.g.102
• Rear sprocket: AFAM rear sprocket ALU #520 41 teeth - a87606.41
• Gear ratio sprocket-chain-rear sprocket: 17-102-41

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78047

Fits

Triumph 751 - 1000 cc Bonneville 900 T100 ABS DB04 2021
Triumph 751 - 1000 cc Bonneville 900 T100 ABS DB04 2022
Triumph 751 - 1000 cc Bonneville 900 T100 ABS DB04 2023
Triumph 751 - 1000 cc Bonneville 900 T100 ABS DB04 2024
