AFAM chain kit for Triumph Bonneville T120 ABS 16-20 525 XHR3G chain kit

AFAM chain kit for Triumph Bonneville T120 ABS 16-20 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit Triumph Bonneville T120 ABS DU01 2016-2020

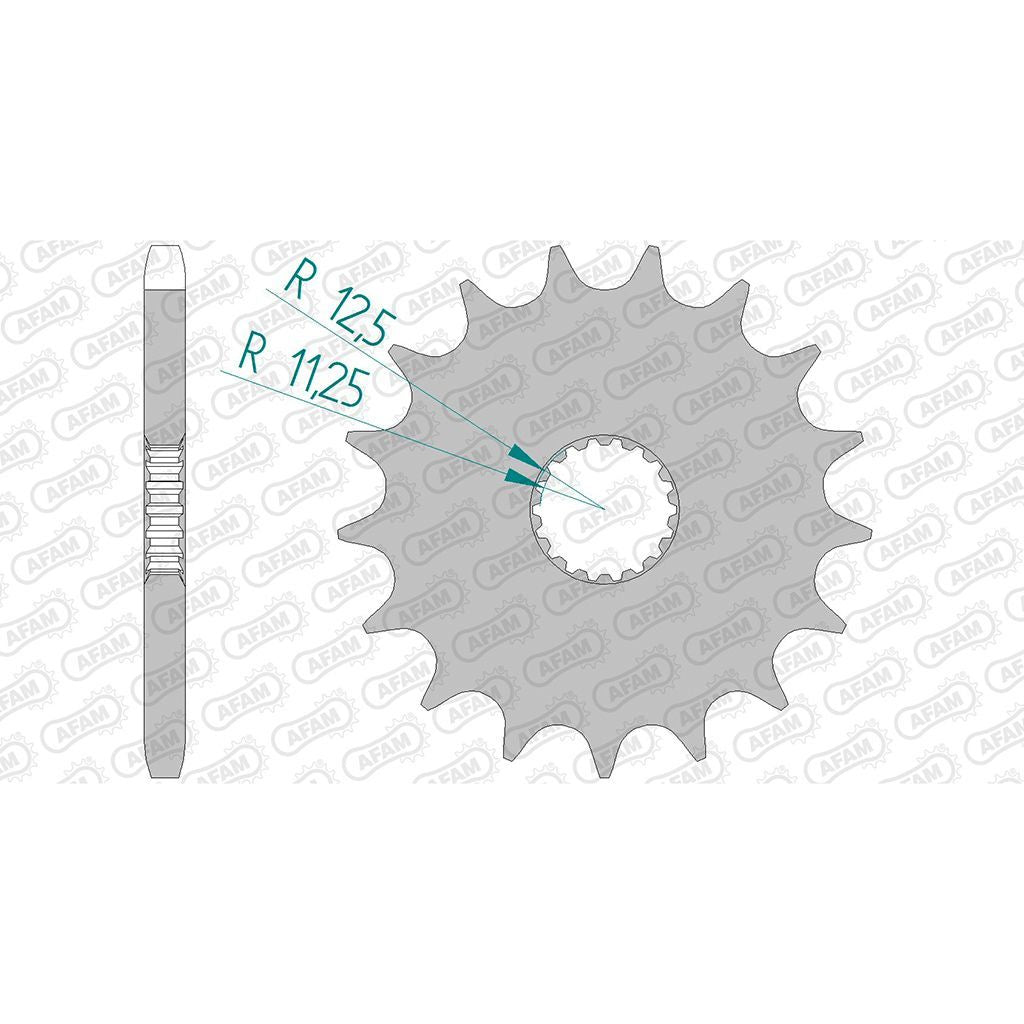

• Front sprocket: AFAM front sprocket #525 17 teeth - a88900.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 100 links w. rivet link - a525xhr3.g.100

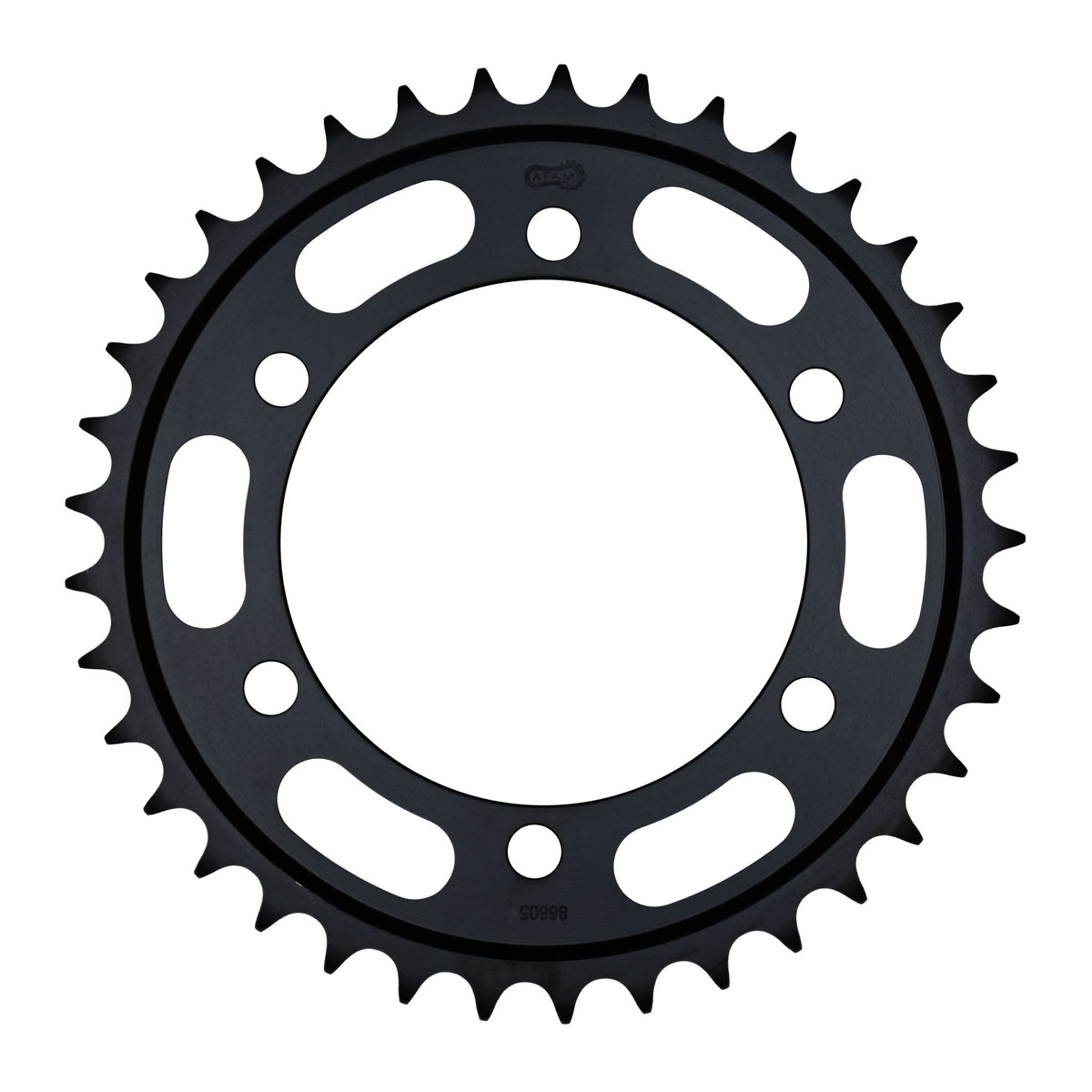

• Rear sprocket: AFAM STEEL rear sprocket #525 37 teeth - a86605.37
• Gear ratio front sprocket-chain-rear sprocket: 17-100-37

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-78129

Suitable for

Triumph over 1001 cc Bonneville T120 ABS DU01 2016
Triumph over 1001 cc Bonneville T120 ABS DU01 2017
Triumph over 1001 cc Bonneville T120 ABS DU01 2018
Triumph over 1001 cc Bonneville T120 ABS DU01 2019
Triumph over 1001 cc Bonneville T120 ABS DU01 2020
