AFAM chain kit for Triumph Daytona 650 2005 525 XHR3G chain kit

AFAM chain kit for Triumph Daytona 650 2005 525 XHR3G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Triumph Daytona 650 865LX 2005-2005

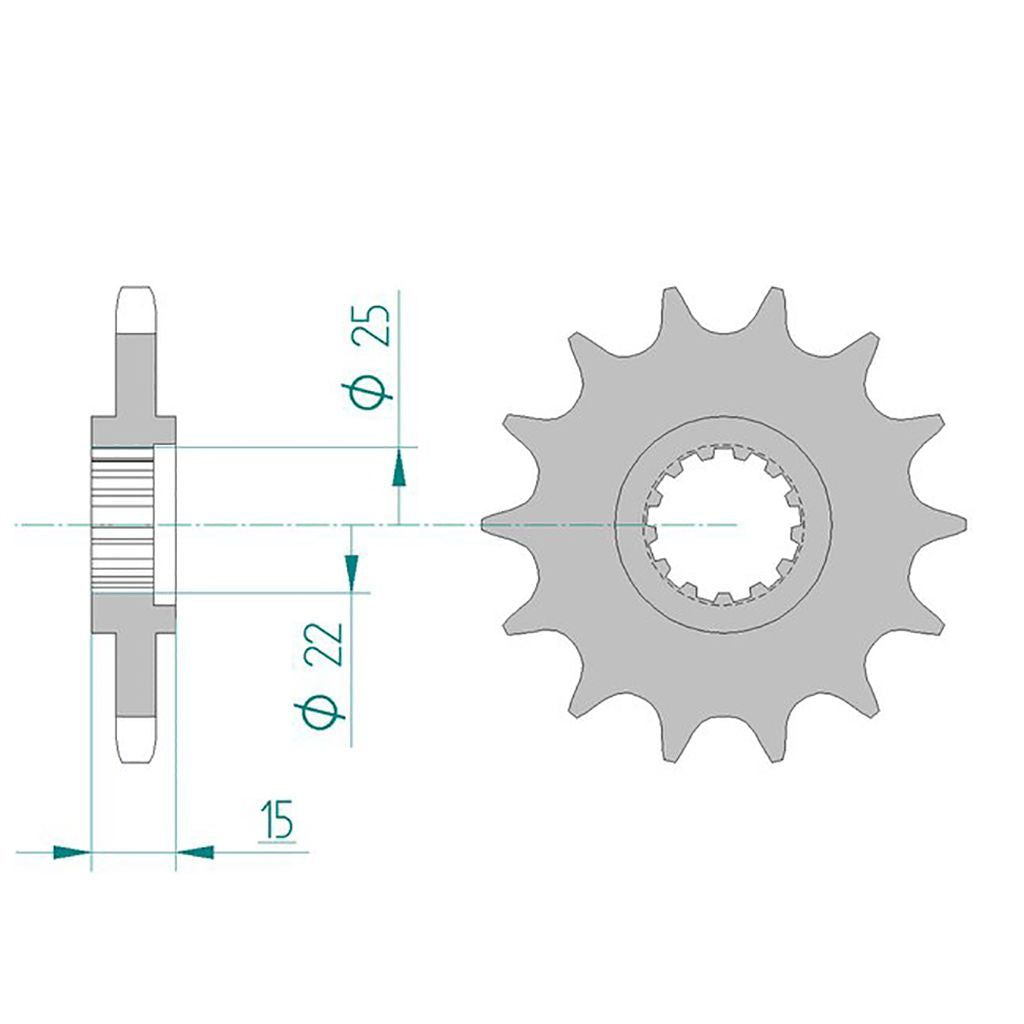

• Front sprocket: AFAM front sprocket #525 15 teeth - a24506.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 108 w. rivet link - a525xhr3.g.108

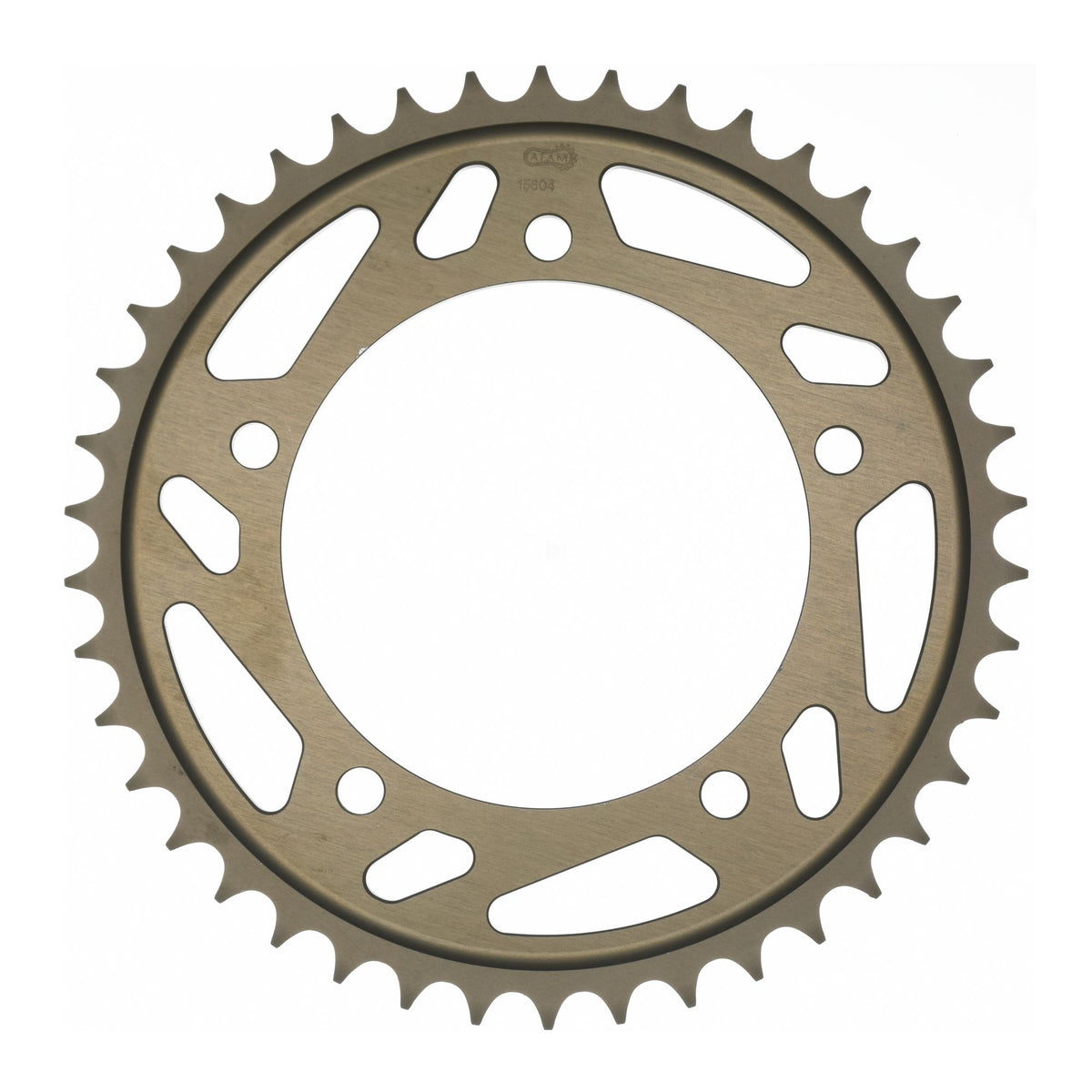

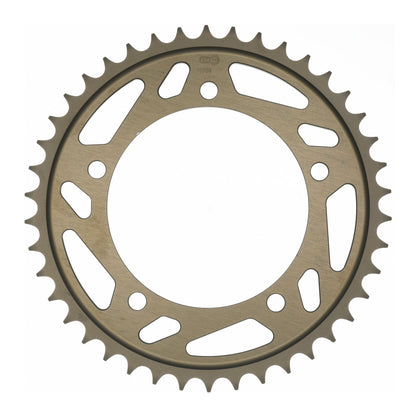

• Rear sprocket: AFAM rear sprocket ALU #525 45 teeth - a15604.45
• Gear ratio front sprocket-chain-rear sprocket: 15-108-45

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51151

Suitable for

Triumph 501 - 750 cc Daytona 650 865LX 2005
