AFAM chain kit for Triumph Daytona 660 24-25 520 MR2G chain kit

AFAM Chain Kit for Triumph Daytona 660 24-25 520 MR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Triumph Daytona 660 LG20/LG21 2024-2025

• Front sprocket: AFAM front sprocket #520 15 teeth - a27500.15
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.120

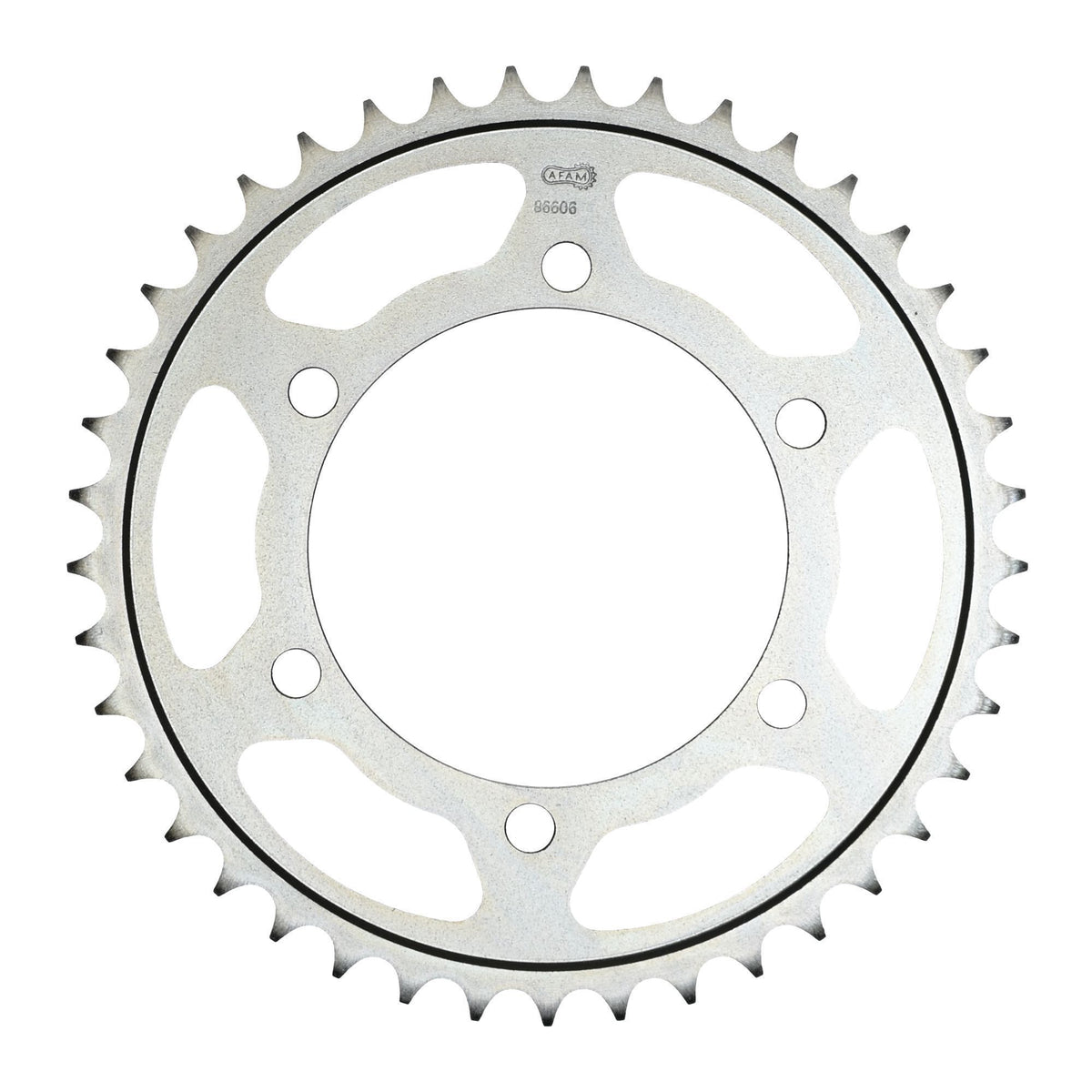

• Rear sprocket: AFAM STEEL rear sprocket #520 51 teeth - a86606.51
• Gear ratio front sprocket-chain-rear sprocket: 15-120-51

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road and moto-cross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-77995

Suitable for

Triumph 501 - 750 cc Daytona 660 LG20/LG21 2024
Triumph 501 - 750 cc Daytona 660 LG20/LG21 2025
