AFAM chain kit for Triumph Daytona 660 24-25 520 XHR2G chain kit

AFAM chain kit for Triumph Daytona 660 24-25 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Mention of the manufacturer is only for the purpose of demonstrating compatibility!

Components of the chain kit Triumph Daytona 660 LG20/LG21 2024-2025

• Sprocket: AFAM sprocket #520 15 teeth - a27500.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 120 with rivet link - a520xhr2.g.120

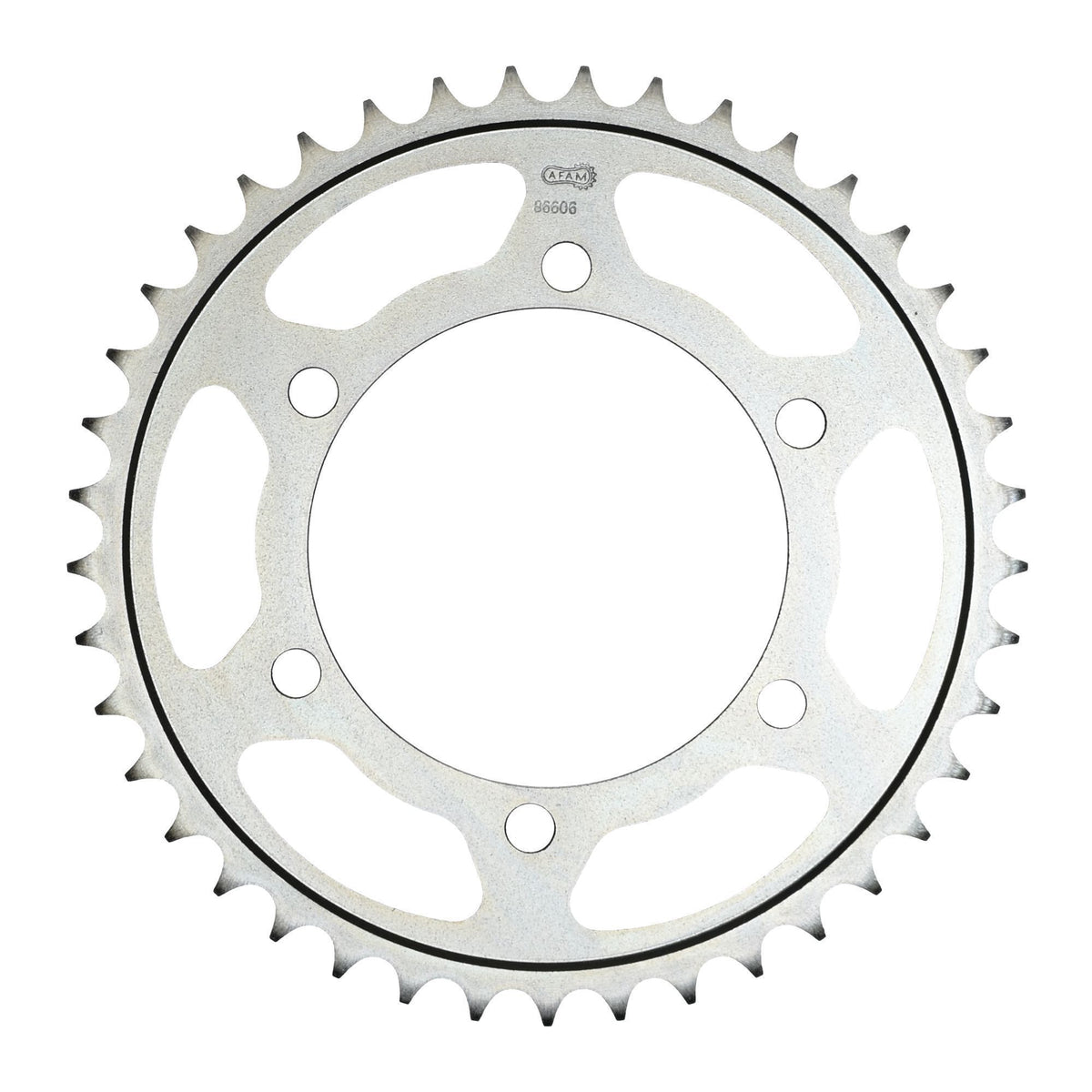

• Rear sprocket: AFAM STEEL rear sprocket #520 51 teeth - a86606.51
• Gear ratio sprocket-chain-rear sprocket: 15-120-51

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Colour: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78058

Fits

Triumph 501 - 750 cc Daytona 660 LG20/LG21 2024
Triumph 501 - 750 cc Daytona 660 LG20/LG21 2025
