AFAM chain kit for Triumph Daytona 660 24-25 520 XRR3G chain kit

AFAM chain kit for Triumph Daytona 660 24-25 520 XRR3G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Triumph Daytona 660 LG20/LG21 2024-2025

• Front sprocket: AFAM sprocket #520 SC - a27500.15sc
• Chain: AFAM chain 520 XRR3-G Xs-ring 120 w. clip link - a520xrr3.g.120

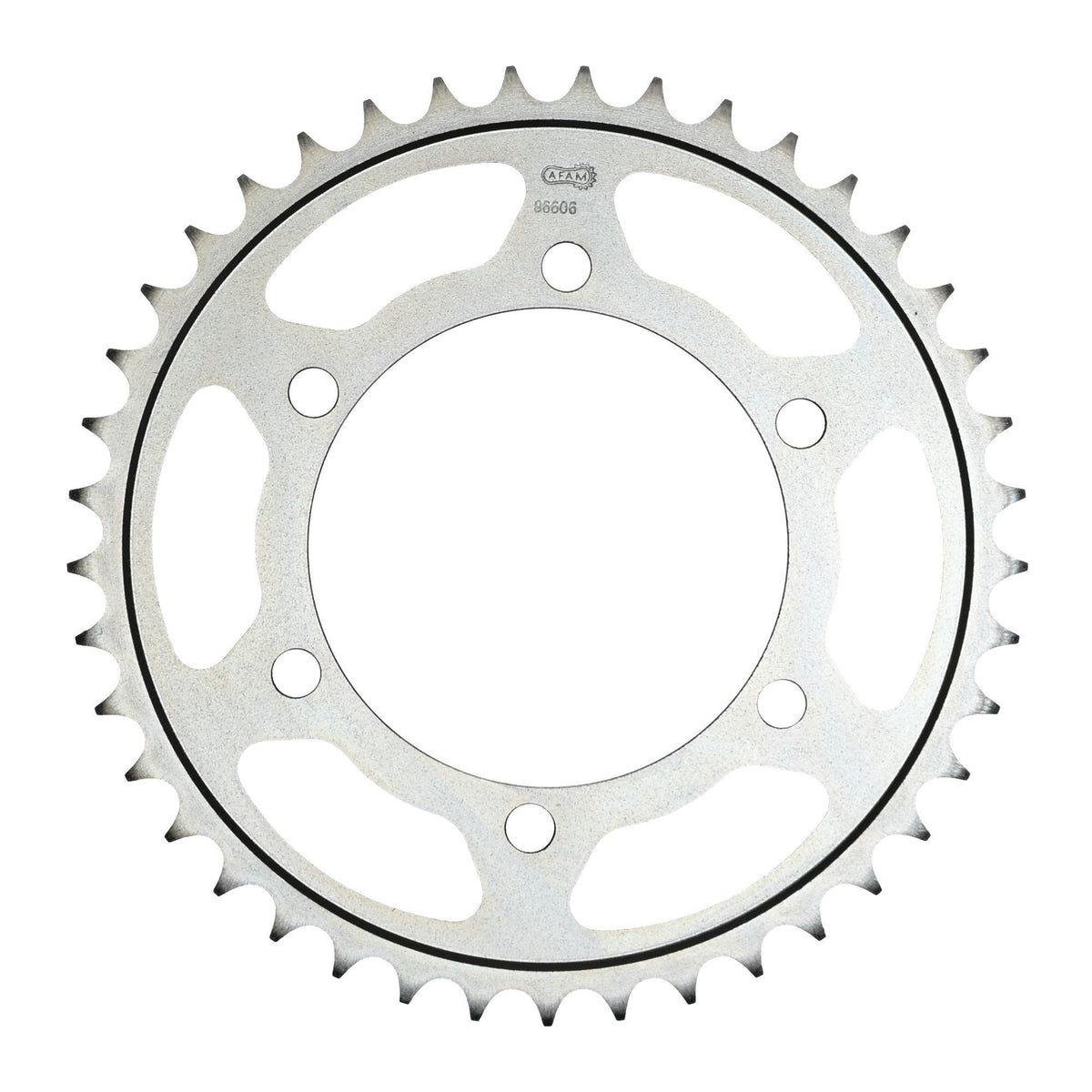

• Rear sprocket: AFAM STEEL sprocket #520 51 teeth - a86606.51
• Transmission ratio front sprocket-chain-rear sprocket: 15-120-51

AFAM 520 XRR3-G

Lightly reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 500 cc / road and off-road

Technical data:
Pitch: 520
Pin length: 21.00 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78063

Suitable for

Triumph 501 - 750 cc Daytona 660 LG20/LG21 2024
Triumph 501 - 750 cc Daytona 660 LG20/LG21 2025
