AFAM chain kit for Triumph Daytona 675 06-12 520 XHR2G chain kit

AFAM chain set for Triumph Daytona 675 06-12 520 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Daytona 675 D67LC 2006-2012 conversion #520 chain kit

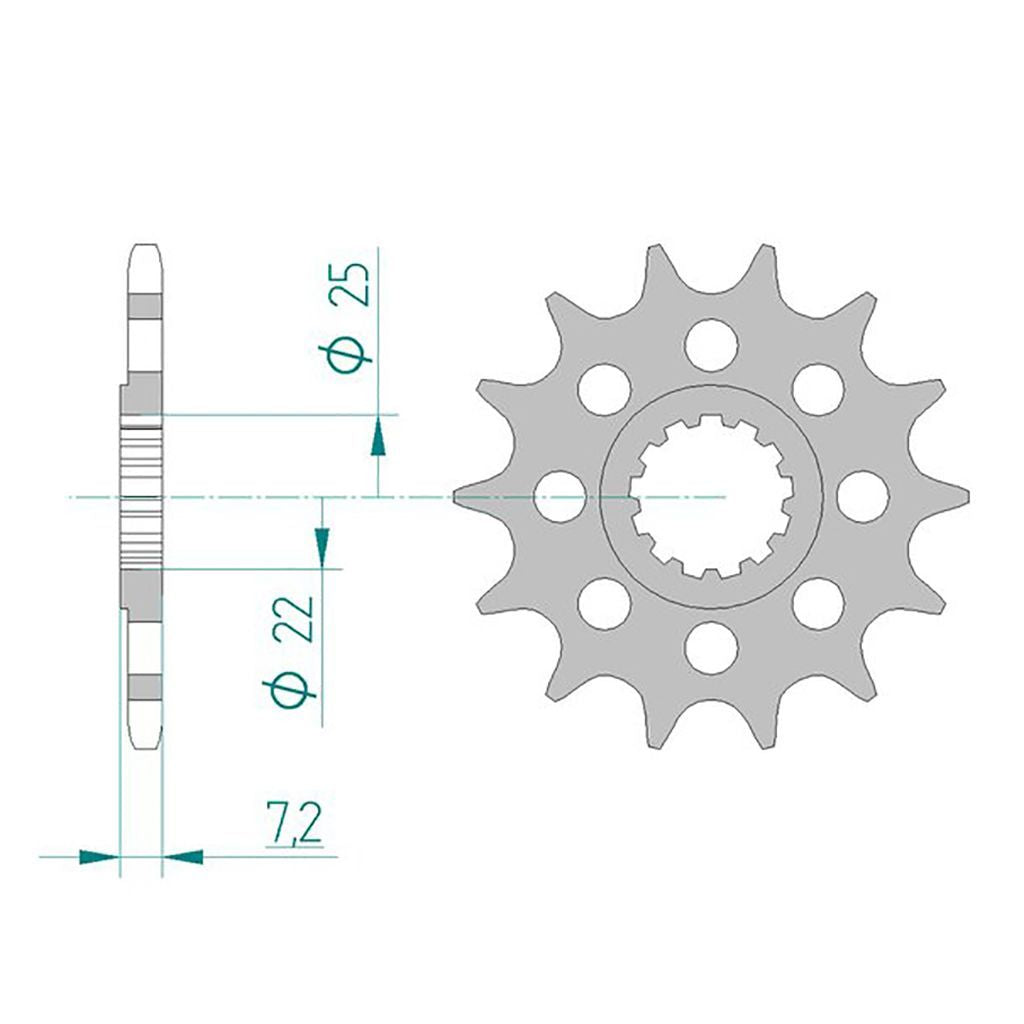

• Sprocket: AFAM sprocket #520 16 teeth - a28404.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 116 with rivet master link - a520xhr2.g.116

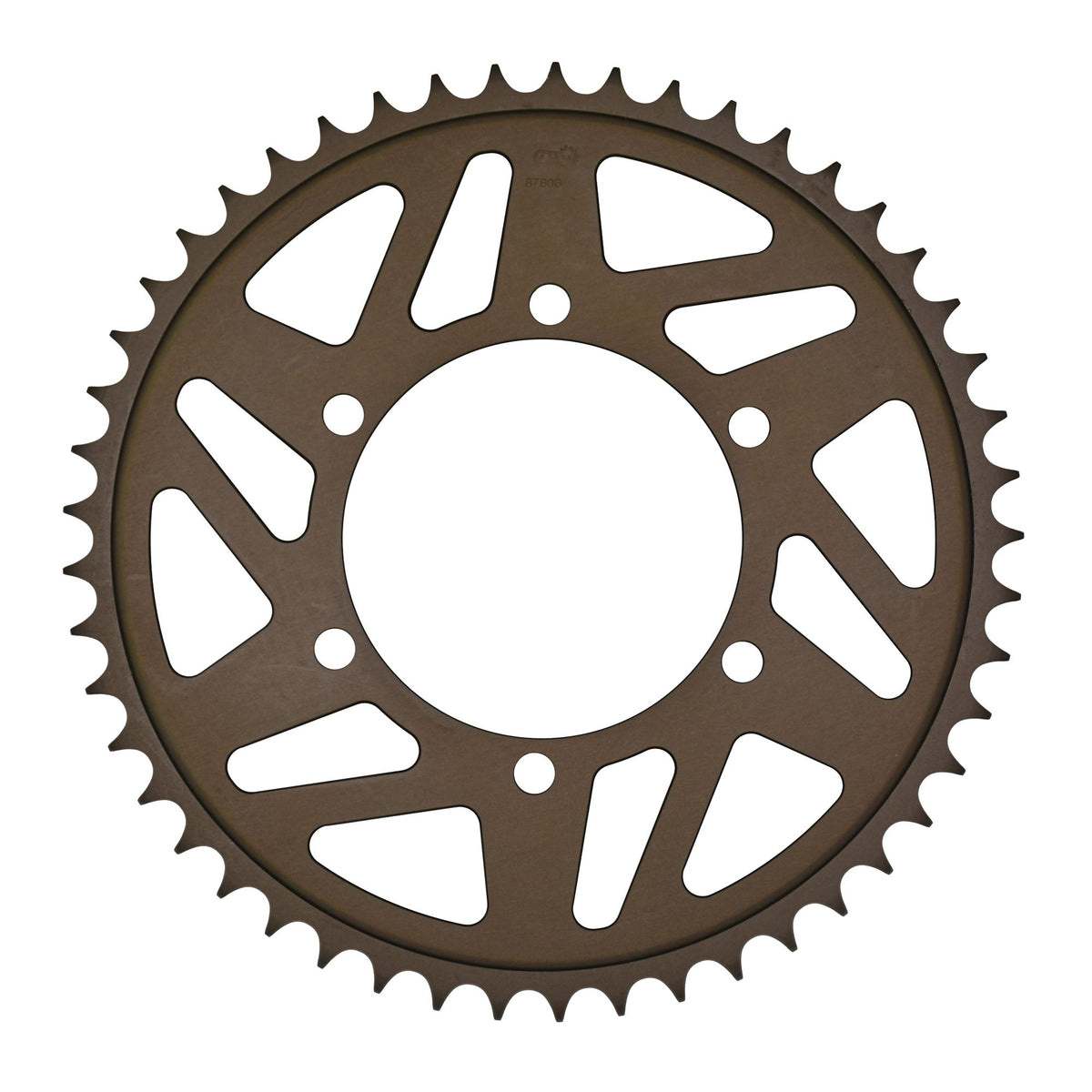

• Rear sprocket: AFAM aluminum sprocket #520 47 teeth - a87606.47
• Gear ratio sprocket-chain-rear sprocket: 16-116-47 conversion #520

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-51156

Suitable for

Triumph 501 - 750 cc Daytona 675 D67LC 2006
Triumph 501 - 750 cc Daytona 675 D67LC 2007
Triumph 501 - 750 cc Daytona 675 D67LC 2008
Triumph 501 - 750 cc Daytona 675 D67LC 2009
Triumph 501 - 750 cc Daytona 675 D67LC 2010
Triumph 501 - 750 cc Daytona 675 D67LC 2011
Triumph 501 - 750 cc Daytona 675 D67LC 2012
