AFAM chain kit for Triumph Daytona 765 Moto2 ABS 2020 525 XSR2G chain kit

AFAM chain kit for Triumph Daytona 765 Moto2 ABS 2020 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching rivet link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Triumph Daytona 765 Moto2 ABS HB06 2020-2020

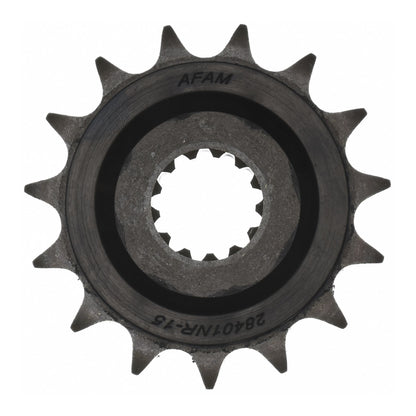

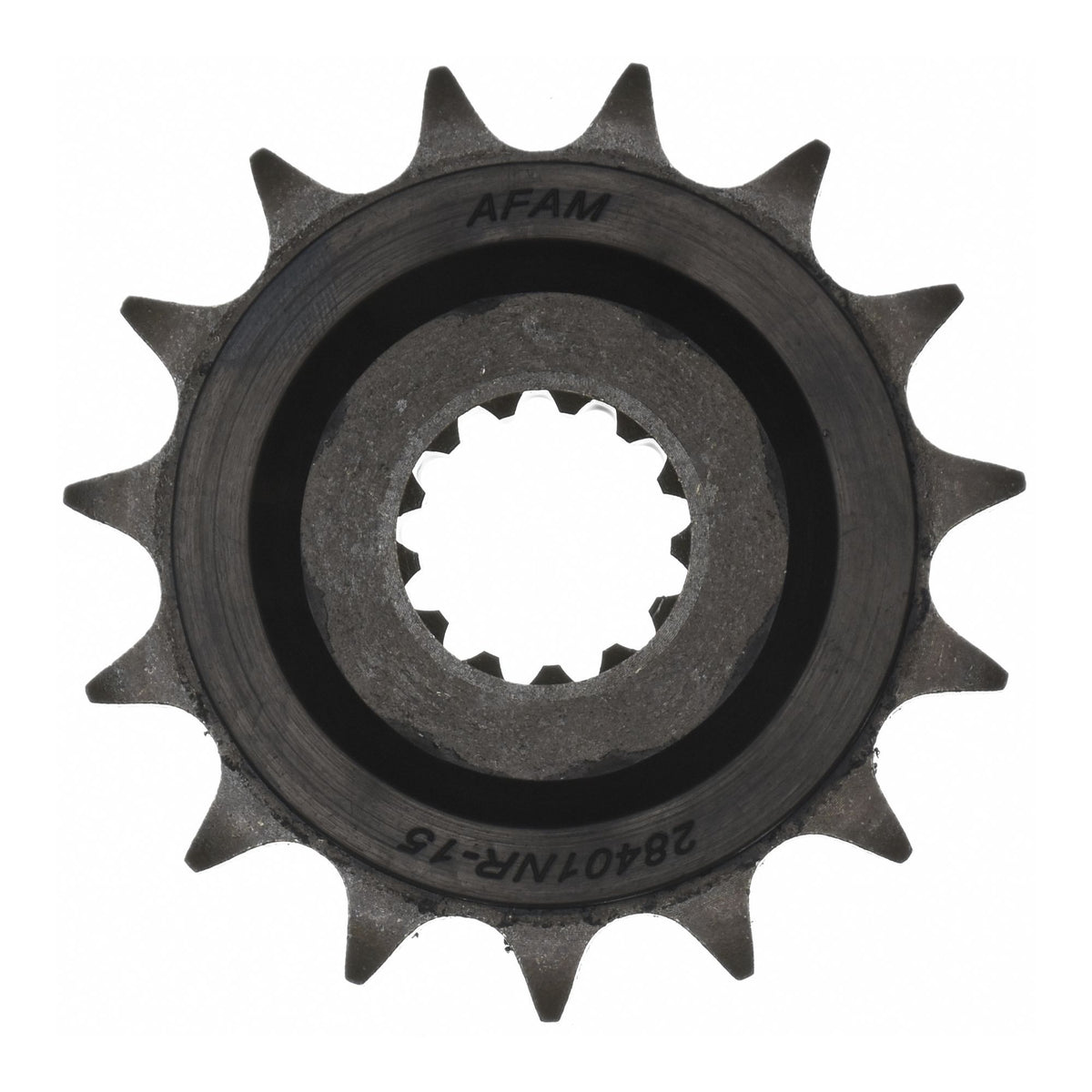

• Front sprocket: AFAM front sprocket 28401-15 rubberized #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 114 with rivet link - a525xsr2.g.114

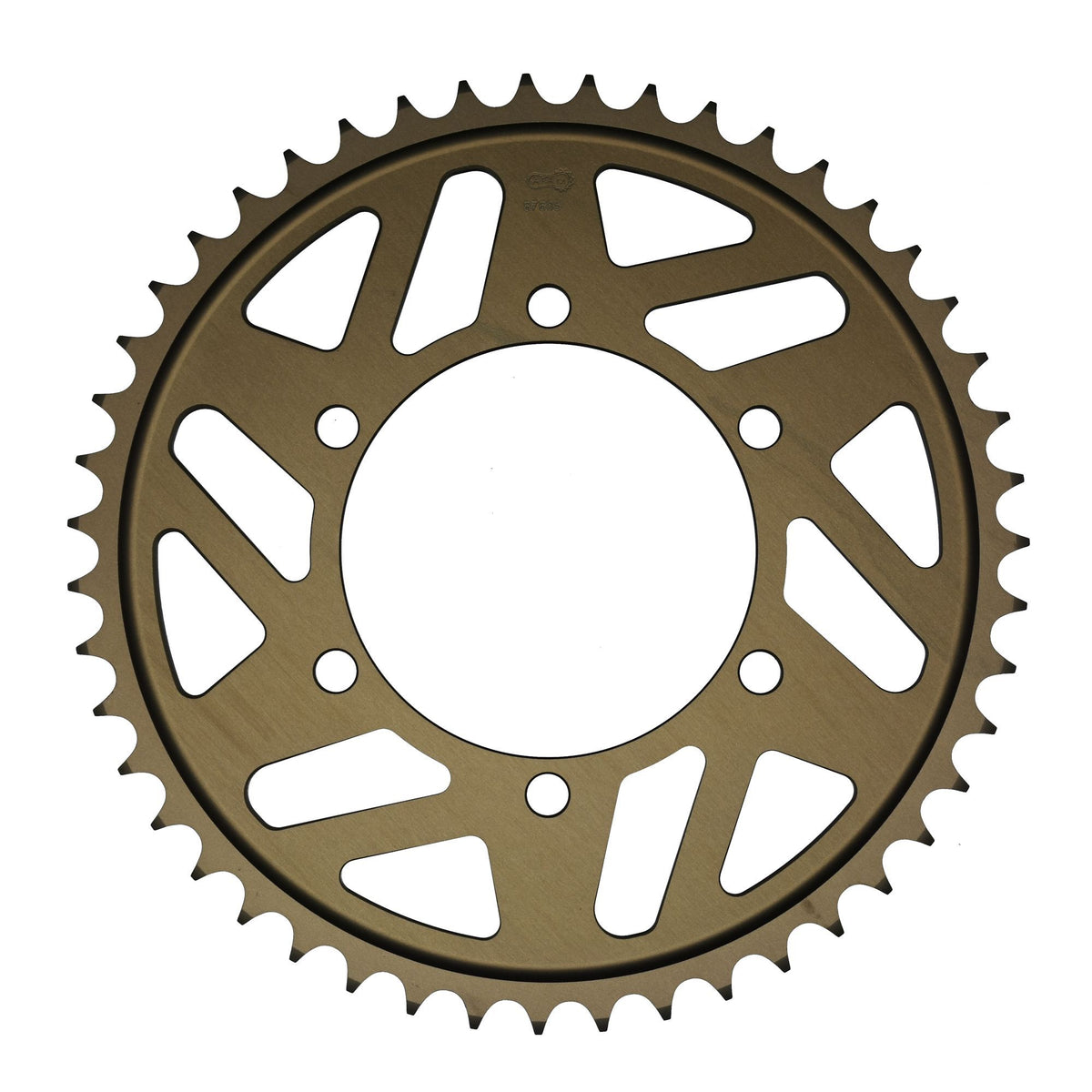

• Rear sprocket: AFAM rear sprocket ALU #525 47 teeth - a87605.47
• Gear ratio sprocket-chain-rear sprocket: 15-114-47

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-17037

Suitable for

Triumph 751 - 1000 cc Daytona 765 Moto2 ABS HB06 2020
