AFAM chain kit for Triumph Daytona 765 Moto2 ABS 2020 525 XSR2G chain kit

AFAM Chain Kit for Triumph Daytona 765 Moto2 ABS 2020 525 XSR2G Chain Kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Triumph Daytona 765 Moto2 ABS HB06 2020-2020

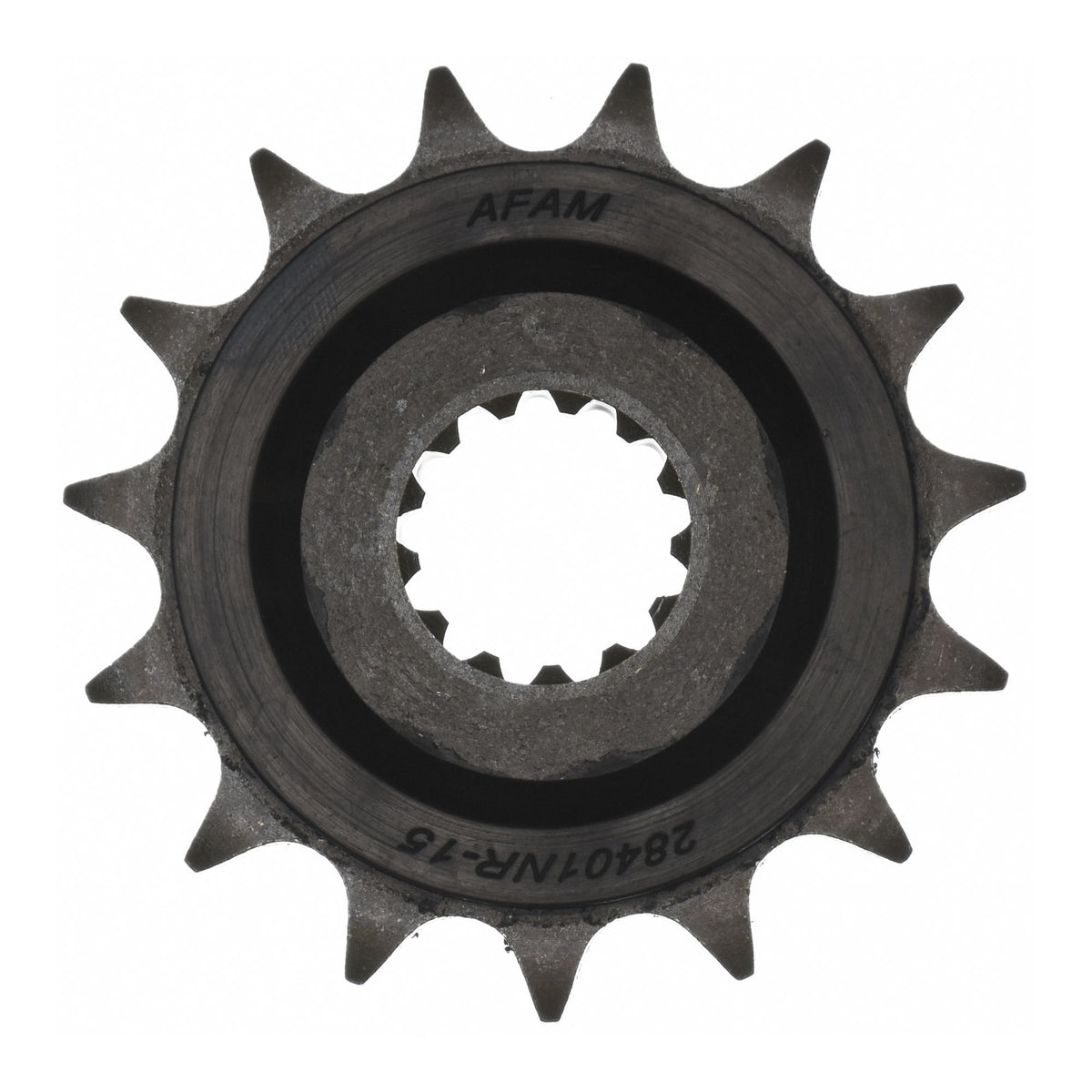

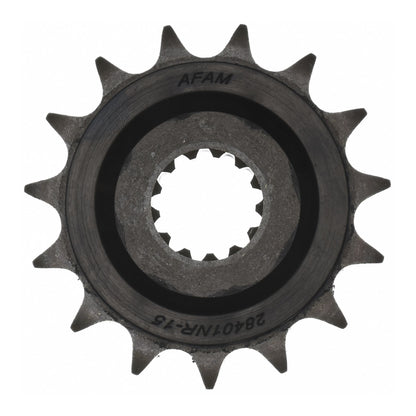

• Front sprocket: AFAM front sprocket 28401-15 rubberized #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-Ring 114 with rivet link - a525xsr2.g.114
• Rear sprocket: AFAM rear sprocket STEEL #525 47 teeth - a86605.47
• Gear ratio front sprocket-chain-rear sprocket: 15-114-47

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-17441

Suitable for

Triumph 751 - 1000 cc Daytona 765 Moto2 ABS HB06 2020
