AFAM chain kit for Triumph Daytona 900 94-97 530 XMR3 chain kit

AFAM chain kit for Triumph Daytona 900 94-97 530 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Triumph Daytona 900 T300 1994-1997 chain kit

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 17 teeth - a88800.17
• Chain: AFAM chain 530 XMR3 Xs-ring 110 w. rivet link - a530xmr3.110
• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a86600.46
• Gear ratio sprocket-chain-rear sprocket: 17-110-46

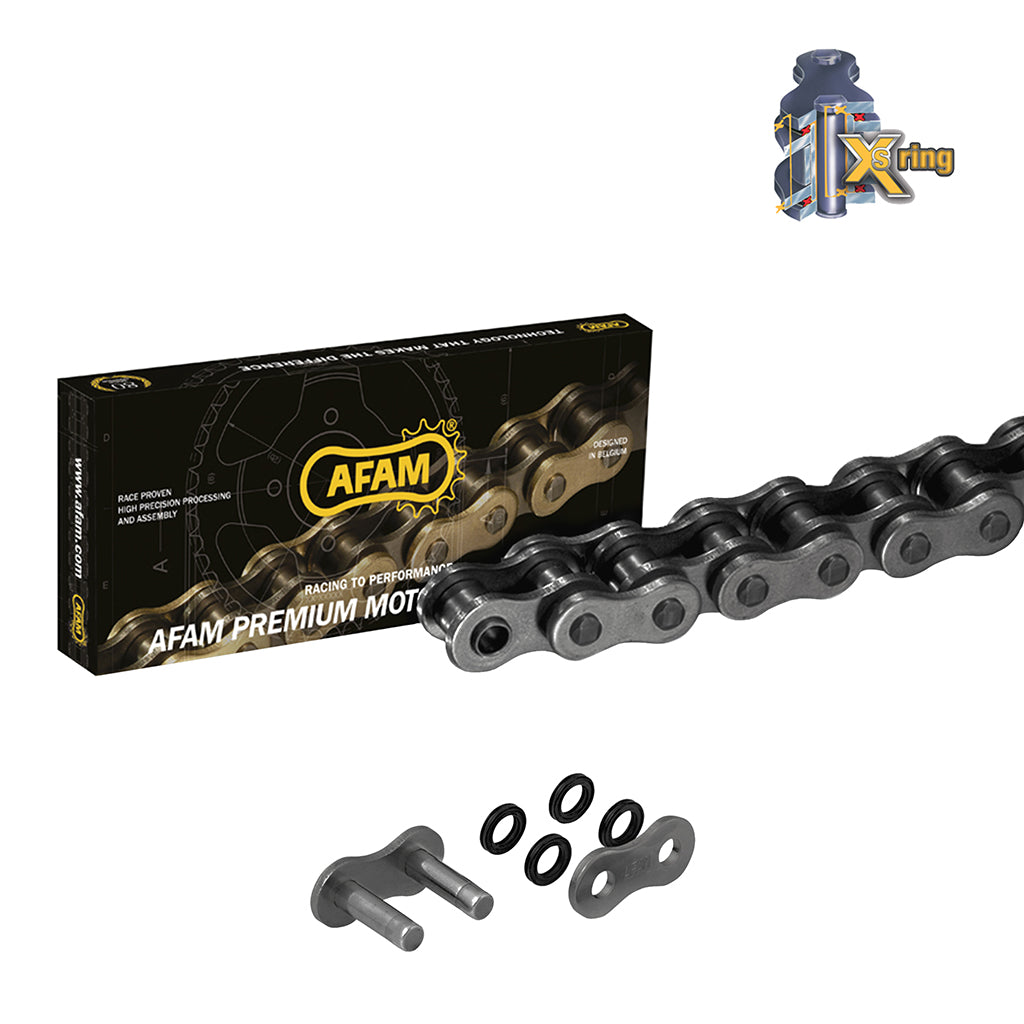

AFAM 530 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical data:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-78149

Suitable for

Triumph 751 - 1000 cc Daytona 900 T300 1994
Triumph 751 - 1000 cc Daytona 900 T300 1995
Triumph 751 - 1000 cc Daytona 900 T300 1996
Triumph 751 - 1000 cc Daytona 900 T300 1997
