AFAM chain set for Triumph Daytona 955i 2002 530 XHR2G chain kit

AFAM chain kit for Triumph Daytona 955 i 2002 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Mention of the manufacturer is only for the purpose of indicating compatibility!

Components of the chain kit Triumph Daytona 955 i T595N 2002-2002

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XHR2-G Xs-ring 106 with rivet link - a530xhr2.g.106

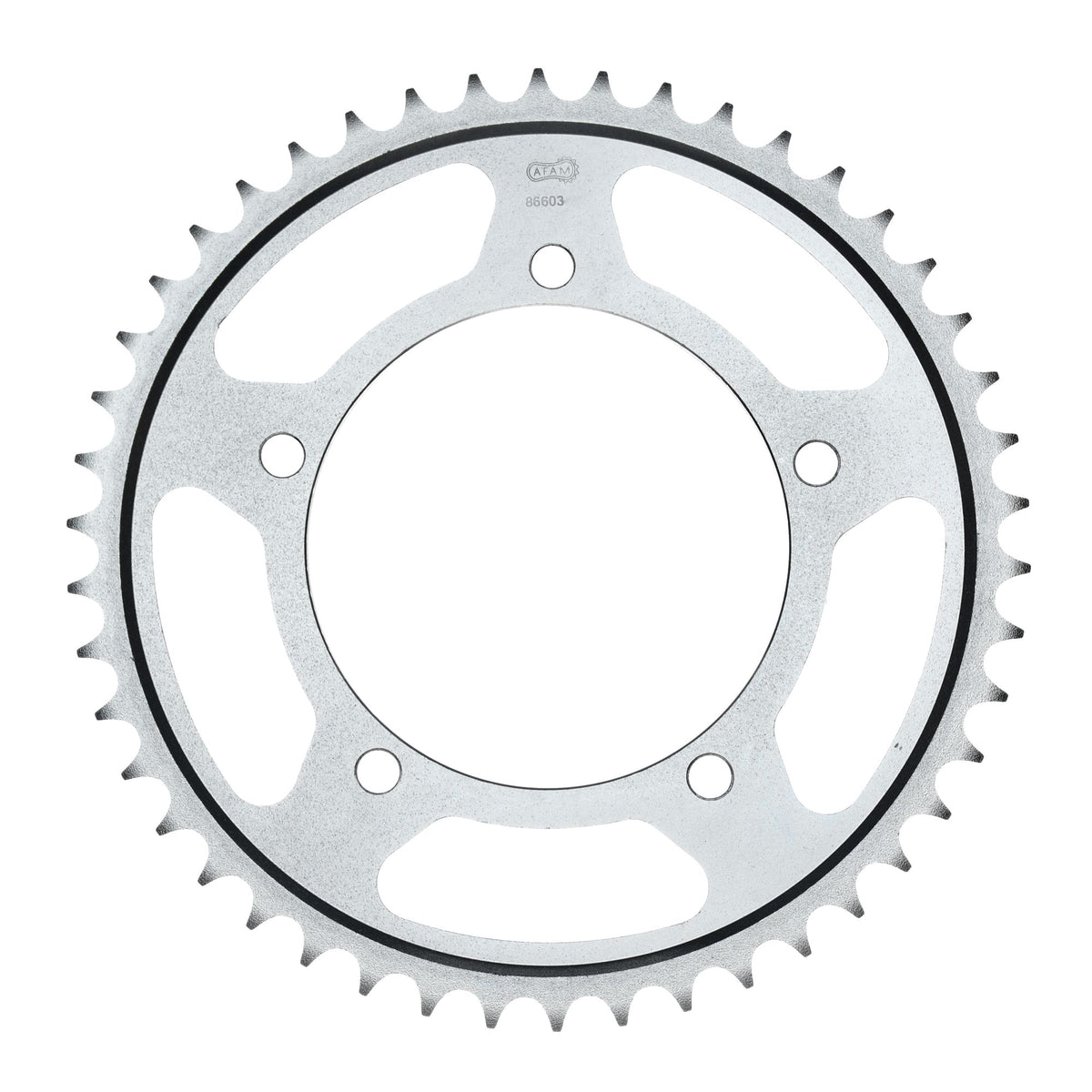

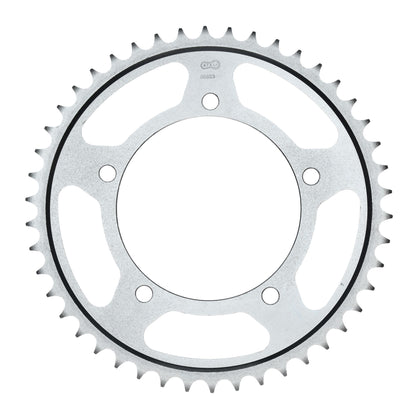

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a86603.44
• Gear ratio front sprocket-chain-rear sprocket: 19-106-44

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running characteristics. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-17617

Suitable for

Triumph 751 - 1000 cc Daytona 955 i T595N 2002
