AFAM chain kit for Triumph Daytona 955 i 99-01 530 XSR2G chain kit

AFAM chain kit for Triumph Daytona 955 i 99-01 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

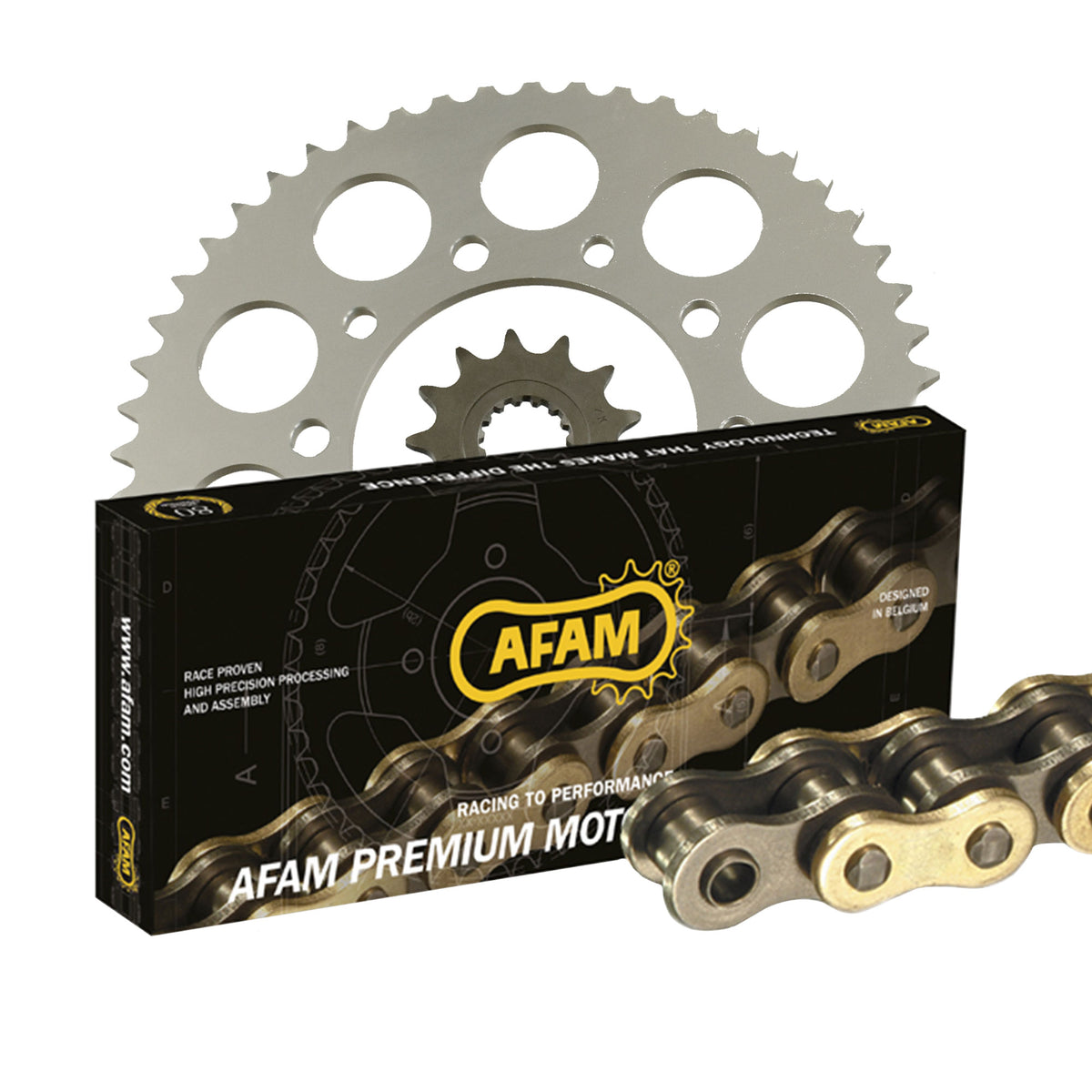

Components of the chain kit Triumph Daytona 955 i T595 1999-2001

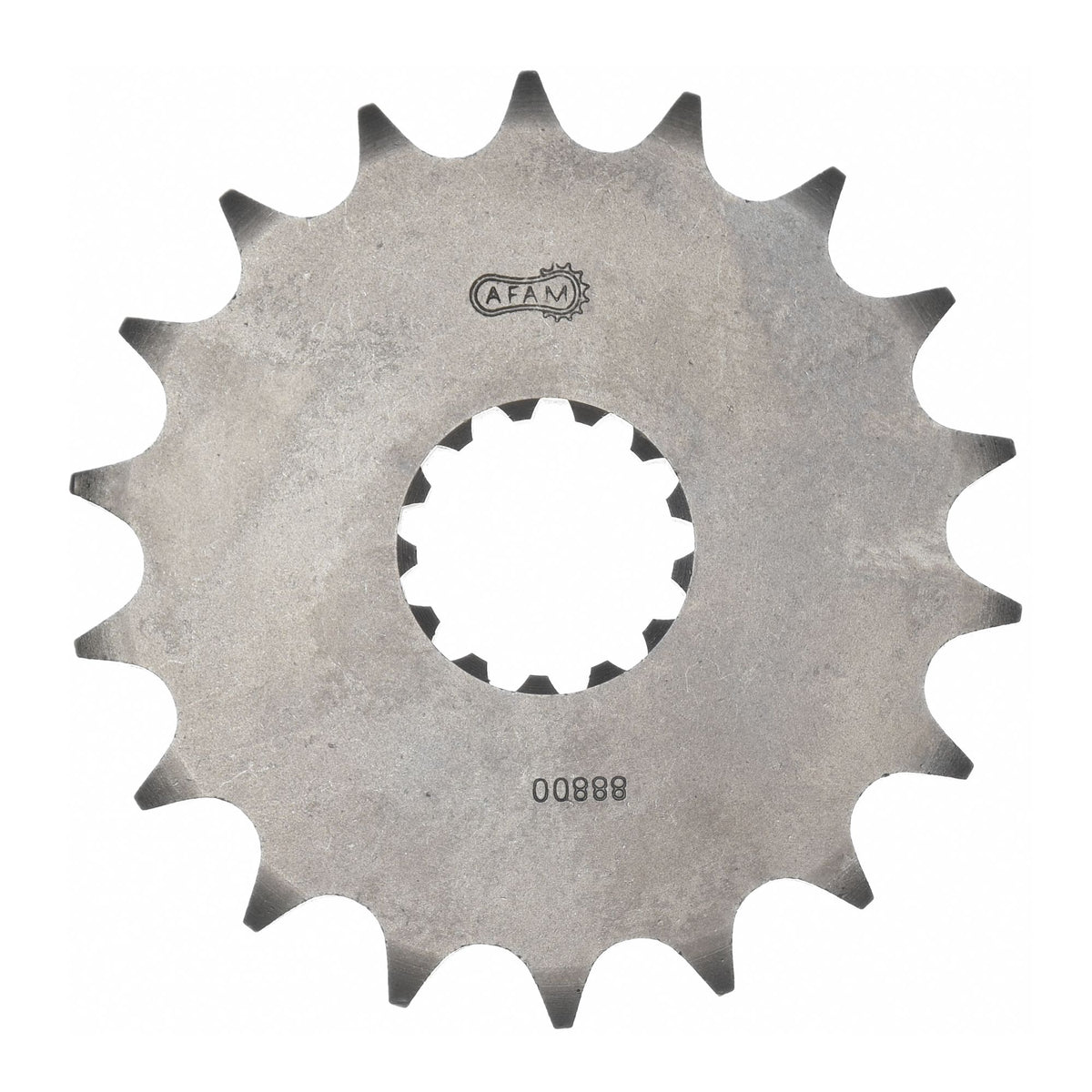

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18

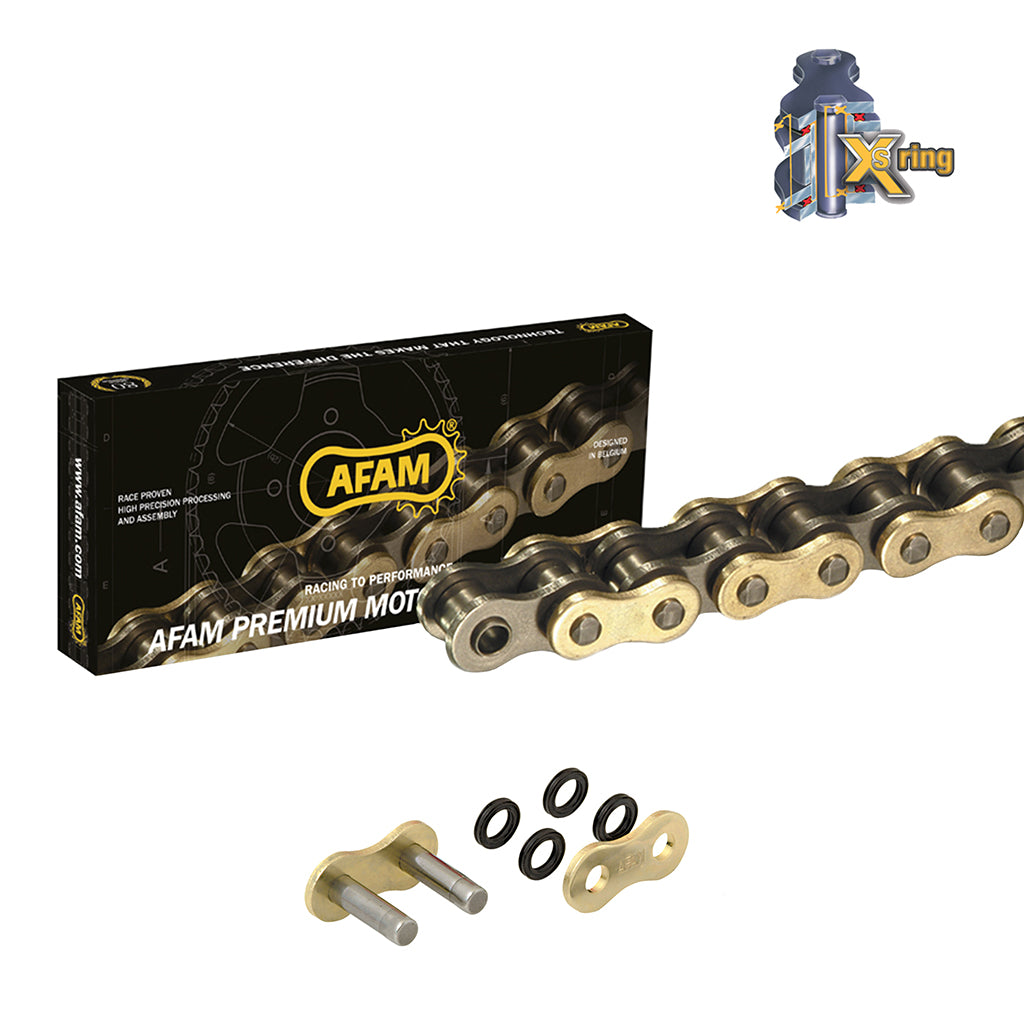

• Chain: AFAM chain 530 XSR2-G Xs-Ring 108 w/ rivet link - a530xsr2.g.108

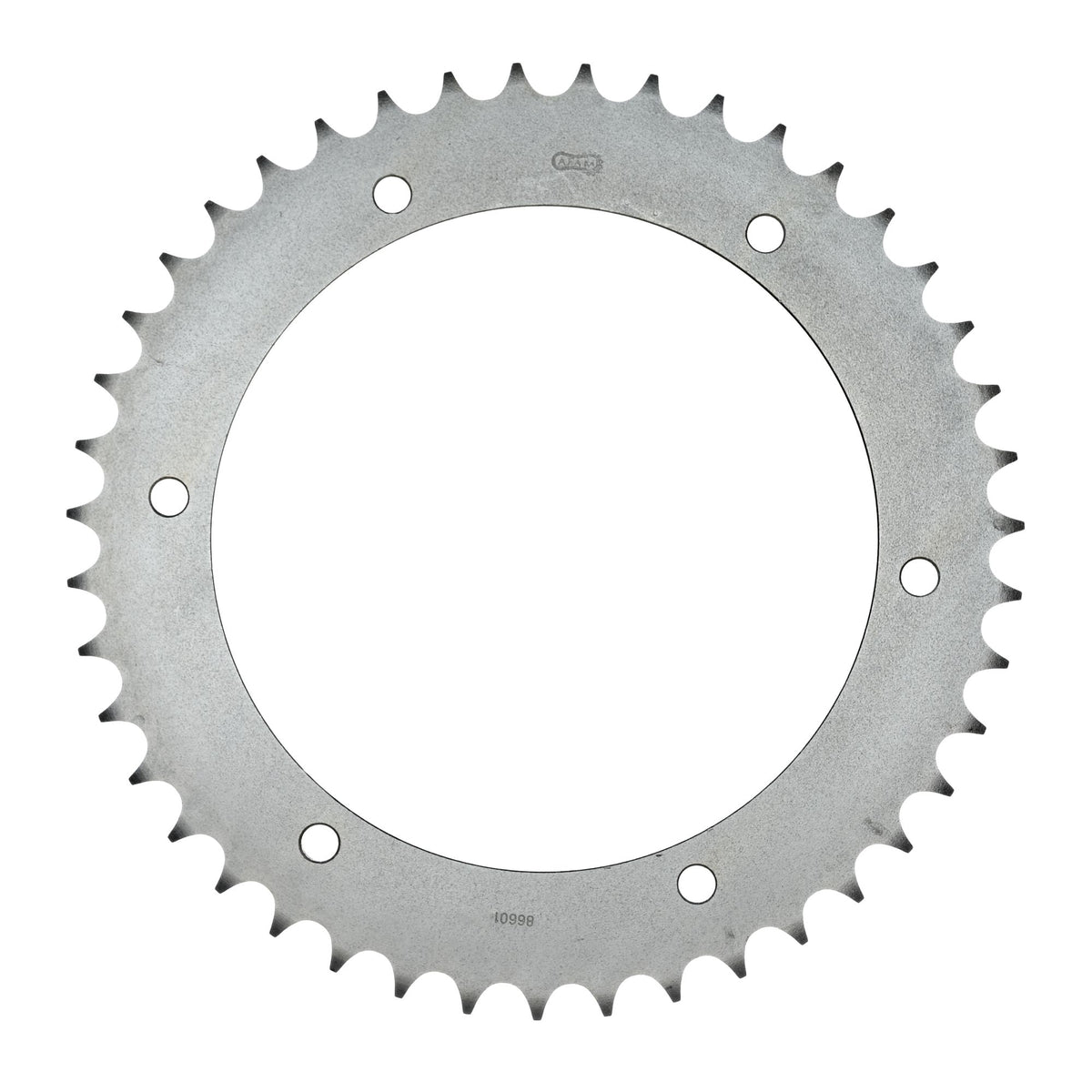

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86601.43
• Gear ratio front sprocket-chain-rear sprocket: 18-108-43

AFAM 530 XSR2-G

Super reinforced chain with smooth running properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-17616

Fits

Triumph 751 - 1000 cc Daytona 955 i T595 1999
Triumph 751 - 1000 cc Daytona 955 i T595 2000
Triumph 751 - 1000 cc Daytona 955 i T595 2001
