AFAM chain kit for Triumph Legend 900 TT 99-01 530 XHR2G chain kit

AFAM Chain Kit for Triumph Legend 900 TT 99-01 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - the manufacturer's name is only mentioned to indicate compatibility!

Components of the chain kit Triumph Legend 900 TT T309RT 1999-2001

• Sprocket: AFAM sprocket #530 TRI 900-1200 17 teeth - a88800.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 114 with rivet link - a530xhr2.g.114

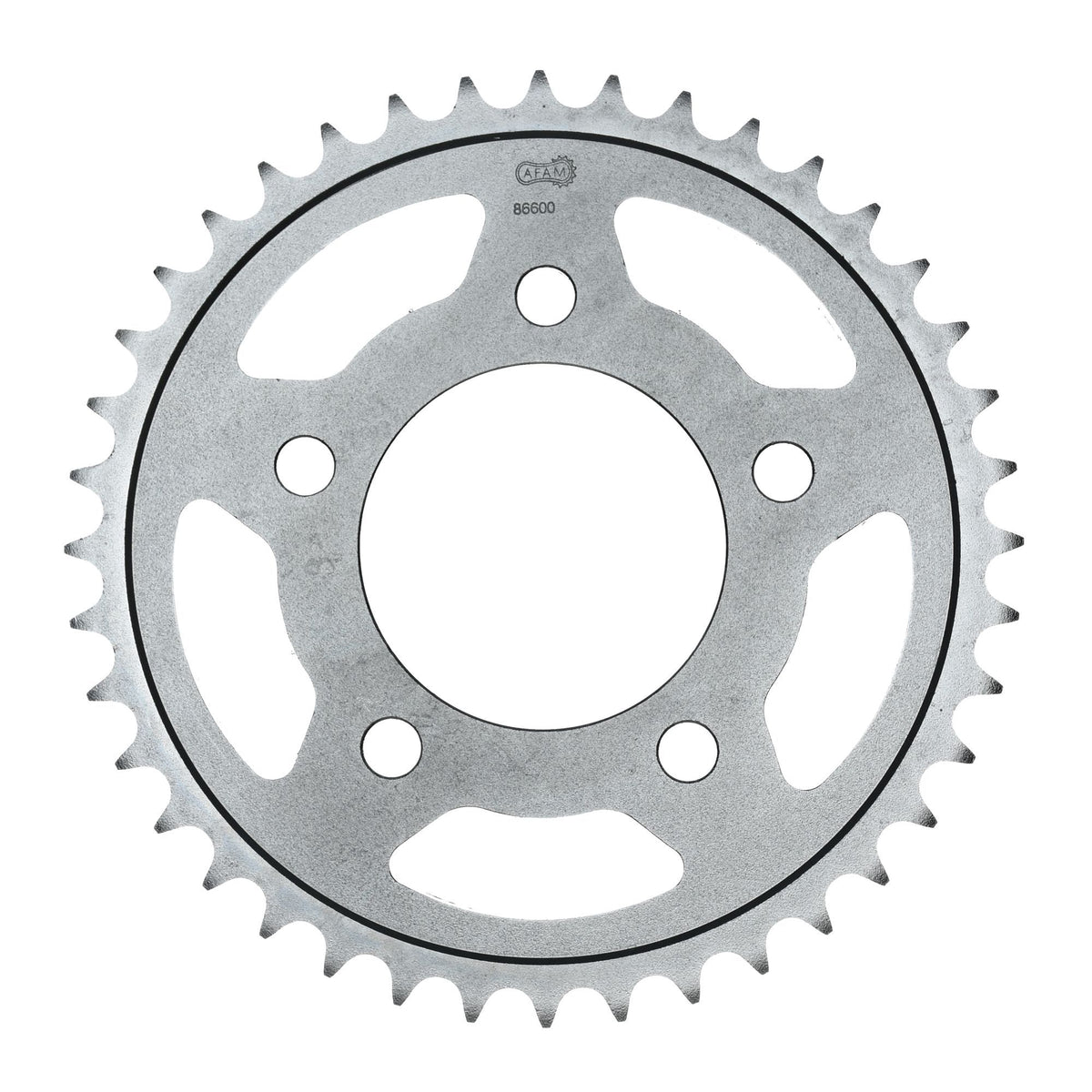

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86600.43
• Gear ratio sprocket-chain-rear sprocket: 17-114-43

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51296

Suitable for

Triumph 751 - 1000 cc Legend 900 TT T309RT 1999
Triumph 751 - 1000 cc Legend 900 TT T309RT 2000
Triumph 751 - 1000 cc Legend 900 TT T309RT 2001
