AFAM chain kit for Triumph Scrambler 1200 XC ABS 22-23 525 XSR2G chain kit

AFAM Chain Kit for Triumph Scrambler 1200 XC ABS 22-23 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Scrambler 1200 XC ABS DS04 2022-2023 chain kit

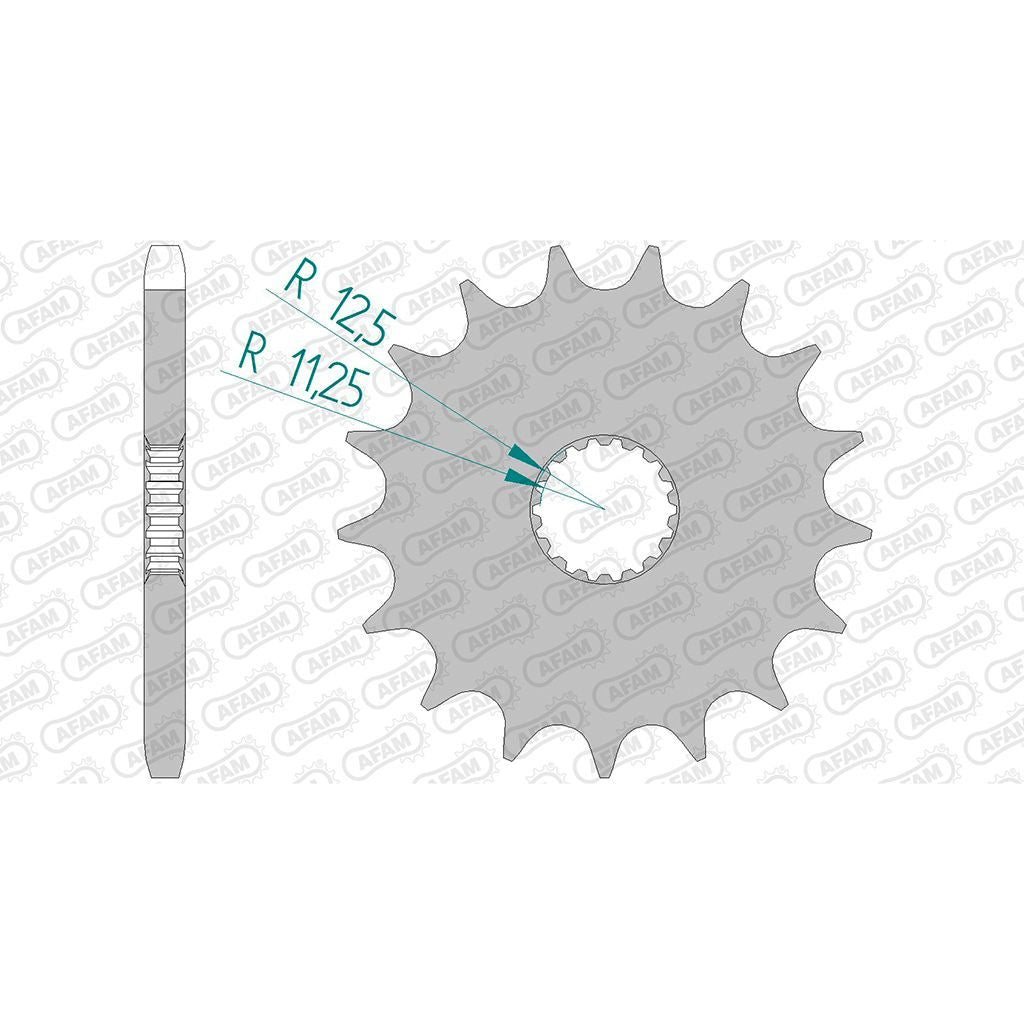

• Front sprocket: AFAM front sprocket #525 16 teeth - a88900.16
• Chain: AFAM chain 525 XSR2-G Xs-Ring 110 w/ rivet link - a525xsr2.g.110
• Rear sprocket: AFAM STEEL rear sprocket #525 - a86605.44
• Gear ratio front sprocket-chain-rear sprocket: 16-110-44

AFAM 525 XSR2-G

Super reinforced chain with smooth running properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78207

Suitable for

Triumph over 1001 cc Scrambler 1200 XC ABS DS04 2022
Triumph over 1001 cc Scrambler 1200 XC ABS DS04 2023
