AFAM chain kit for Triumph Scrambler 1200 XE ABS 22-23 525 XHR3G chain kit

AFAM chain kit for Triumph Scrambler 1200 XE ABS 22-23 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit Triumph Scrambler 1200 XE ABS DS04 2022-2023

• Front sprocket: AFAM front sprocket #525 16 teeth - a88900.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 114 with rivet link - a525xhr3.g.114

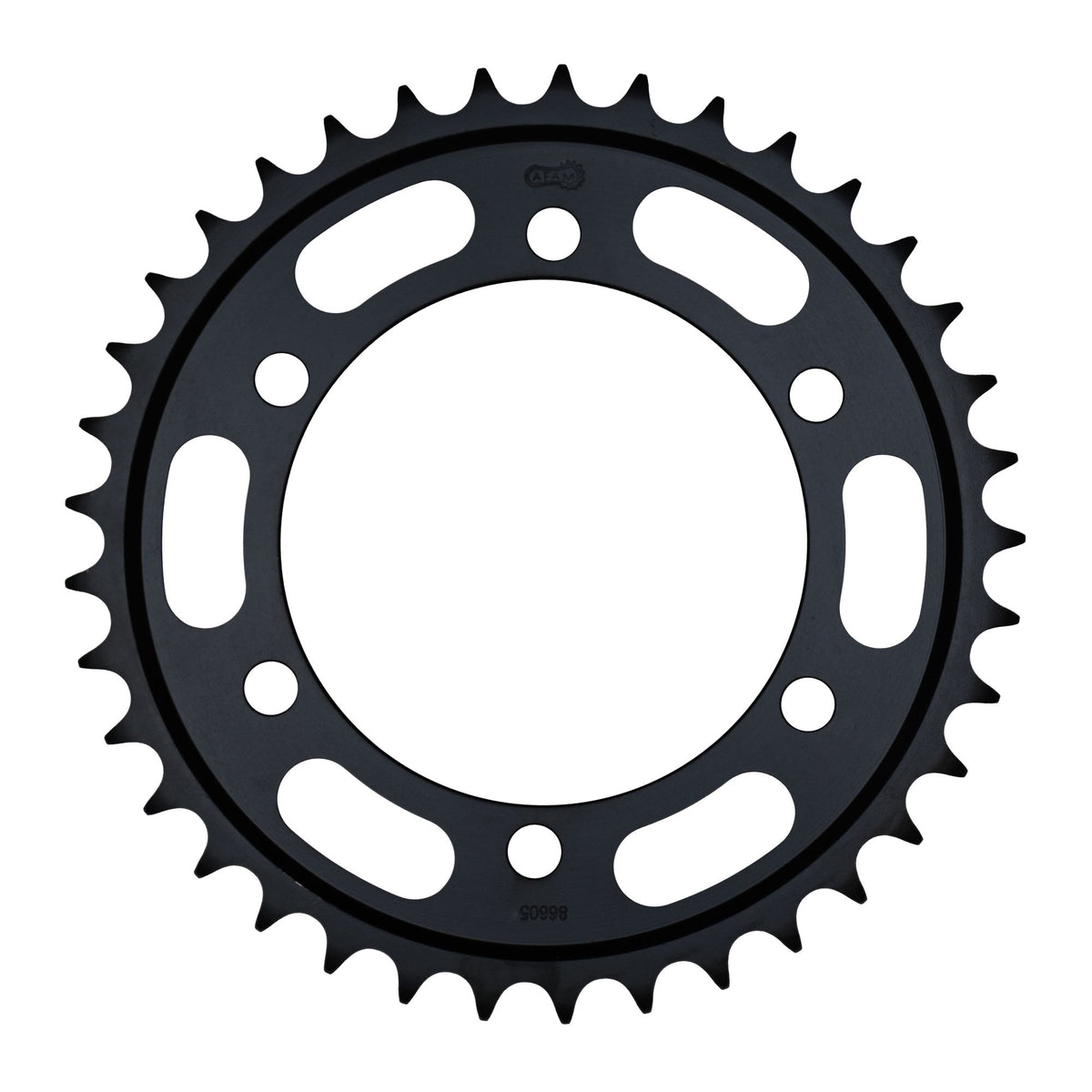

• Rear sprocket: AFAM rear sprocket STEEL #525 - a86605.44
• Gear ratio front sprocket-chain-rear sprocket: 16-114-44

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-78208

Fits

Triumph over 1001 cc Scrambler 1200 XE ABS DS04 2022
Triumph over 1001 cc Scrambler 1200 XE ABS DS04 2023
