AFAM chain kit for Triumph Scrambler 1200 XE ABS 22-23 525 XSR2G chain kit

AFAM chain kit for Triumph Scrambler 1200 XE ABS 22-23 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only for the purpose of indicating compatibility!

Components of the chain kit Triumph Scrambler 1200 XE ABS DS04 2022-2023

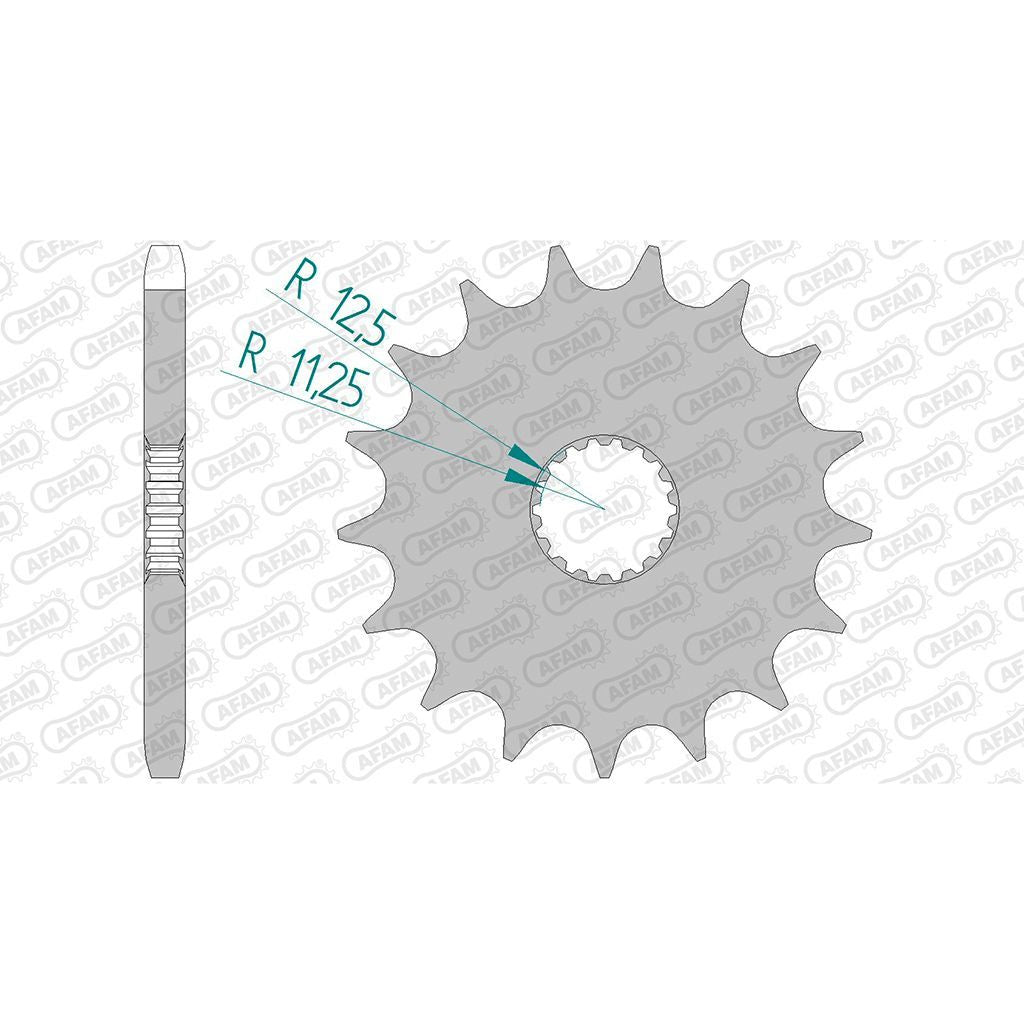

• Front sprocket: AFAM front sprocket #525 16 teeth - a88900.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 114 with rivet link - a525xsr2.g.114

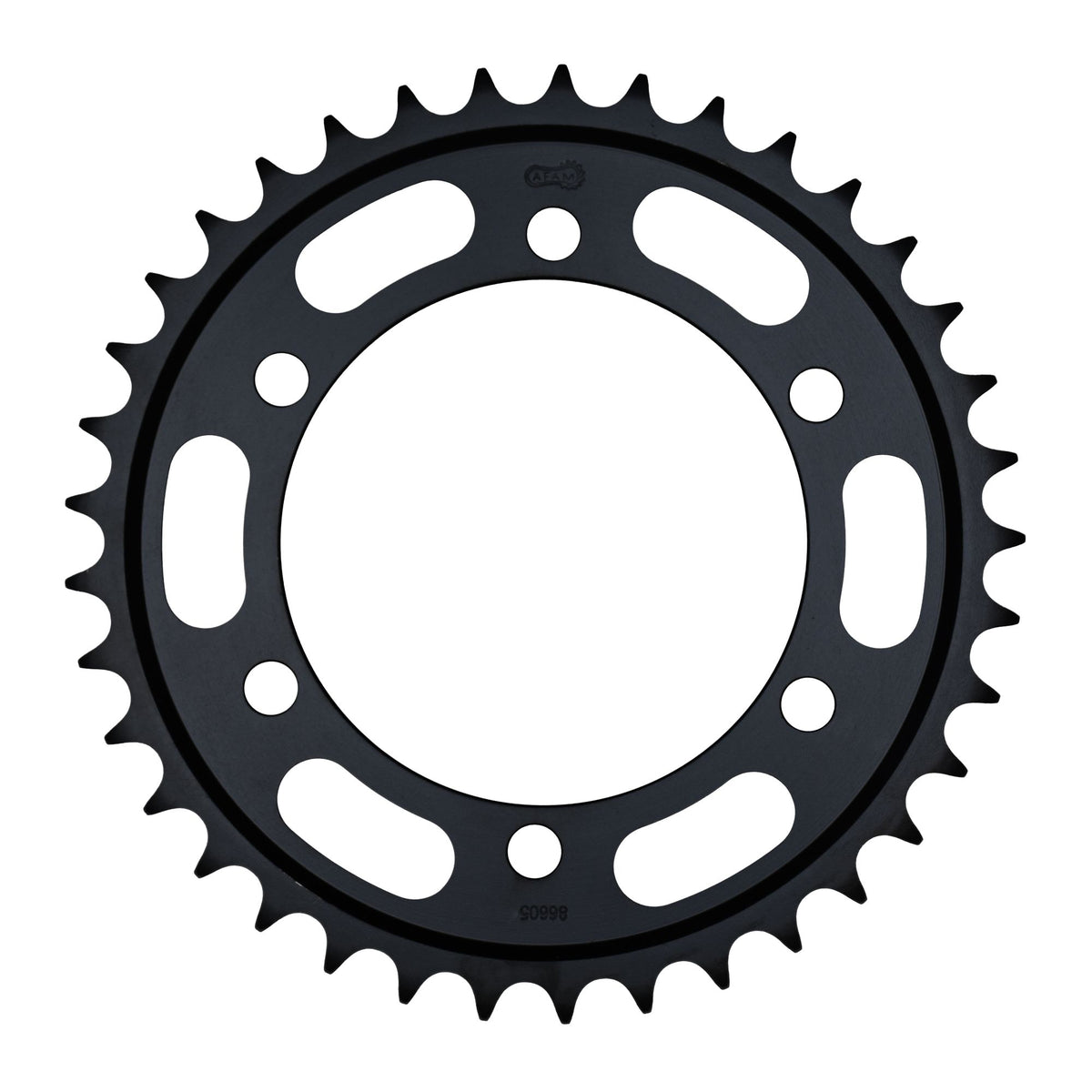

• Rear sprocket: AFAM STEEL rear sprocket #525 - a86605.44
• Gear ratio front sprocket-chain-rear sprocket: 16-114-44

AFAM 525 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78204

Suitable for

Triumph over 1001 cc Scrambler 1200 XE ABS DS04 2022
Triumph over 1001 cc Scrambler 1200 XE ABS DS04 2023
