AFAM chain kit for Triumph Scrambler 400 X 2024 520 XRR3G chain kit

AFAM Chain Kit for Triumph Scrambler 400 X 2024 520 XRR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Scrambler 400 X T010 2024-2024

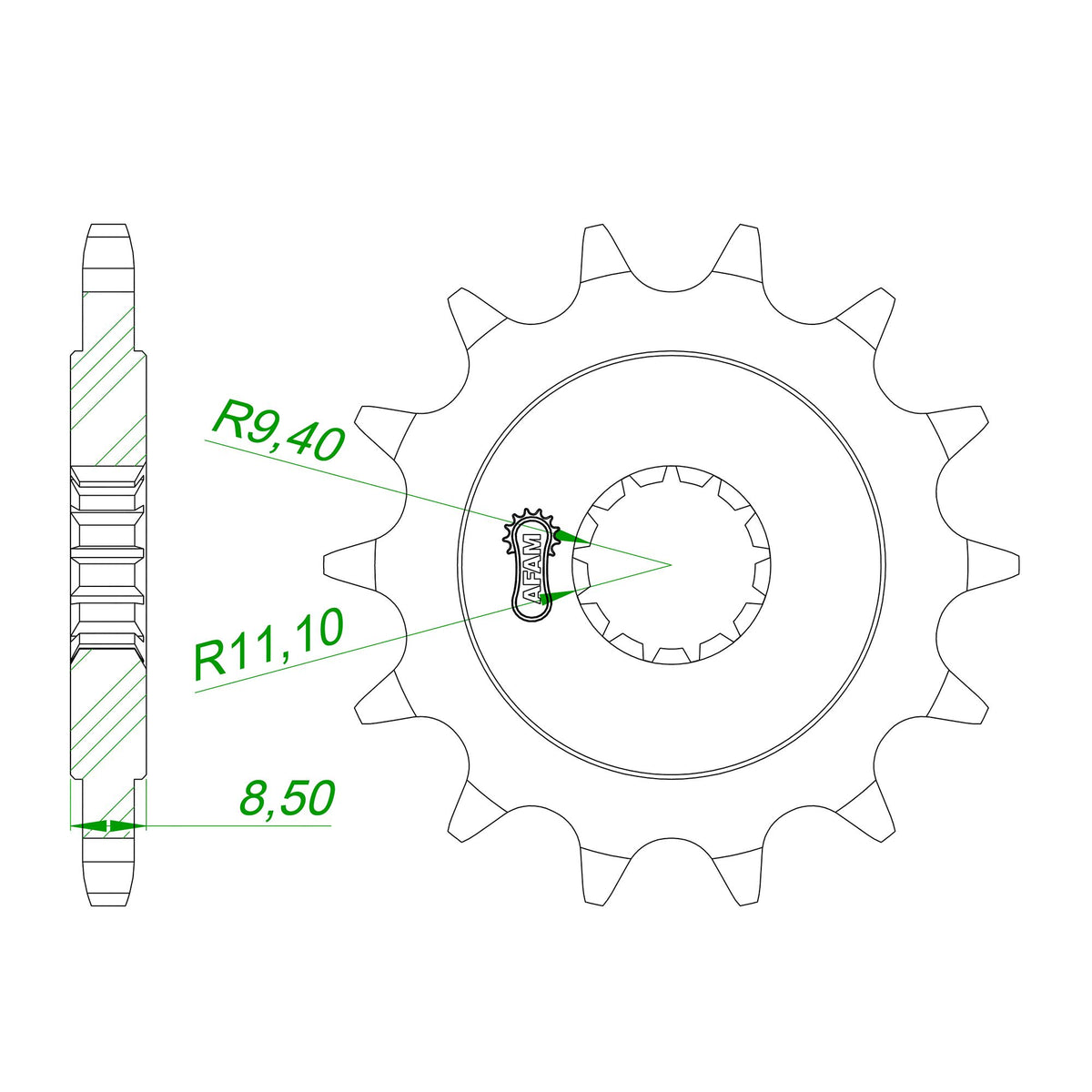

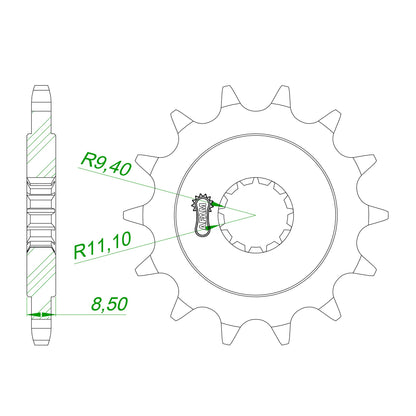

• Front sprocket: AFAM sprocket #520 14 teeth - a88401.14
• Chain: AFAM chain 520 XRR3-G Xs-Ring 104 links w. clip-type master link - a520xrr3.g.104

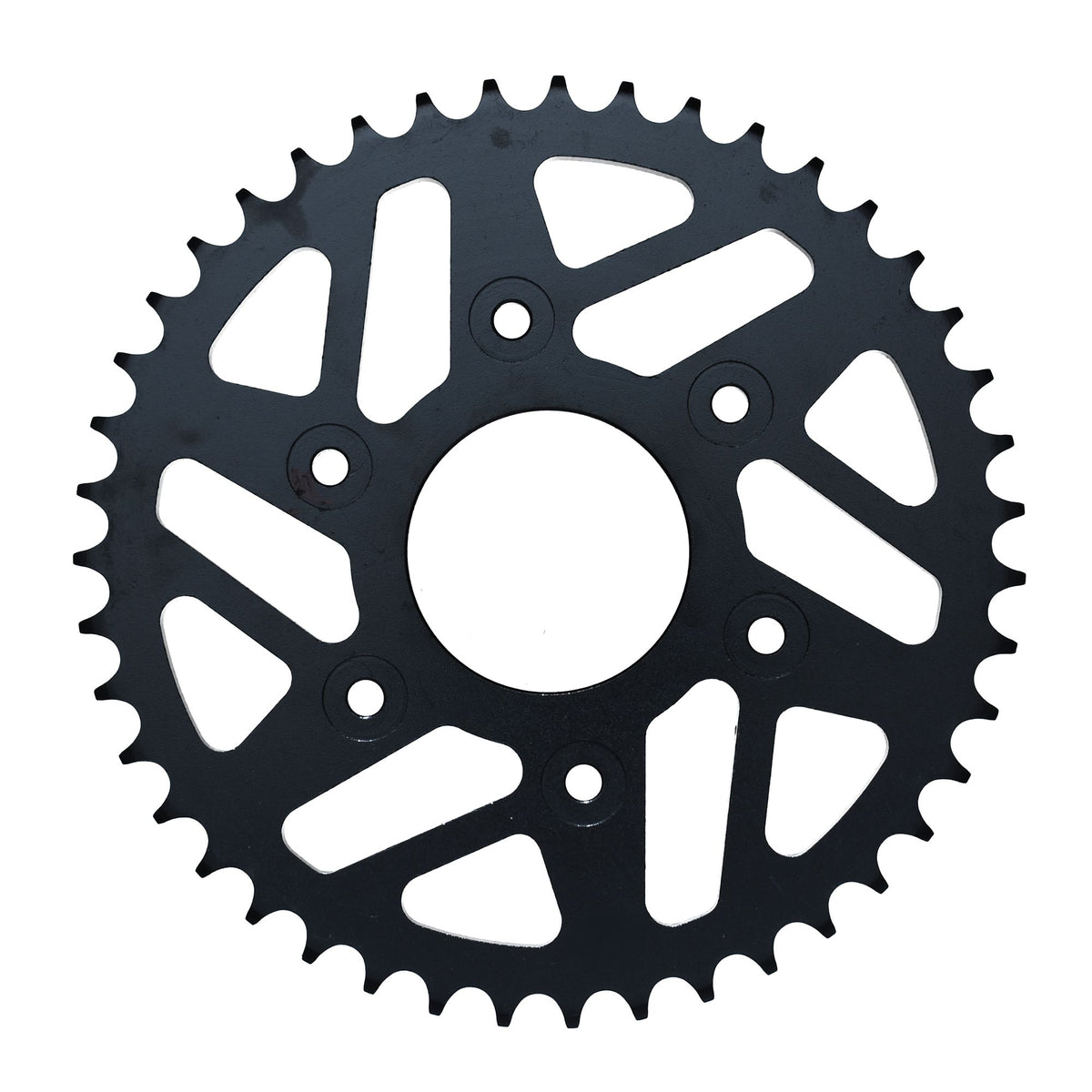

• Rear sprocket: AFAM sprocket STEEL #520 43 teeth - a86400.43
• Transmission ratio sprocket-chain-rear sprocket: 14-104-43

AFAM 520 XRR3-G

Lightly reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 500 cc / road and off-road

Technical data:
Pitch: 520
Pin length: 21.00 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical Data

Brand	AFAM
Item number	KKF-78352

Suitable for

Triumph 251 - 500 cc Scrambler 400 X T010 2024
