AFAM chain kit for Triumph Scrambler 865 2015 520 XSRG chain kit

AFAM chain kit for Triumph Scrambler 865 2015 520 XSRG chain kit

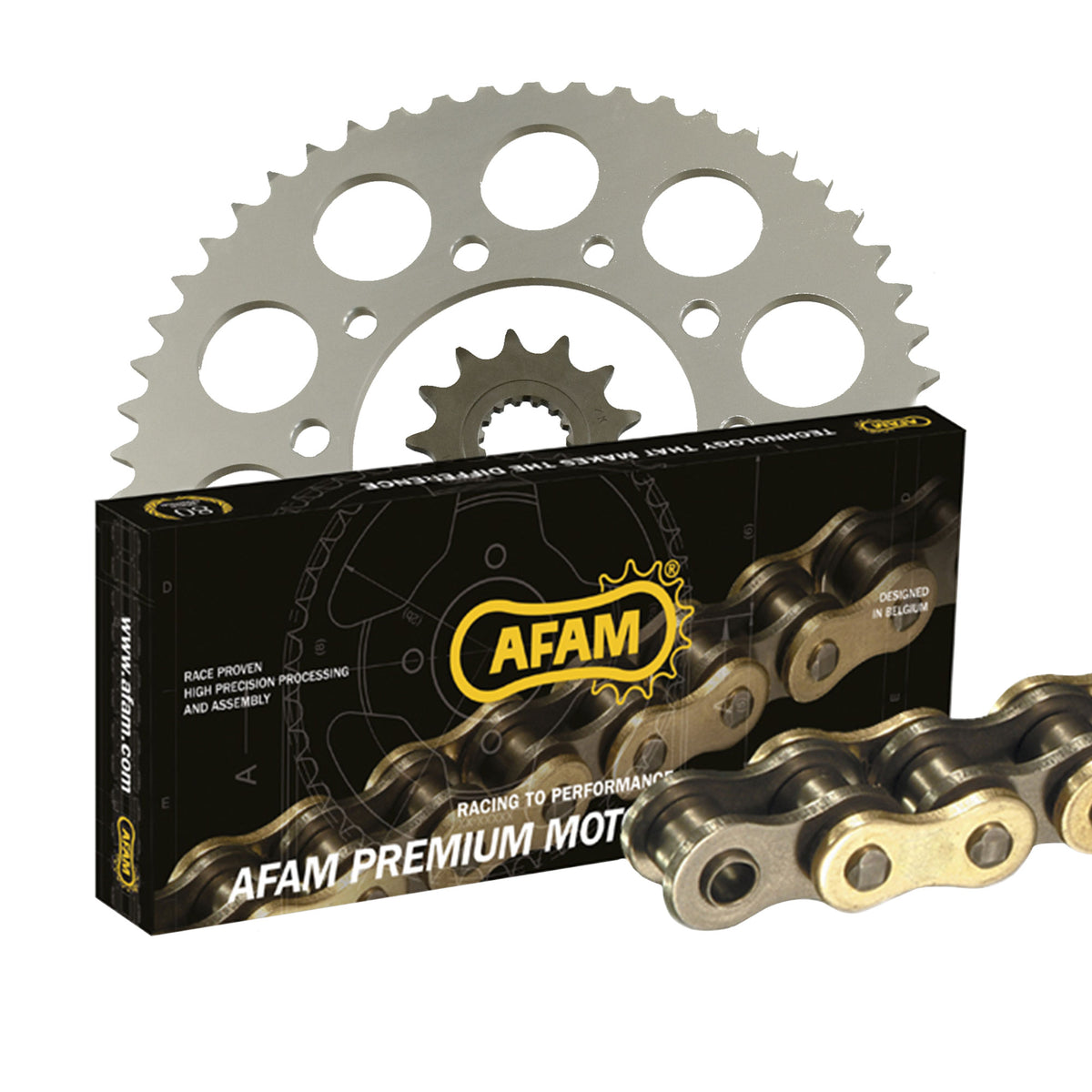

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Check components of the chain kit for Triumph Scrambler 865 986MG2 2015-2015 on the vehicle, series with 520 chain pitch

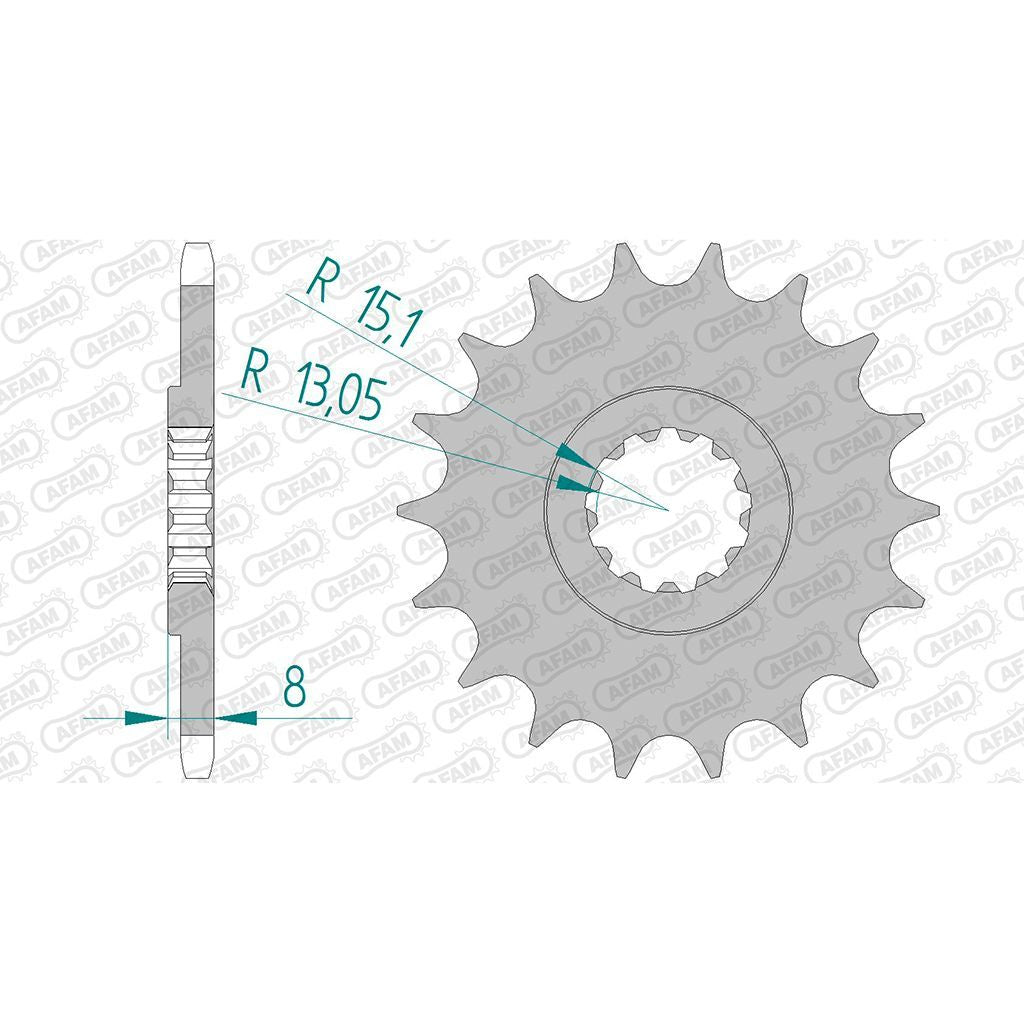

• Sprocket: AFAM sprocket #520 18 teeth - a88802.18

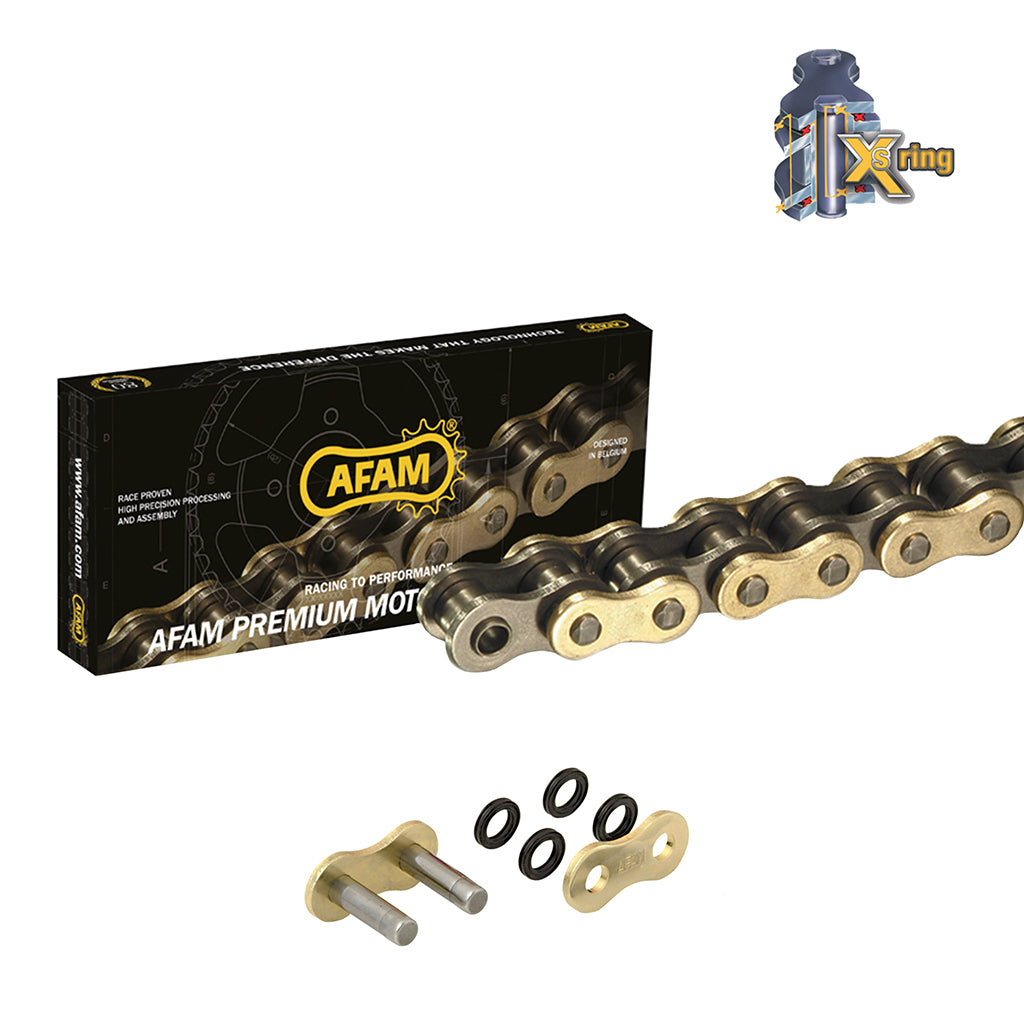

• Chain: AFAM chain 520 XSR-G Xs-Ring 112 with rivet link - a520xsr.g.112

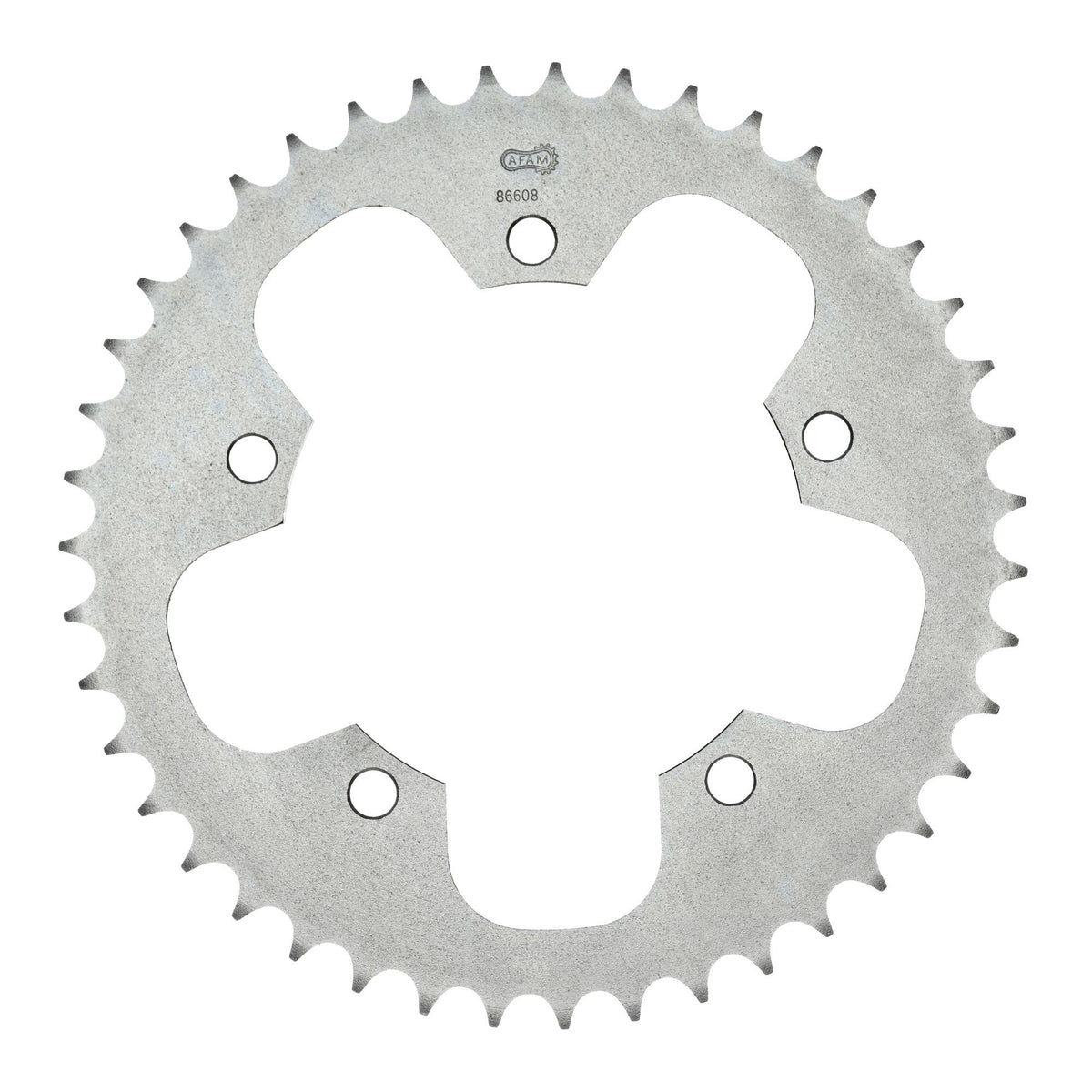

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a86608.43
• Transmission ratio sprocket-chain-rear sprocket: 18-112-43 check on vehicle, series with 520 chain pitch

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51254

Fits

Triumph 751 - 1000 cc Scrambler 865 986MG2 2015
