AFAM chain kit for Triumph Speed Triple 1050 ABS 11-15 530 XSR2G chain kit

AFAM chain kit for Triumph Speed Triple 1050 ABS 11-15 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Speed Triple 1050 ABS 515NV 2011-2015

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

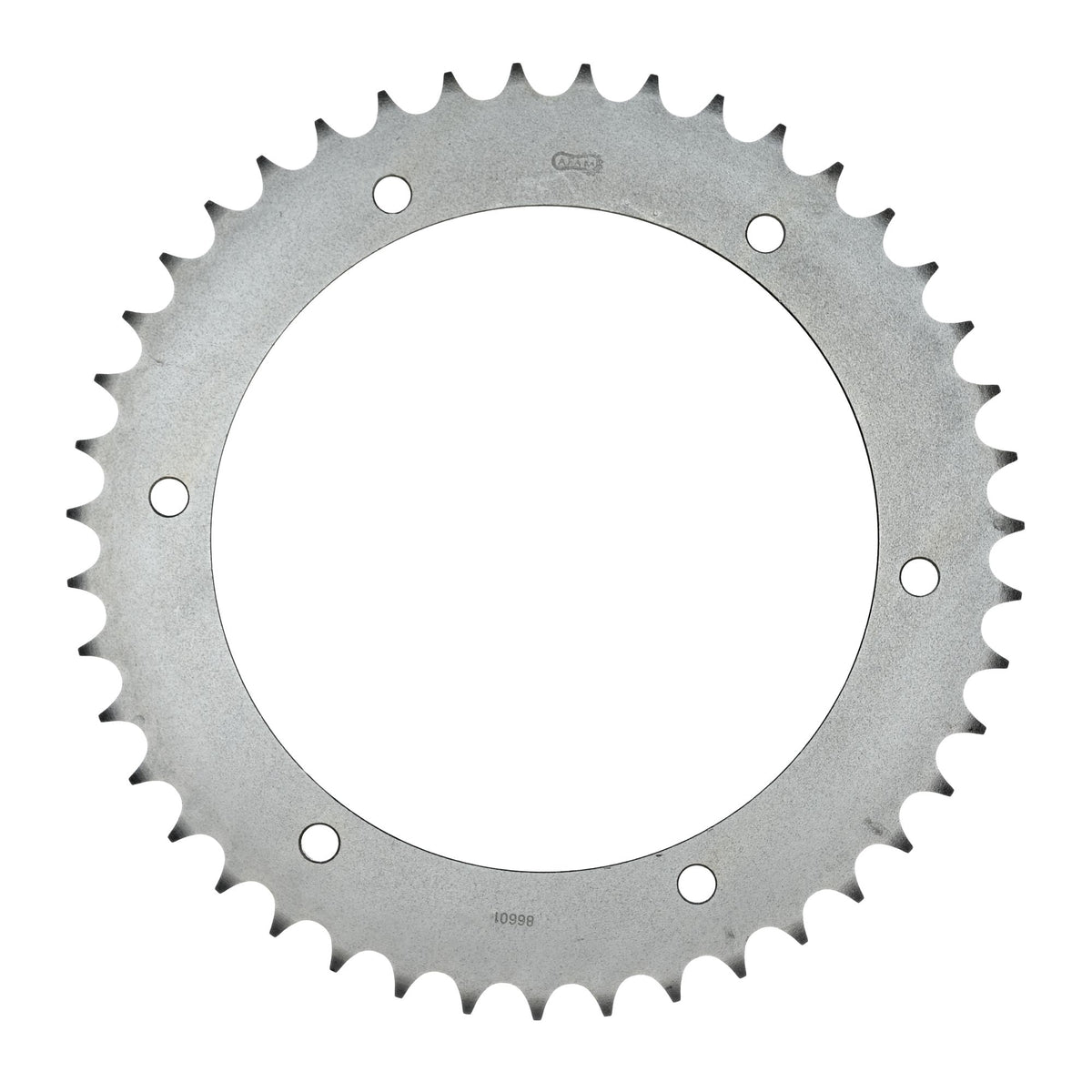

• Rear sprocket: AFAM steel sprocket #530 43 teeth - a86601.43
• Gear ratio front sprocket-chain-rear sprocket: 18-108-43

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-37637

Suitable for

Triumph over 1001 cc Speed Triple 1050 ABS 515NV 2011
Triumph over 1001 cc Speed Triple 1050 ABS 515NV 2012
Triumph over 1001 cc Speed Triple 1050 ABS 515NV 2013
Triumph over 1001 cc Speed Triple 1050 ABS 515NV 2014
Triumph over 1001 cc Speed Triple 1050 ABS 515NV 2015
