AFAM chain kit for Triumph Speed Triple 900 i 1998 530 XSR2G chain kit

AFAM chain kit for Triumph Speed Triple 900 i 1998 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Speed Triple 900 i T509 1998-1998

• Sprocket: AFAM sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

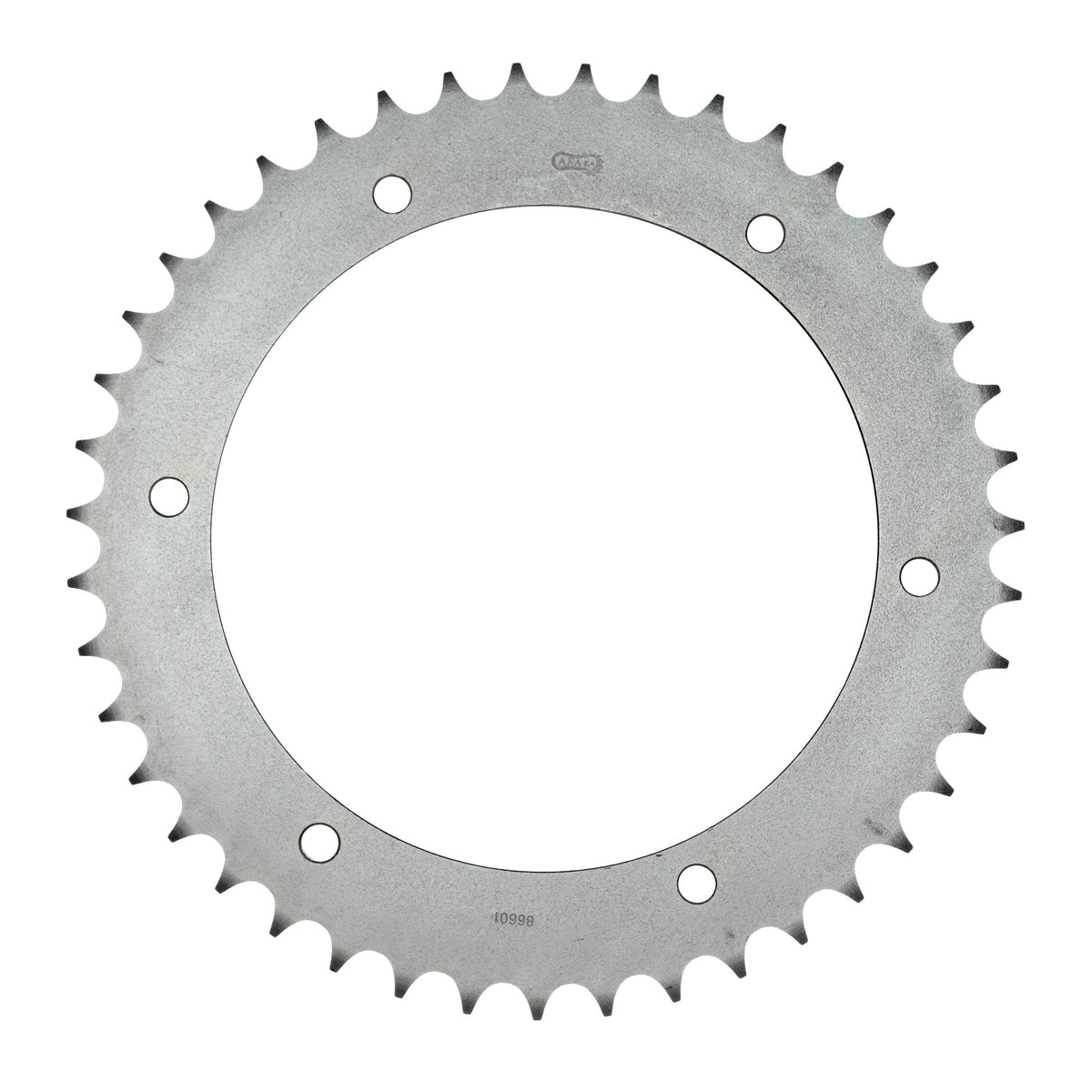

• Rear sprocket: AFAM STEEL rear sprocket #530 43 teeth - a86601.43
• Gear ratio sprocket-chain-rear sprocket: 19-108-43

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-29674

Suitable for

Triumph 751 - 1000 cc Speed Triple 900 i T509 1998
