AFAM chain kit for Triumph Speed Triple 955 i 99-01 530 XHR2G chain kit

AFAM chain kit for Triumph Speed Triple 955 i 99-01 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Speed Triple 955 i T509 1999-2001

• Sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

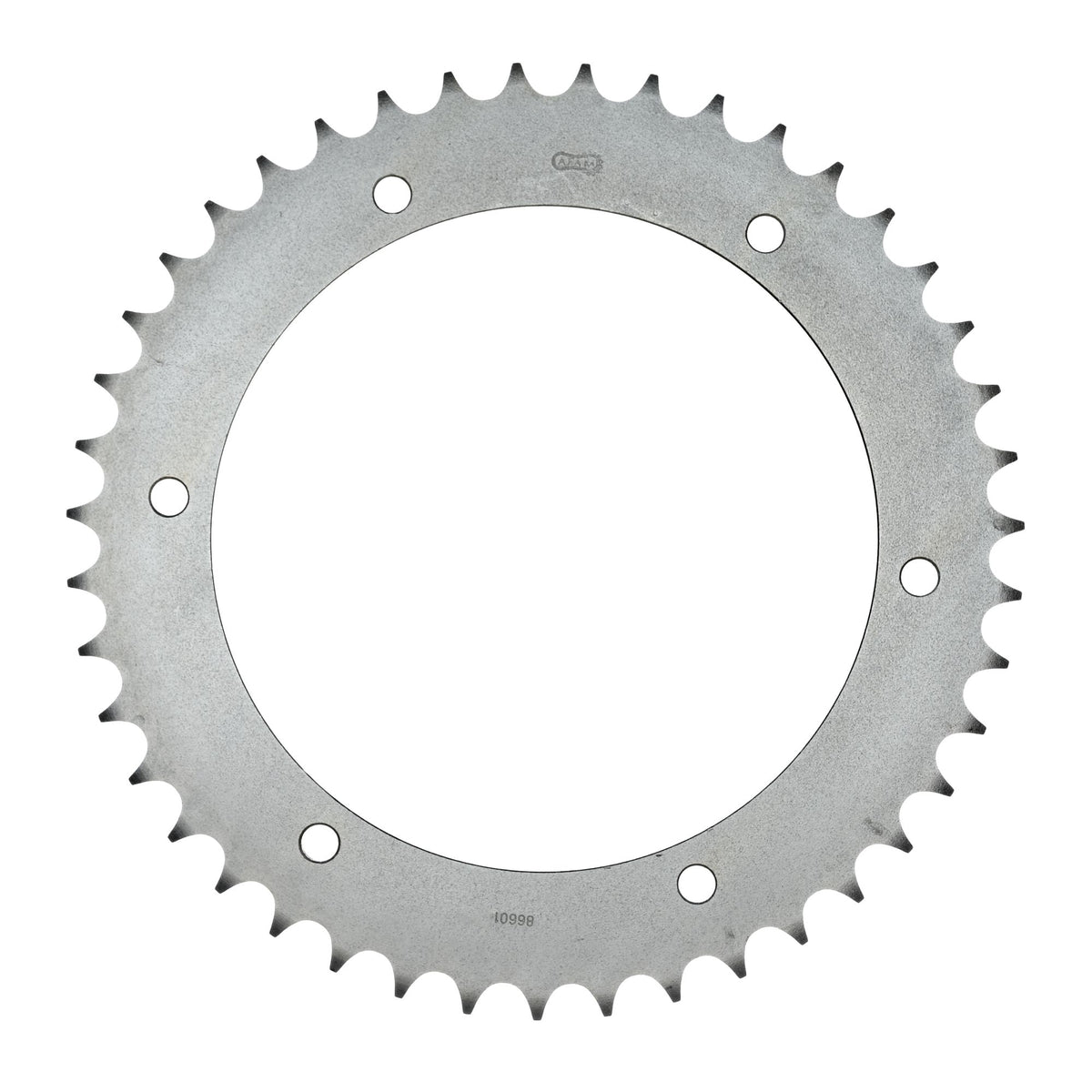

• Chainwheel: AFAM chainwheel STEEL #530 43 teeth - a86601.43
• Gear ratio sprocket-chain-chainwheel: 18-108-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-30001

Suitable for

Triumph 751 - 1000 cc Speed Triple 955 i T509 1999
Triumph 751 - 1000 cc Speed Triple 955 i T509 2000
Triumph 751 - 1000 cc Speed Triple 955 i T509 2001
