AFAM chain kit for Triumph Speed Triple 955 i 99-01 530 XSR2G chain kit

AFAM chain kit for Triumph Speed Triple 955 i 99-01 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Speed Triple 955 i T509 1999-2001

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

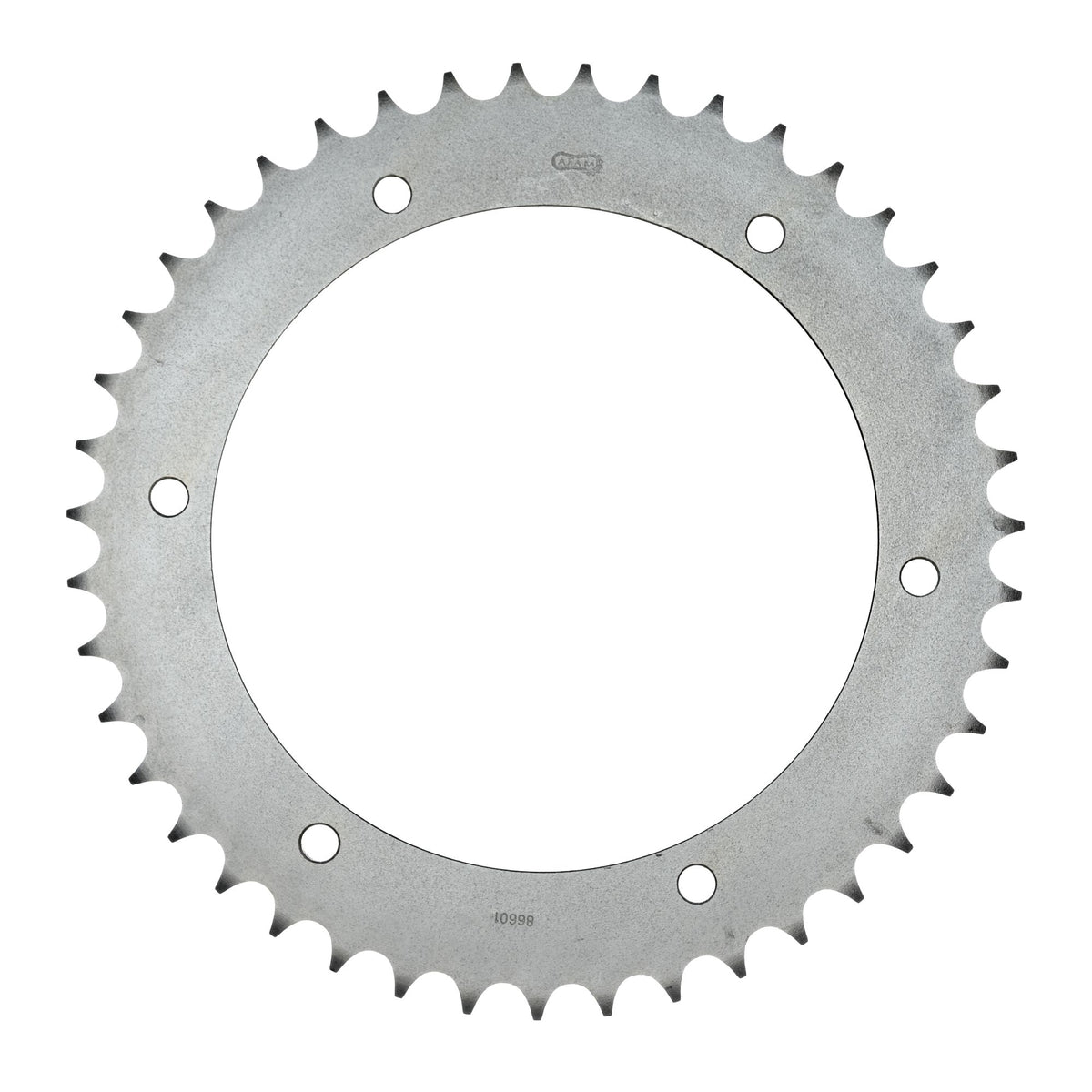

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86601.43
• Gear ratio front sprocket-chain-rear sprocket: 18-108-43

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52953

Suitable for

Triumph 751 - 1000 cc Speed Triple 955 i T509 1999
Triumph 751 - 1000 cc Speed Triple 955 i T509 2000
Triumph 751 - 1000 cc Speed Triple 955 i T509 2001
