AFAM chain kit for Triumph Speed Triple RR 22-24 525 XMR3 chain kit

AFAM Chain Kit for Triumph Speed Triple RR 22-24 525 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

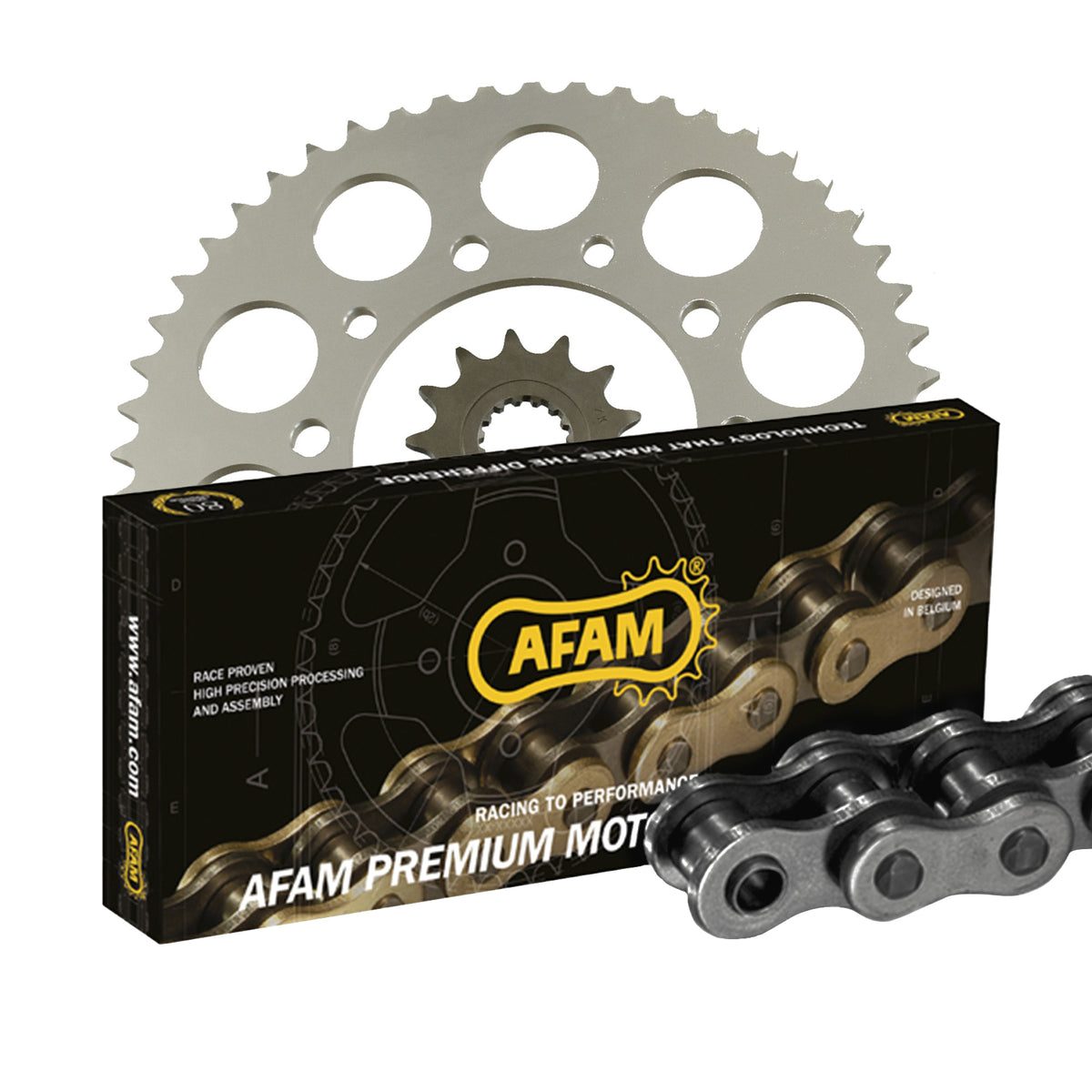

Components of the chain kit Triumph Speed Triple RR PB01 2022-2024

• Sprocket: AFAM sprocket #525 17 teeth - a88900.17
• Chain: AFAM chain 525 XMR3 Xs-ring 118 with rivet link - a525xmr3.118

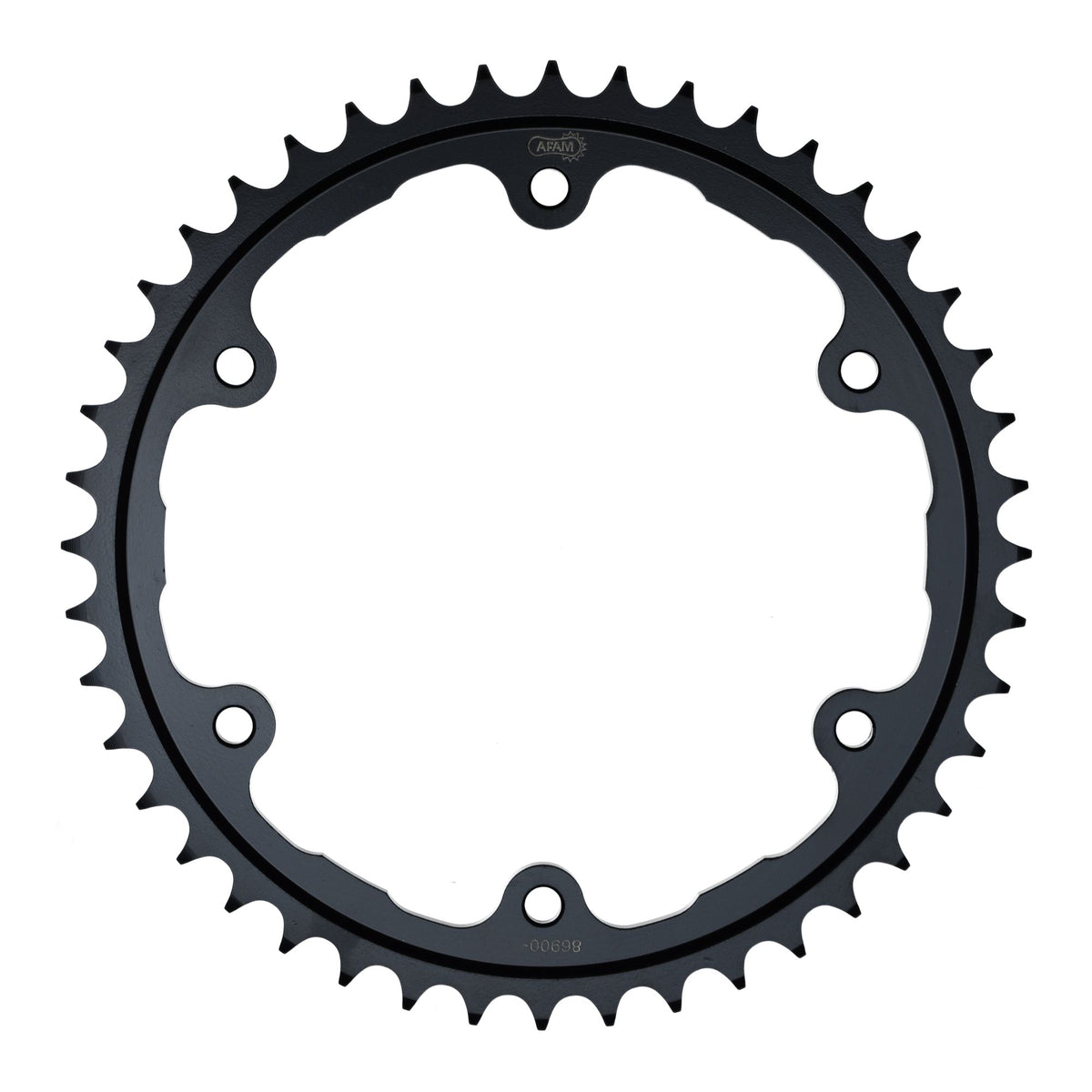

• Rear sprocket: AFAM rear sprocket STEEL #525 44 teeth - a86900.44
• Transmission ratio sprocket-chain-rear sprocket: 17-118-44

AFAM 525 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical data:
Pitch: 525
Pin length: 23.3 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.99 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78256

Suitable for

Triumph over 1001 cc Speed Triple RR PB01 2022
Triumph over 1001 cc Speed Triple RR PB01 2023
Triumph over 1001 cc Speed Triple RR PB01 2024
