AFAM chain kit for Triumph Speed Triple RS ABS 1050 18-21 530 XHR2G chain kit

AFAM chain kit for Triumph Speed Triple RS ABS 1050 18-21 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only for compatibility purposes!

Components of the chain kit Triumph Speed Triple RS ABS 1050 NN02 2018-2021

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 17 teeth - a88800.17
• Chain: AFAM chain 530 XHR2-G Xs-Ring 108 w. rivet master link - a530xhr2.g.108

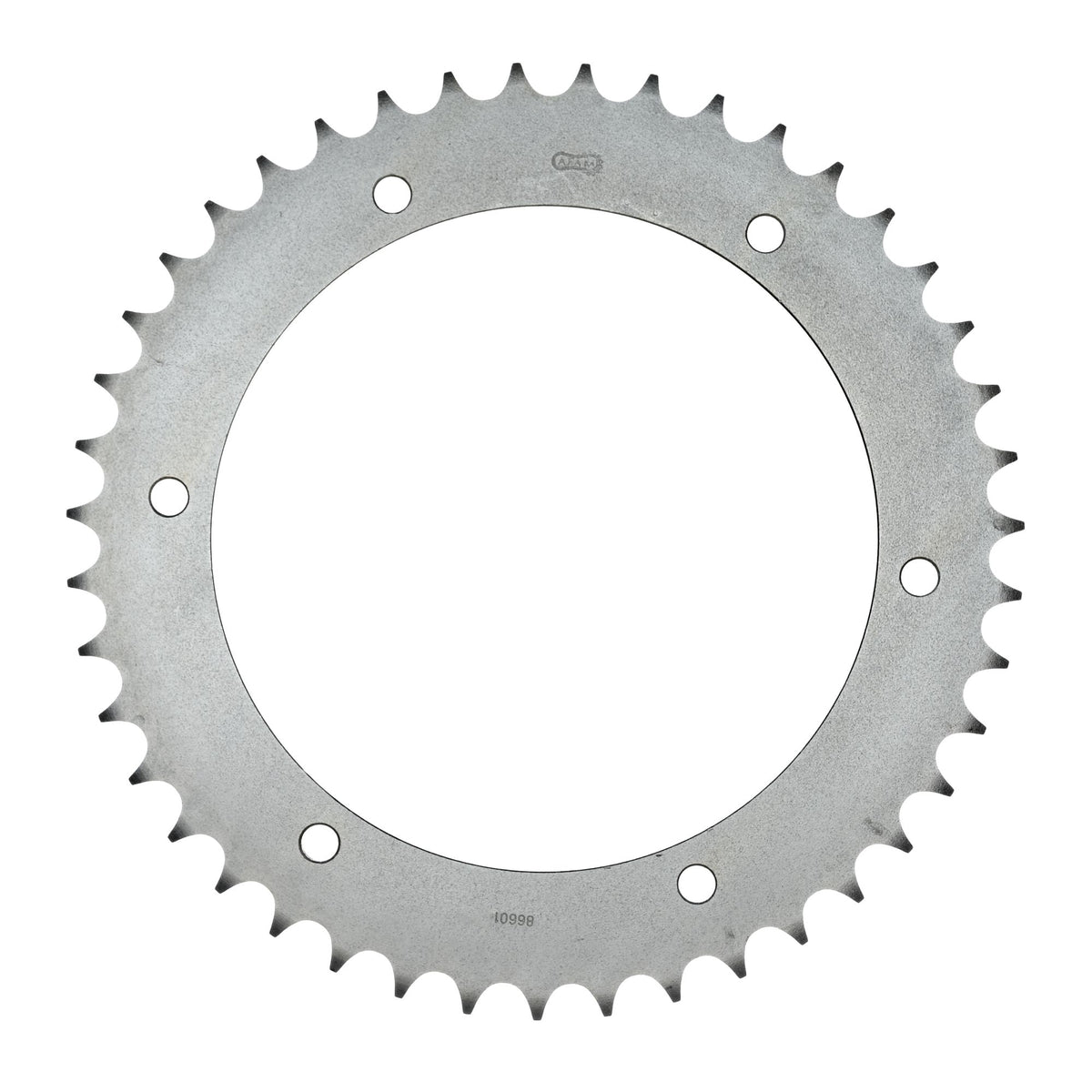

• Rear sprocket: Esjot rear sprocket 86601-44 STEEL #530 44 teeth - a86601.44
• Gear ratio front sprocket-chain-rear sprocket: 17-108-44

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52594

Suitable for

Triumph over 1001 cc Speed Triple RS ABS 1050 NN02 2018
Triumph over 1001 cc Speed Triple RS ABS 1050 NN02 2019
Triumph over 1001 cc Speed Triple RS ABS 1050 NN02 2020
Triumph over 1001 cc Speed Triple RS ABS 1050 NN02 2021
