AFAM Chain Kit for Triumph Speed Triple RS ABS 1200 2025 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Speed Triple RS ABS 1200 PB20 2025-2025

• Front sprocket: AFAM front sprocket #525 17 teeth - a88900.17
• Chain: AFAM chain 525 XHR3-G Xs-Ring 118 with rivet link - a525xhr3.g.118

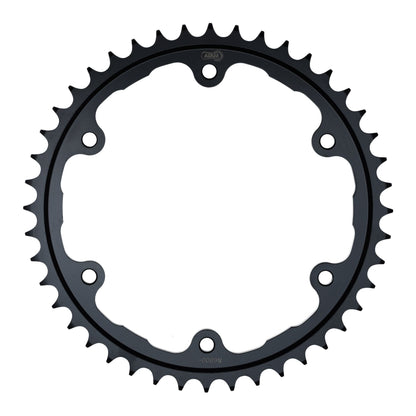

• Rear sprocket: AFAM rear sprocket STEEL #525 44 teeth - a86900.44
• Gear ratio front sprocket-chain-rear sprocket: 17-118-44

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-78200

Suitable for

Triumph over 1001 cc Speed Triple RS ABS 1200 PB20 2025
