AFAM chain kit for Triumph Speed Triple RS ABS 1200 2025 525 XSR2G chain kit

AFAM Chain Kit for Triumph Speed Triple RS ABS 1200 2025 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Triumph Speed Triple RS ABS 1200 PB20 2025-2025

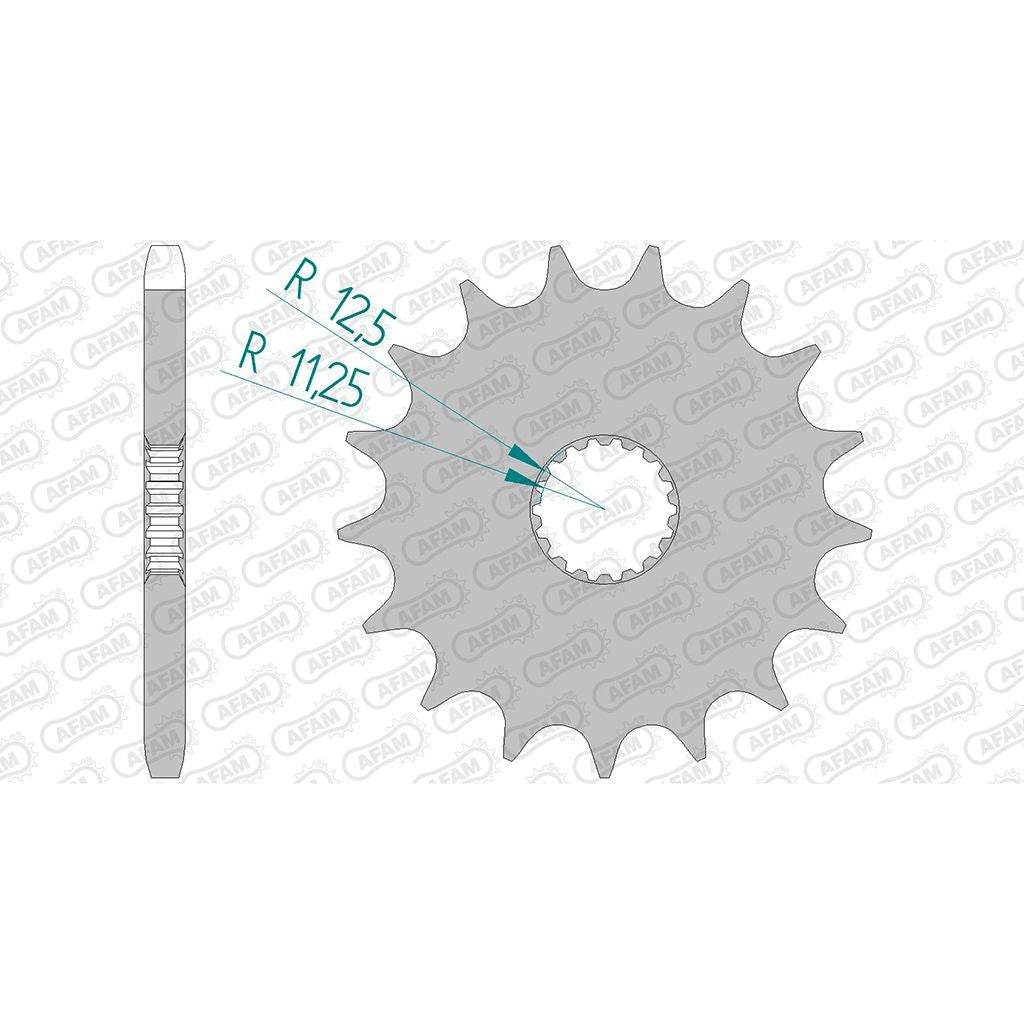

• Front sprocket: AFAM front sprocket #525 17 teeth - a88900.17
• Chain: AFAM chain 525 XSR2-G Xs-Ring 118 with rivet link - a525xsr2.g.118

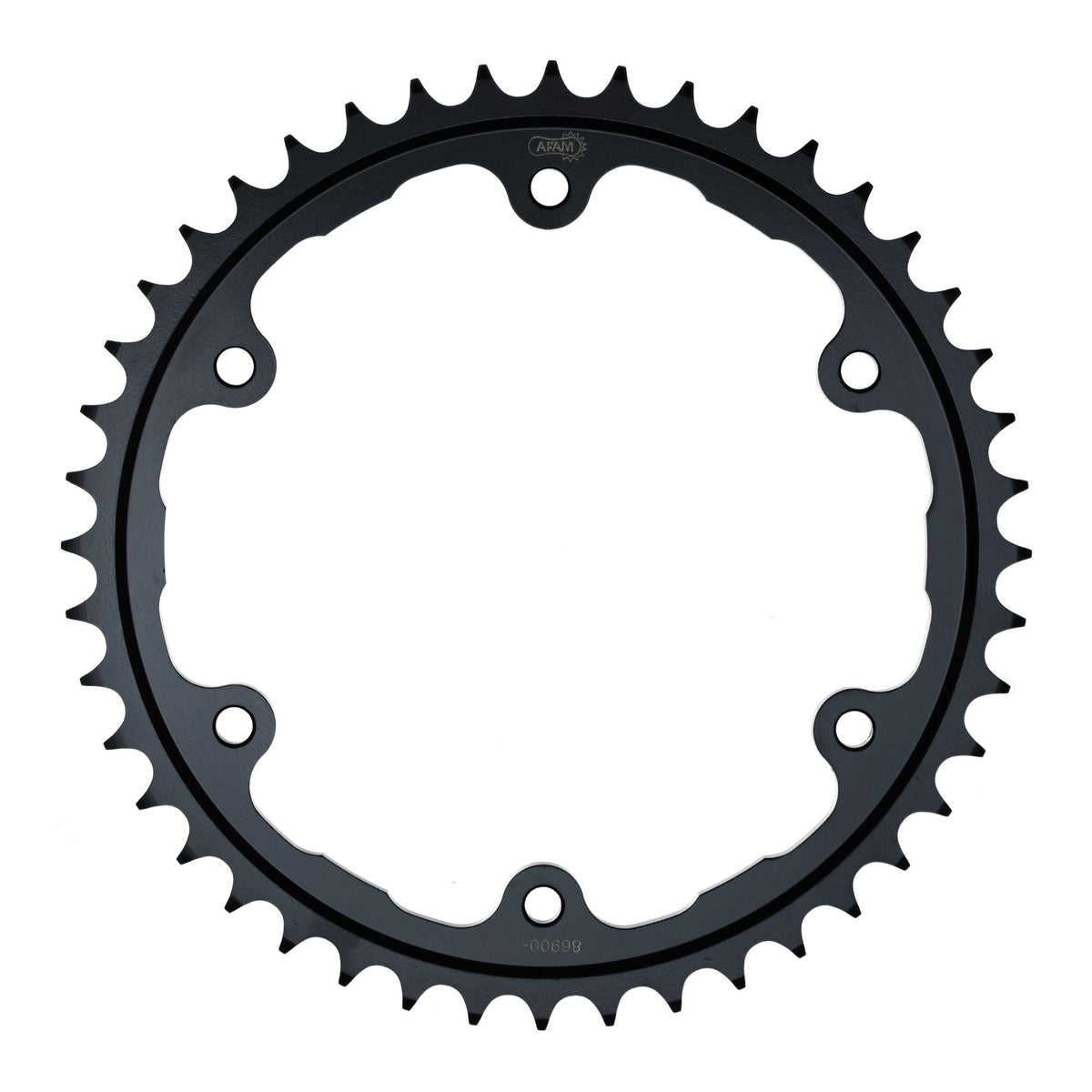

• Rear sprocket: AFAM rear sprocket STEEL #525 44 teeth - a86900.44
• Gear ratio front sprocket-chain-rear sprocket: 17-118-44

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The use of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78206

Fits

Triumph over 1001 cc Speed Triple RS ABS 1200 PB20 2025
