AFAM chain kit for Triumph Speed Triple RS ABS 1200 21-24 525 XHR3G chain kit

AFAM Chain Kit for Triumph Speed Triple RS ABS 1200 21-24 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless stated otherwise: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit Triumph Speed Triple RS ABS 1200 PB01 2021-2024

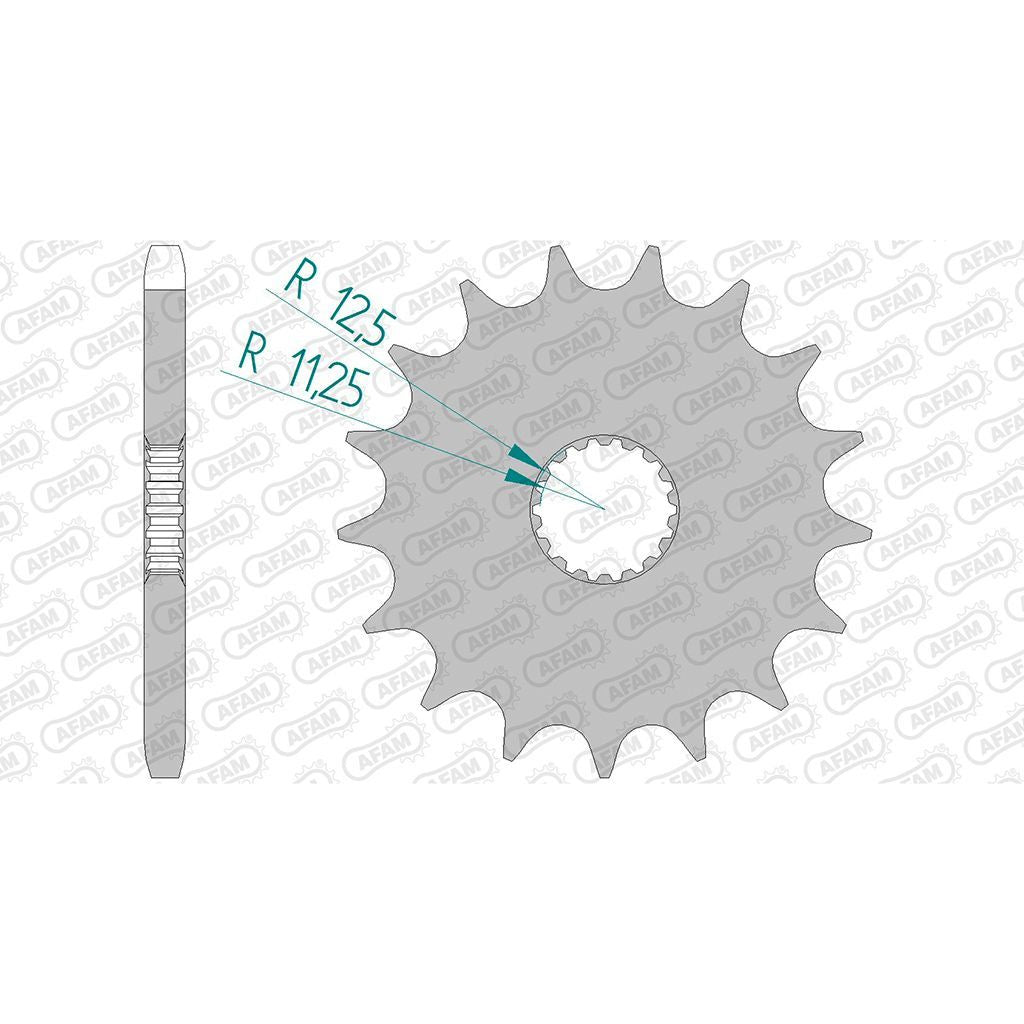

• Sprocket: AFAM sprocket #525 17 teeth - a88900.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 118 with rivet link - a525xhr3.g.118

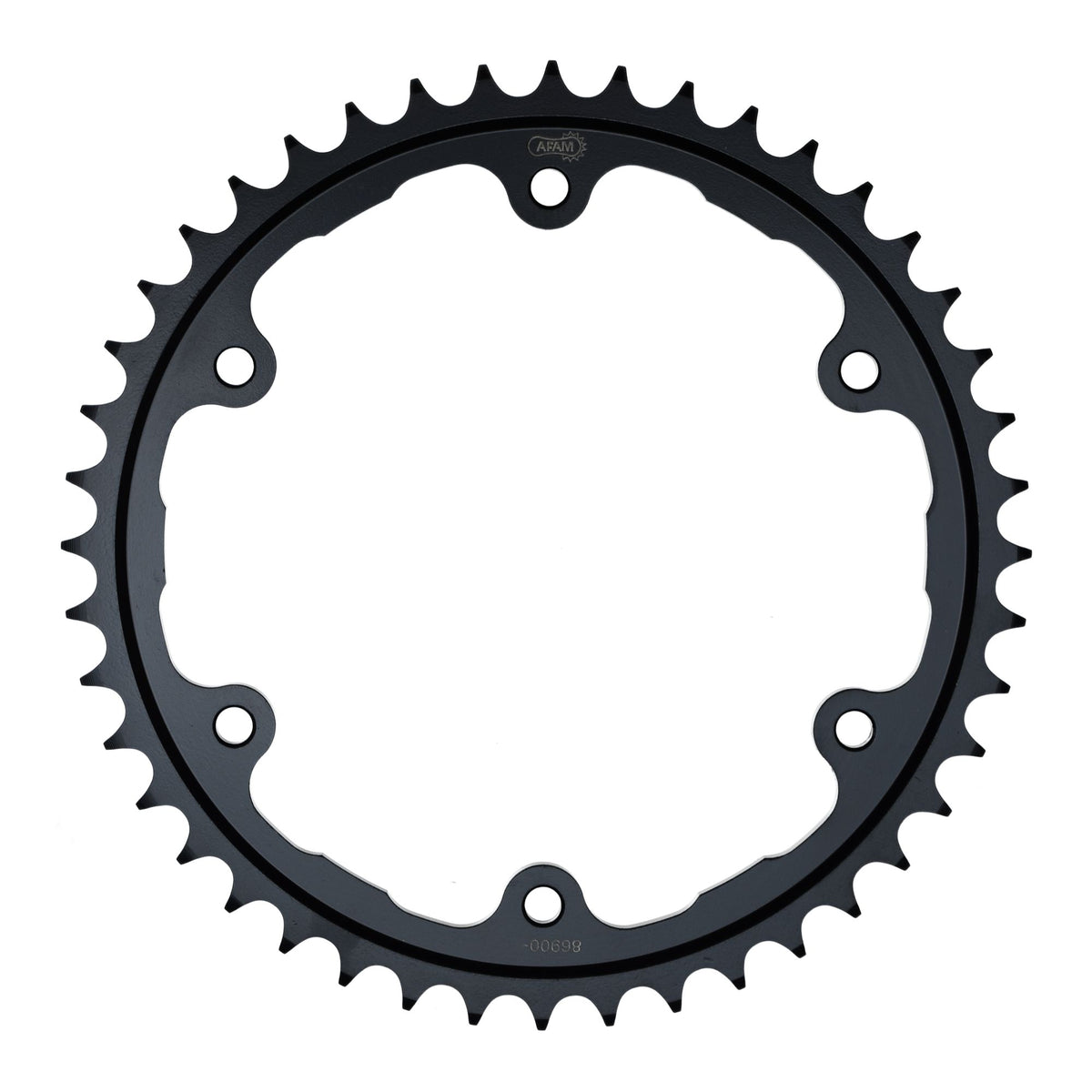

• Rear sprocket: AFAM STEEL rear sprocket #525 44 teeth - a86900.44
• Gear ratio sprocket-chain-rear sprocket: 17-118-44

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless stated otherwise: The goods offered are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78205

Suitable for

Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2021
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2022
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2023
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2024
