AFAM chain kit for Triumph Speed Triple RS ABS 1200 21-24 525 XMR3 chain kit

AFAM Chain Kit for Triumph Speed Triple RS ABS 1200 21-24 525 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

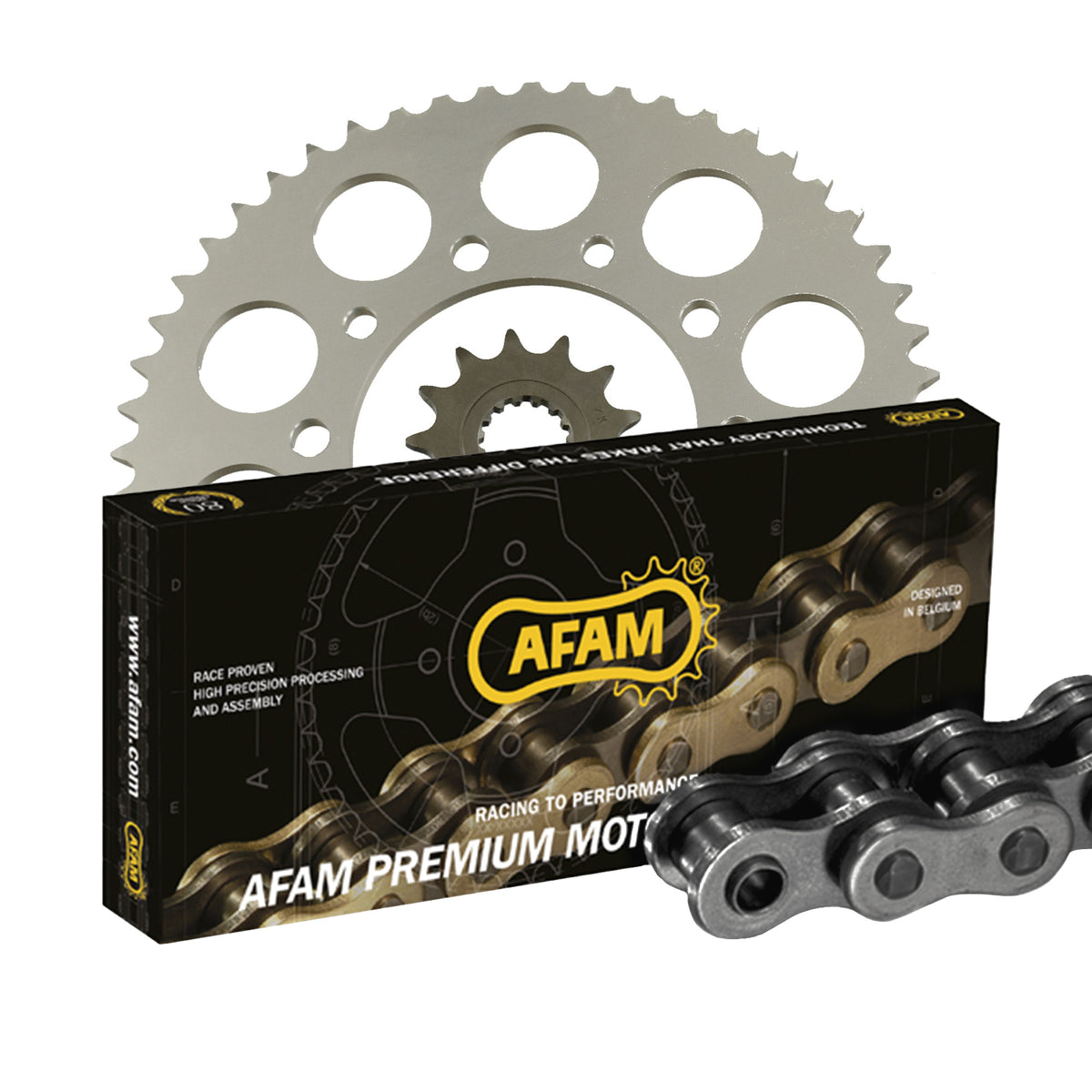

Components of the chain kit Triumph Speed Triple RS ABS 1200 PB01 2021-2024

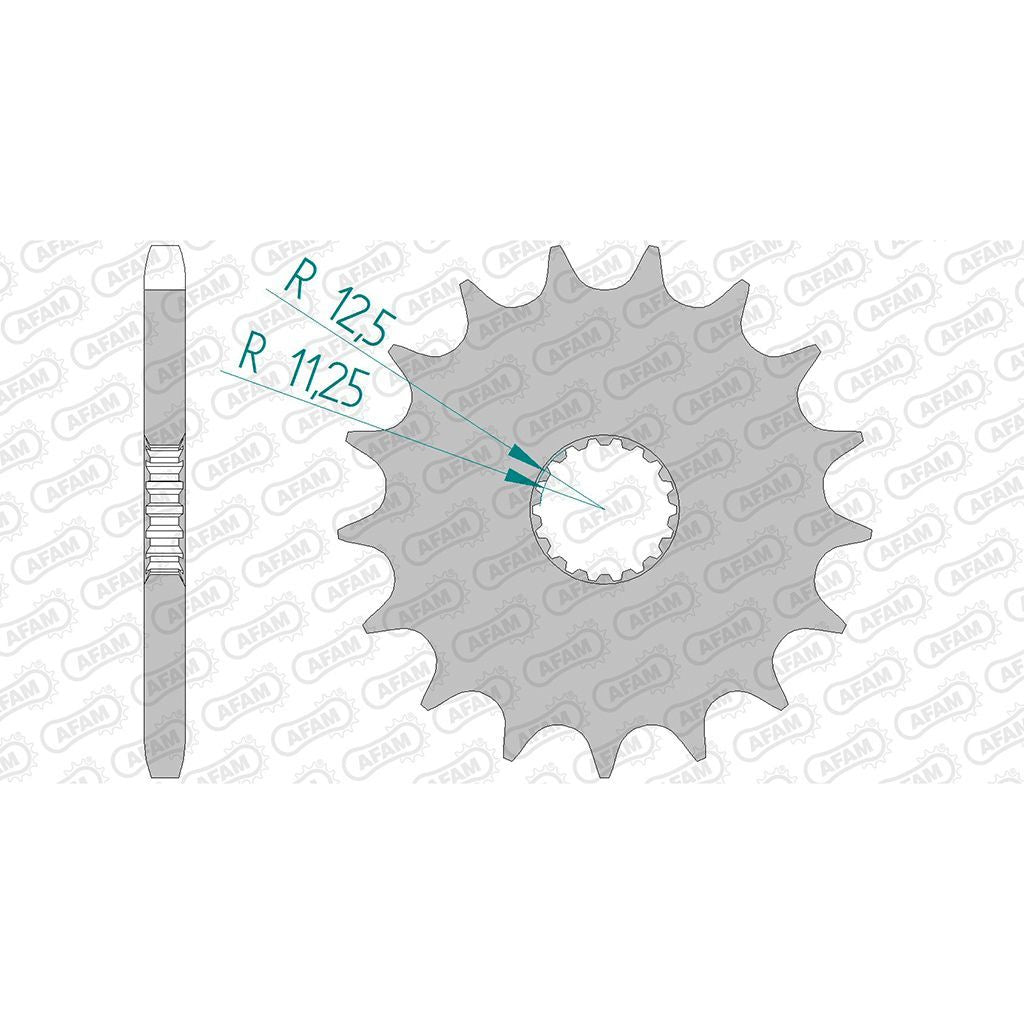

• Sprocket: AFAM Sprocket #525 17 teeth - a88900.17
• Chain: AFAM Chain 525 XMR3 Xs-Ring 118 w. rivet link - a525xmr3.118

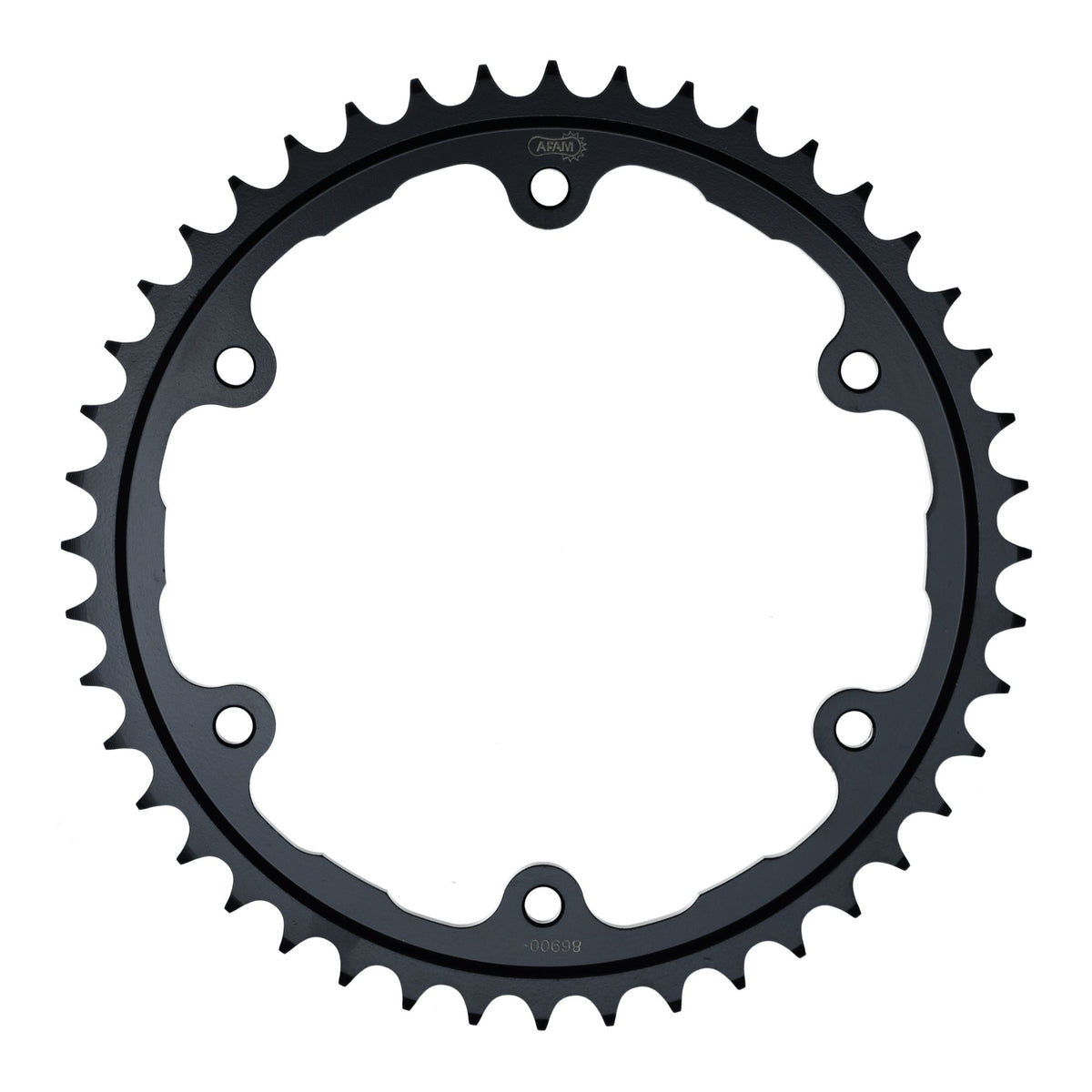

• Rear Sprocket: AFAM Rear Sprocket STEEL #525 44 teeth - a86900.44
• Gear ratio sprocket-chain-rear sprocket: 17-118-44

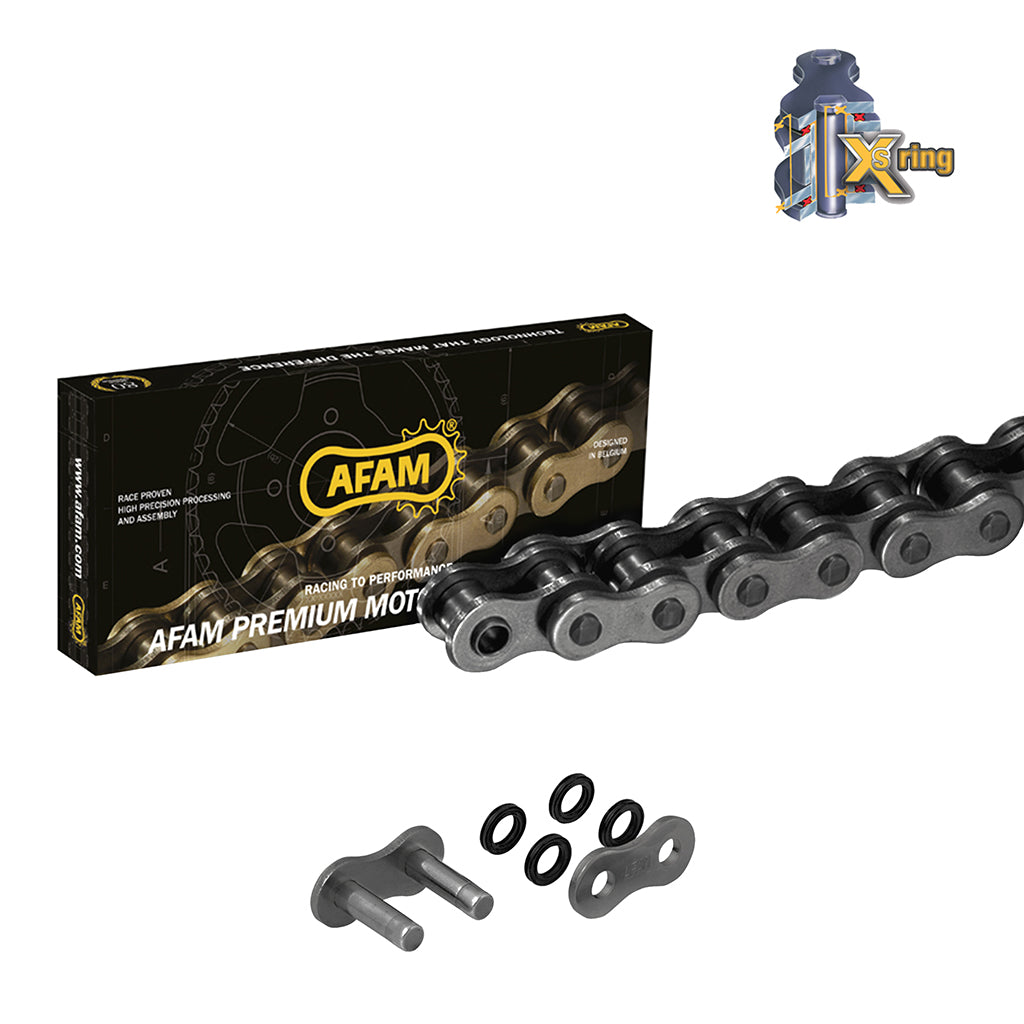

AFAM 525 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical data:
Pitch: 525
Pin length: 23.3 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.99 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78216

Suitable for

Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2021
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2022
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2023
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2024
