AFAM chain kit for Triumph Speed Triple RS ABS 1200 21-24 525 XSR2G chain kit

AFAM Chain Kit for Triumph Speed Triple RS ABS 1200 21-24 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Speed Triple RS ABS 1200 PB01 2021-2024

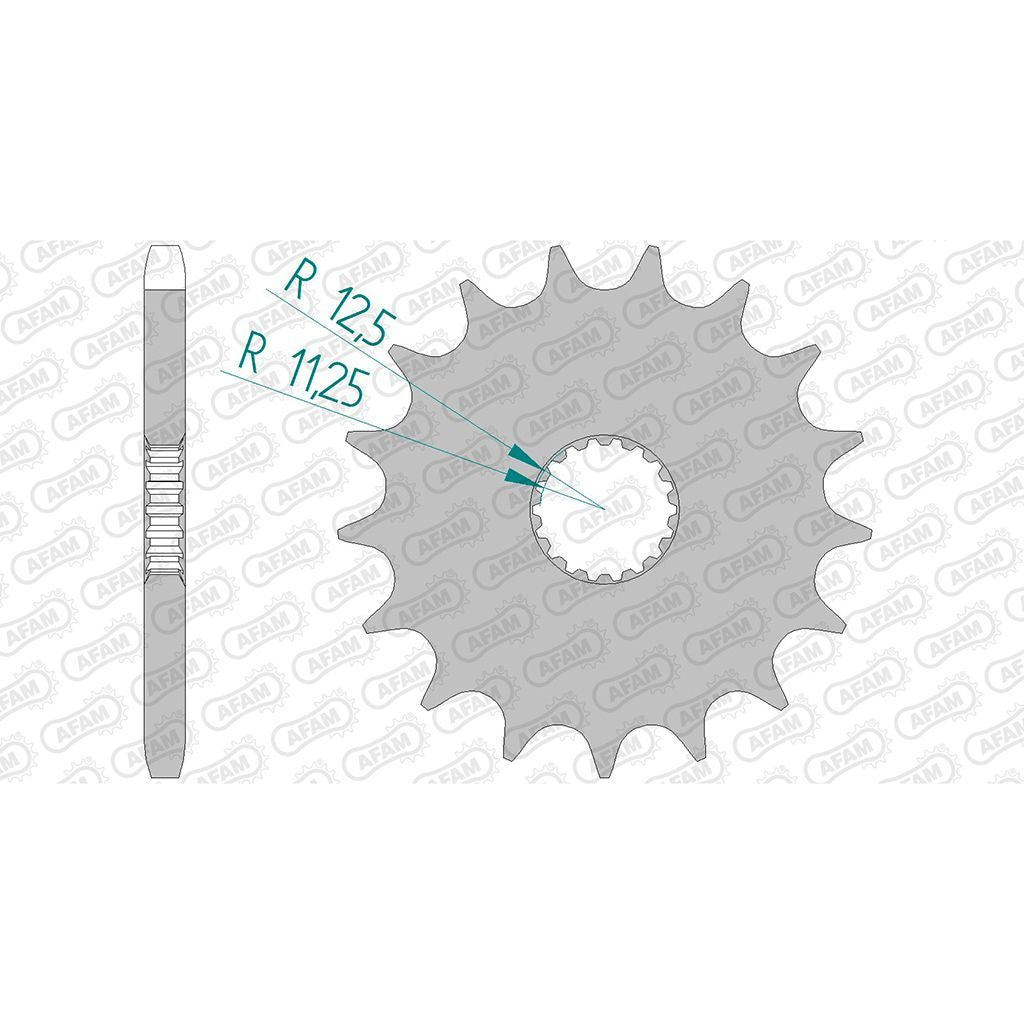

• Sprocket: AFAM sprocket #525 17 teeth - a88900.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 118 with rivet link - a525xsr2.g.118

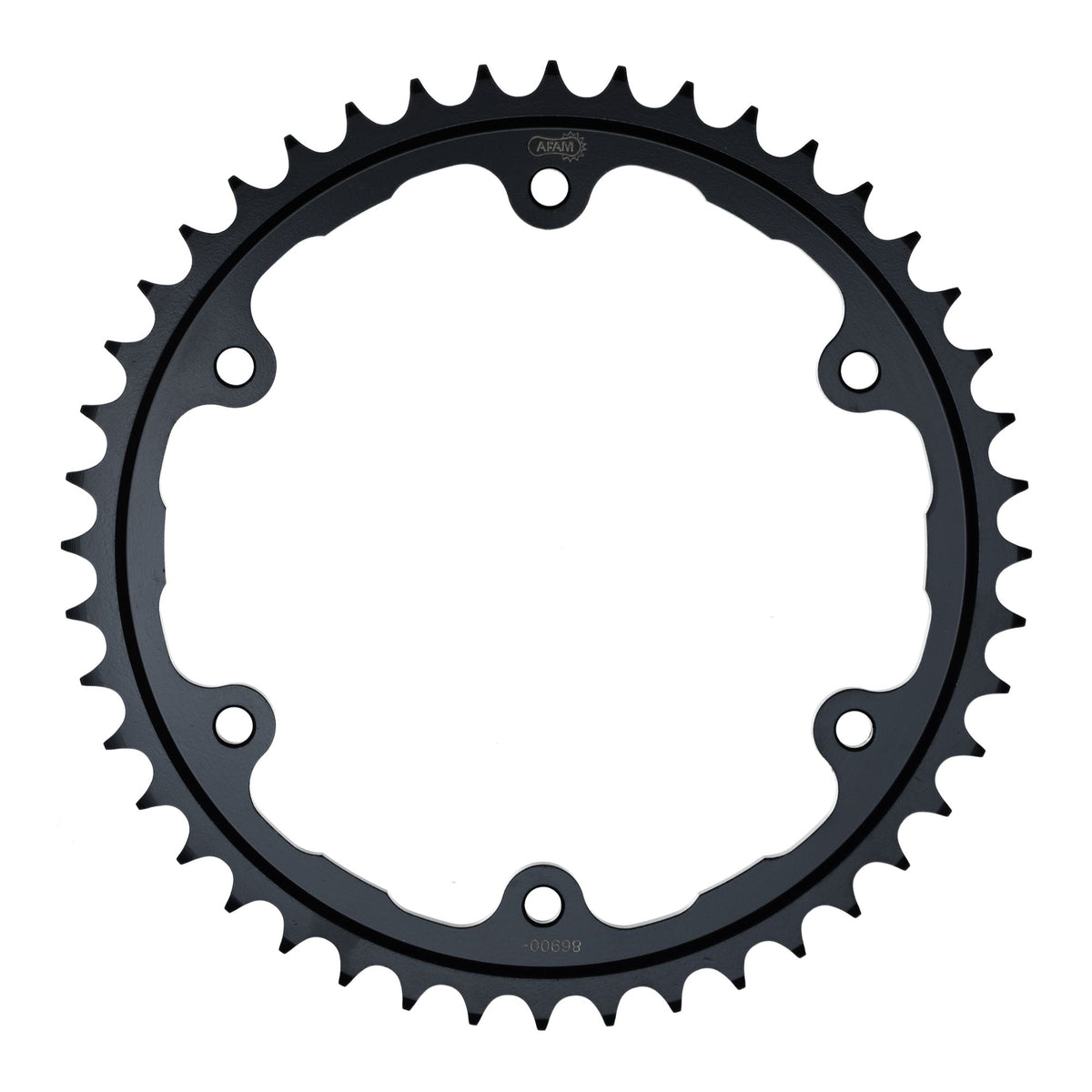

• Rear sprocket: AFAM STEEL rear sprocket #525 44 teeth - a86900.44
• Gear ratio sprocket-chain-rear sprocket: 17-118-44

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78209

Fits

Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2021
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2022
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2023
Triumph over 1001 cc Speed Triple RS ABS 1200 PB01 2024
