AFAM chain kit for Triumph Speed Triple S ABS 1050 19-21 530 XSR2G chain kit

AFAM chain kit for Triumph Speed Triple S ABS 1050 19-21 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Speed Triple S ABS 1050 NN02A 2019-2021

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 17 teeth - a88800.17
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

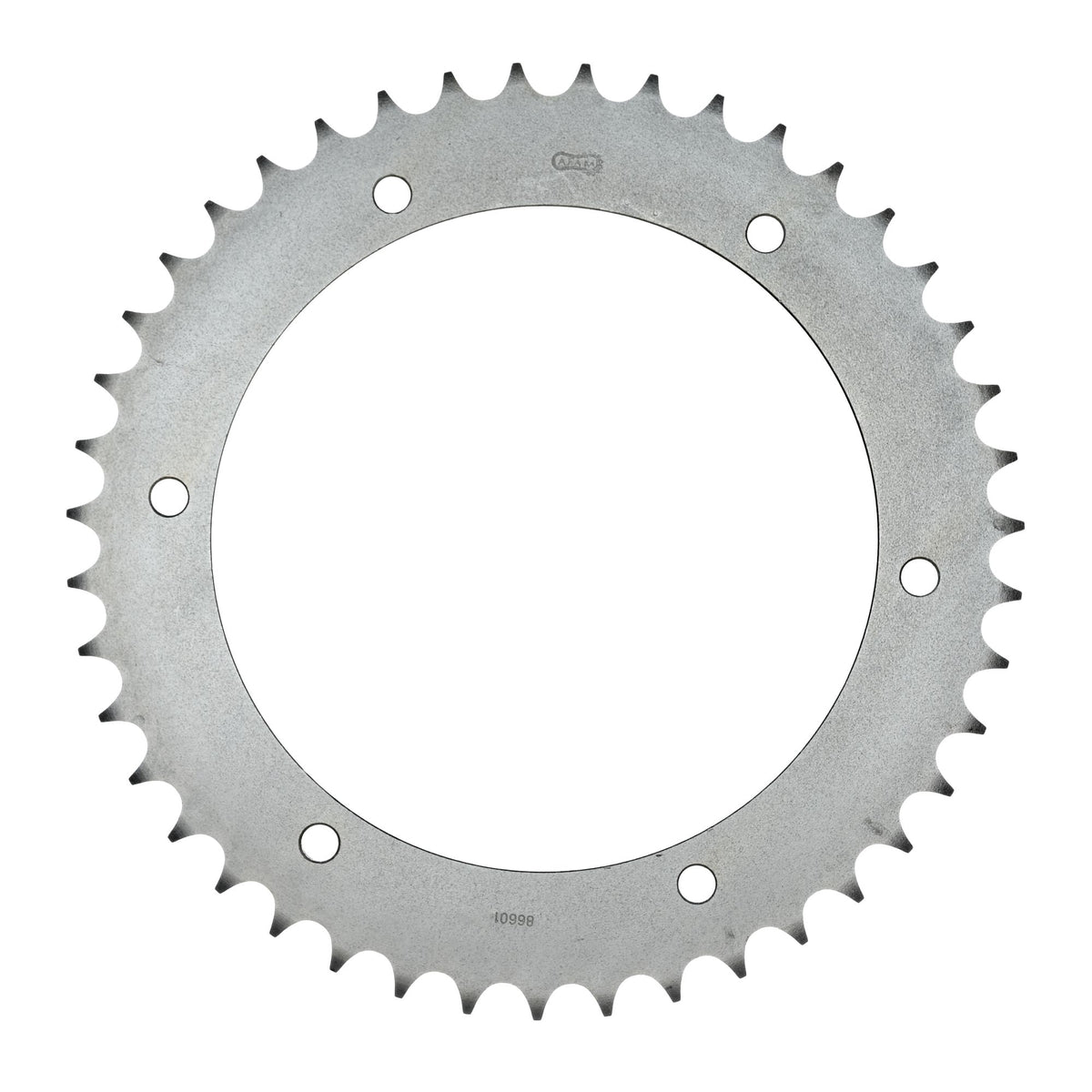

• Rear sprocket: Esjot rear sprocket 86601-44 STEEL #530 44 teeth - a86601.44
• Gear ratio front sprocket-chain-rear sprocket: 17-108-44

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1100 cc / street and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-38669

Suitable for

Triumph over 1001 cc Speed Triple S ABS 1050 NN02A 2019
Triumph over 1001 cc Speed Triple S ABS 1050 NN02A 2020
Triumph over 1001 cc Speed Triple S ABS 1050 NN02A 2021
