AFAM chain kit for Triumph Speed Twin 1200 ABS 2025 525 XSR2G chain kit

AFAM chain kit for Triumph Speed Twin 1200 ABS 2025 525 XSR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Speed Twin 1200 ABS DD50 2025-2025 chain kit

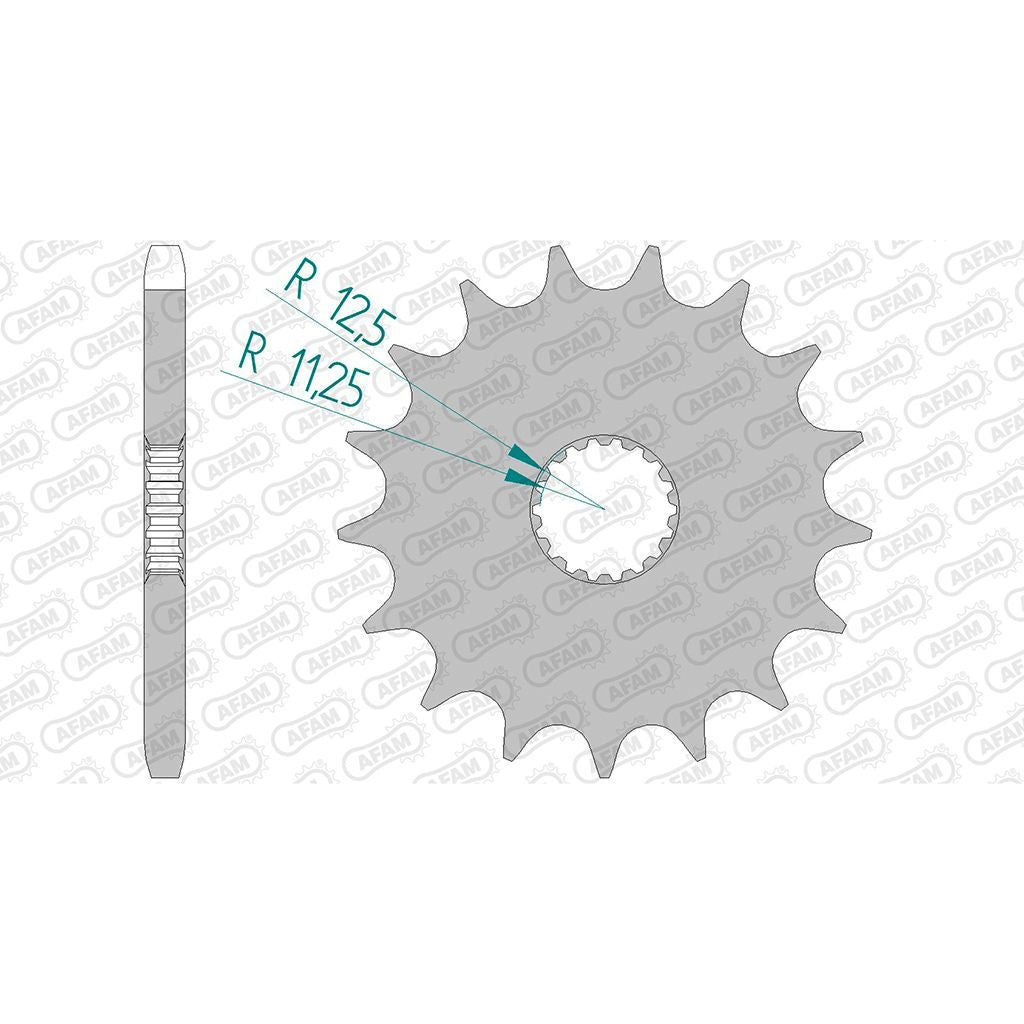

• Front sprocket: AFAM sprocket #525 16 teeth - a88900.16
• Chain: AFAM chain 525 XSR2-G Xs-Ring 102 with rivet link - a525xsr2.g.102

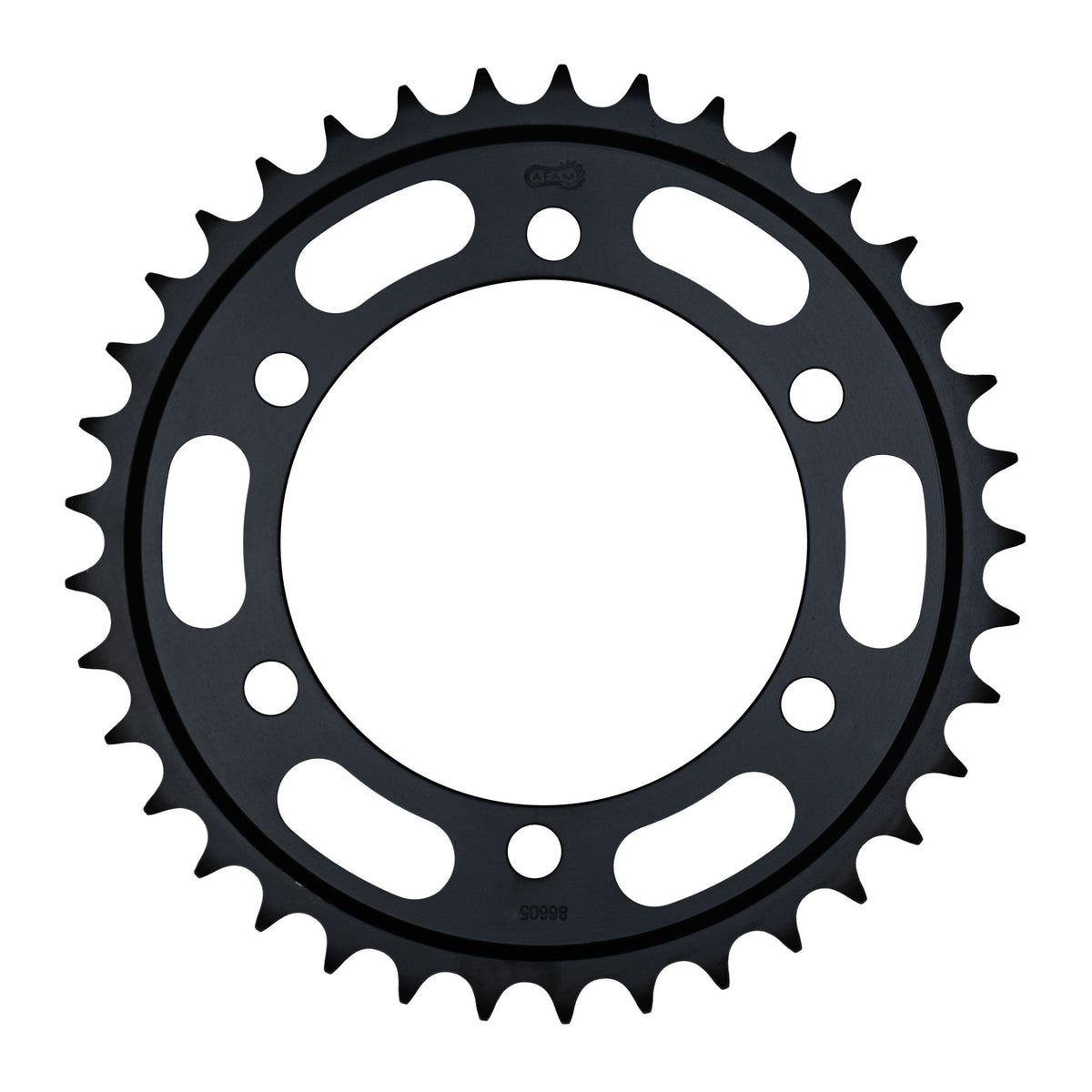

• Rear sprocket: AFAM sprocket STEEL #525 42 teeth - a86605.42
• Gear ratio sprocket-chain-rear sprocket: 16-102-42

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-78232

Suitable for

Triumph over 1001 cc Speed Twin 1200 ABS DD50 2025
