AFAM chain kit for Triumph Speedmaster 865 2015 520 XMR3 chain kit

AFAM Chain Kit for Triumph Speedmaster 865 2015 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Triumph Speedmaster 865 986ML2 2015-2015 check series with 520 chain pitch on vehicle

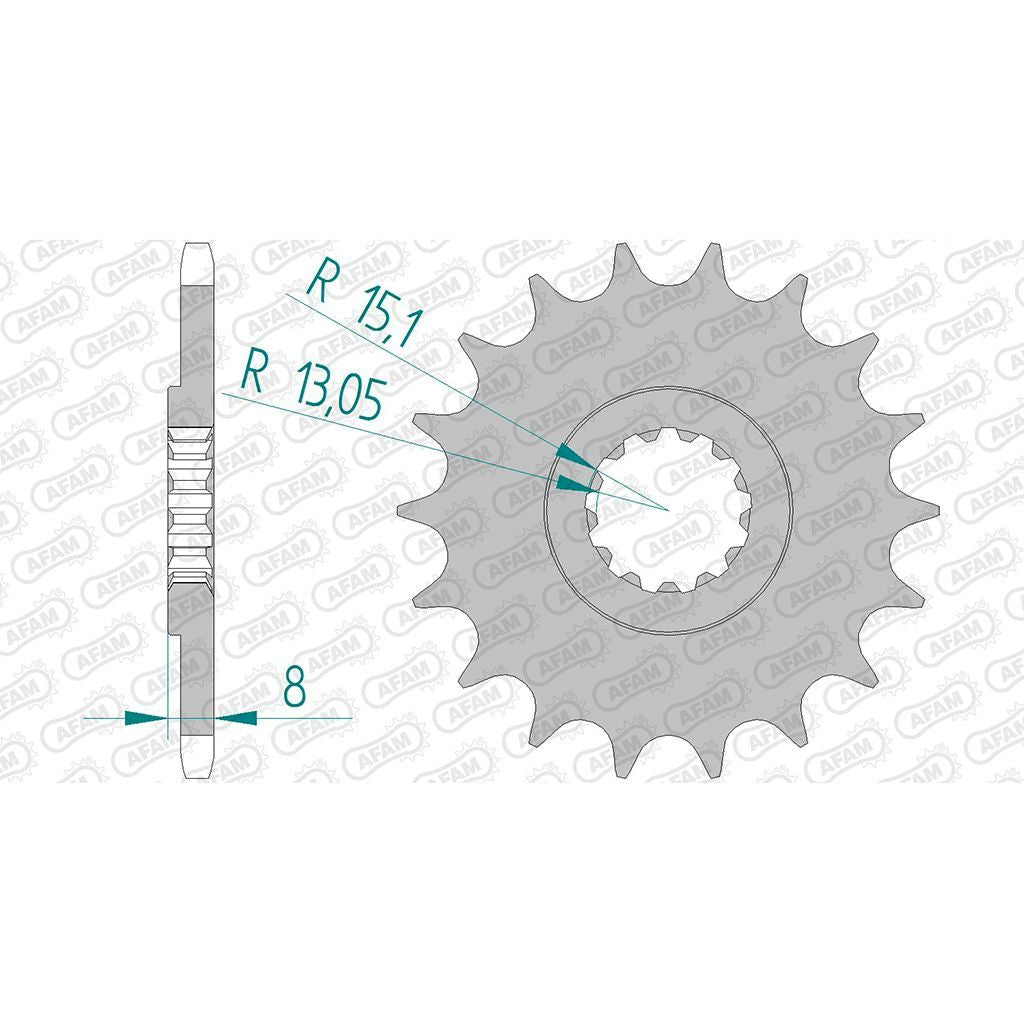

• Front sprocket: AFAM front sprocket #520 18 teeth - a88802.18

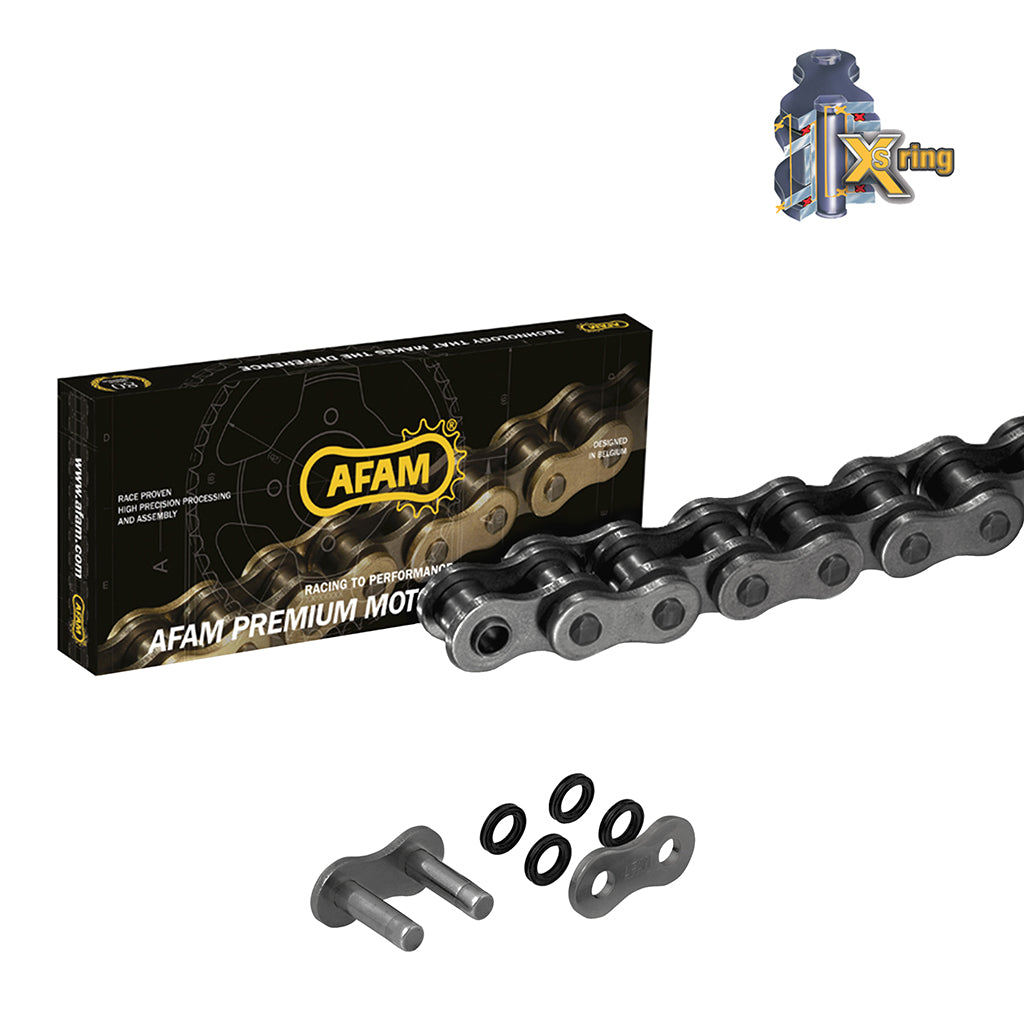

• Chain: AFAM chain 520 XMR3 Xs-ring 112 with rivet link - a520xmr3.112
• Rear sprocket: AFAM STEEL rear sprocket #520 42 teeth - a86609.42
• Gear ratio front sprocket-chain-rear sprocket: 18-112-42 check series with 520 chain pitch on vehicle

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52848

Fits

Triumph 751 - 1000 cc Speedmaster 865 986ML2 2015
