AFAM chain kit for Triumph Speedmaster 865 2015 520 XSRG chain kit

AFAM Chain Kit for Triumph Speedmaster 865 2015 520 XSRG Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used only for compatibility representation!

Components of the chain kit Triumph Speedmaster 865 986ML2 2015-2015 check on vehicle stock with 520 chain pitch

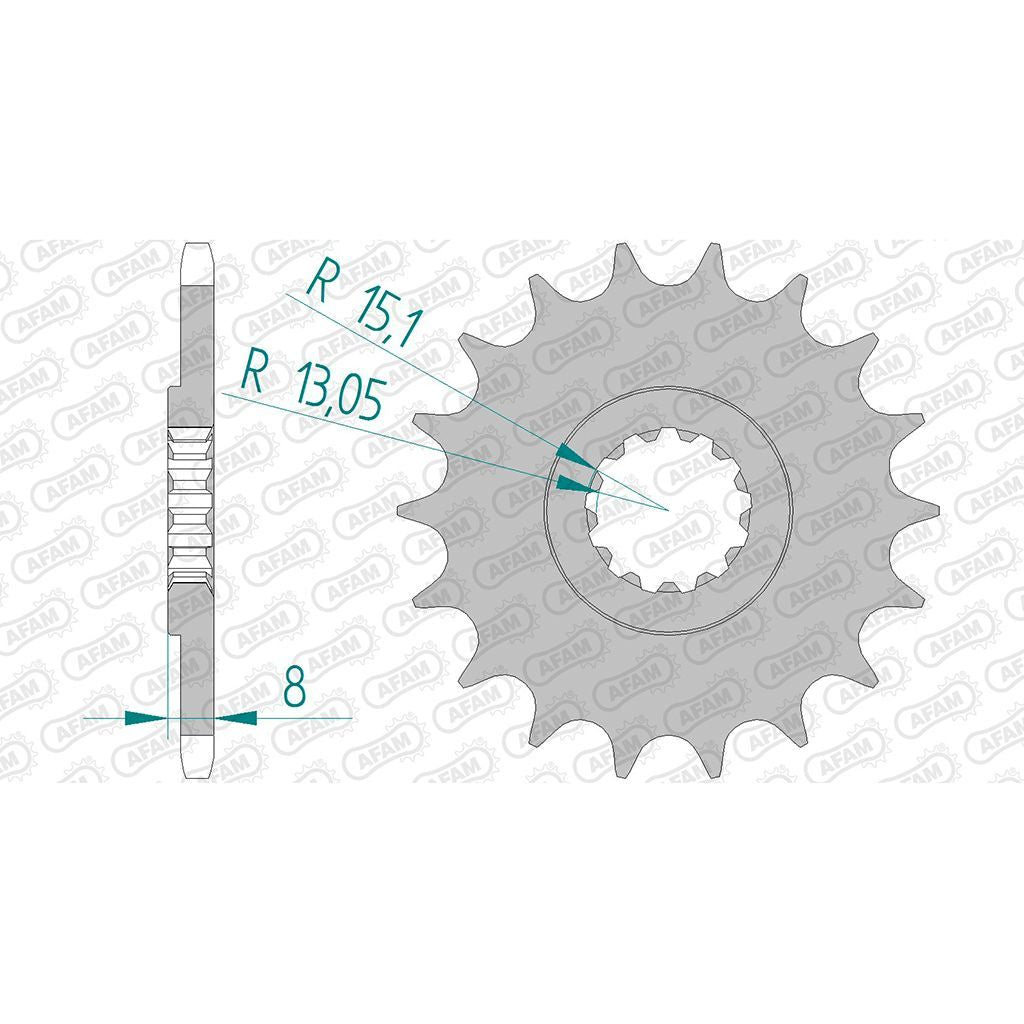

• Sprocket: AFAM sprocket #520 18 teeth - a88802.18
• Chain: AFAM chain 520 XSR-G Xs-Ring 112 w. rivet link - a520xsr.g.112

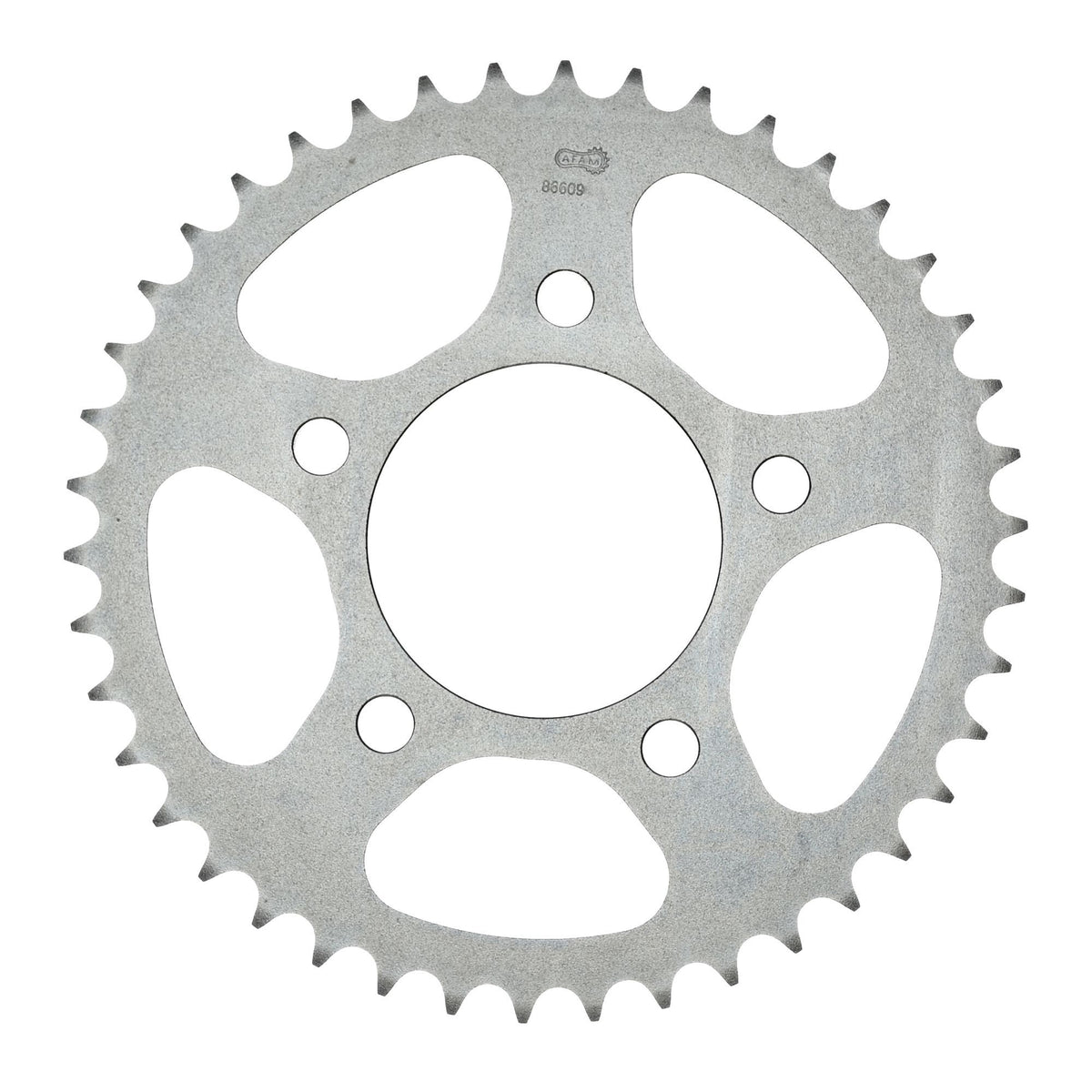

• Chainwheel: AFAM chainwheel STEEL #520 42 teeth - a86609.42
• Gear ratio sprocket-chain-chainwheel: 18-112-42 check on vehicle stock with 520 chain pitch

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless stated otherwise: The offered goods are accessory/spare parts from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-17513

Suitable for

Triumph 751 - 1000 cc Speedmaster 865 986ML2 2015
