AFAM chain kit for Triumph Speedmaster 865 2017 520 XHR2G chain kit

AFAM chain kit for Triumph Speedmaster 865 2017 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Triumph Speedmaster 865 986ML2 2017-2017

• Front sprocket: AFAM front sprocket #520 18 teeth - a88802.18
• Chain: AFAM chain 520 XHR2-G Xs-ring 112 with rivet link - a520xhr2.g.112

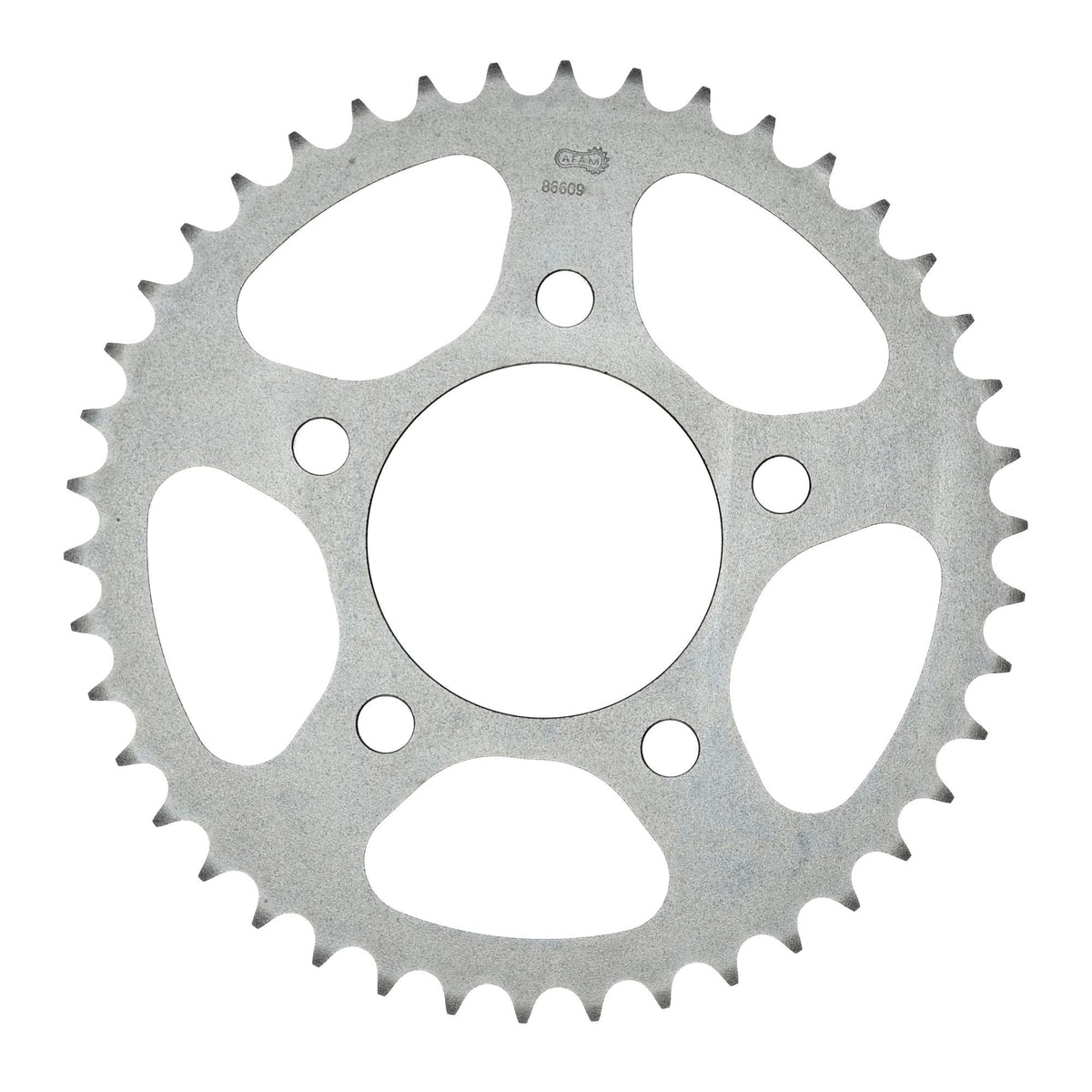

• Rear sprocket: AFAM rear sprocket STEEL #520 42 teeth - a86609.42
• Gear ratio front sprocket-chain-rear sprocket: 18-112-42

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51262

Fits

Triumph 751 - 1000 cc Speedmaster 865 986ML2 2017
